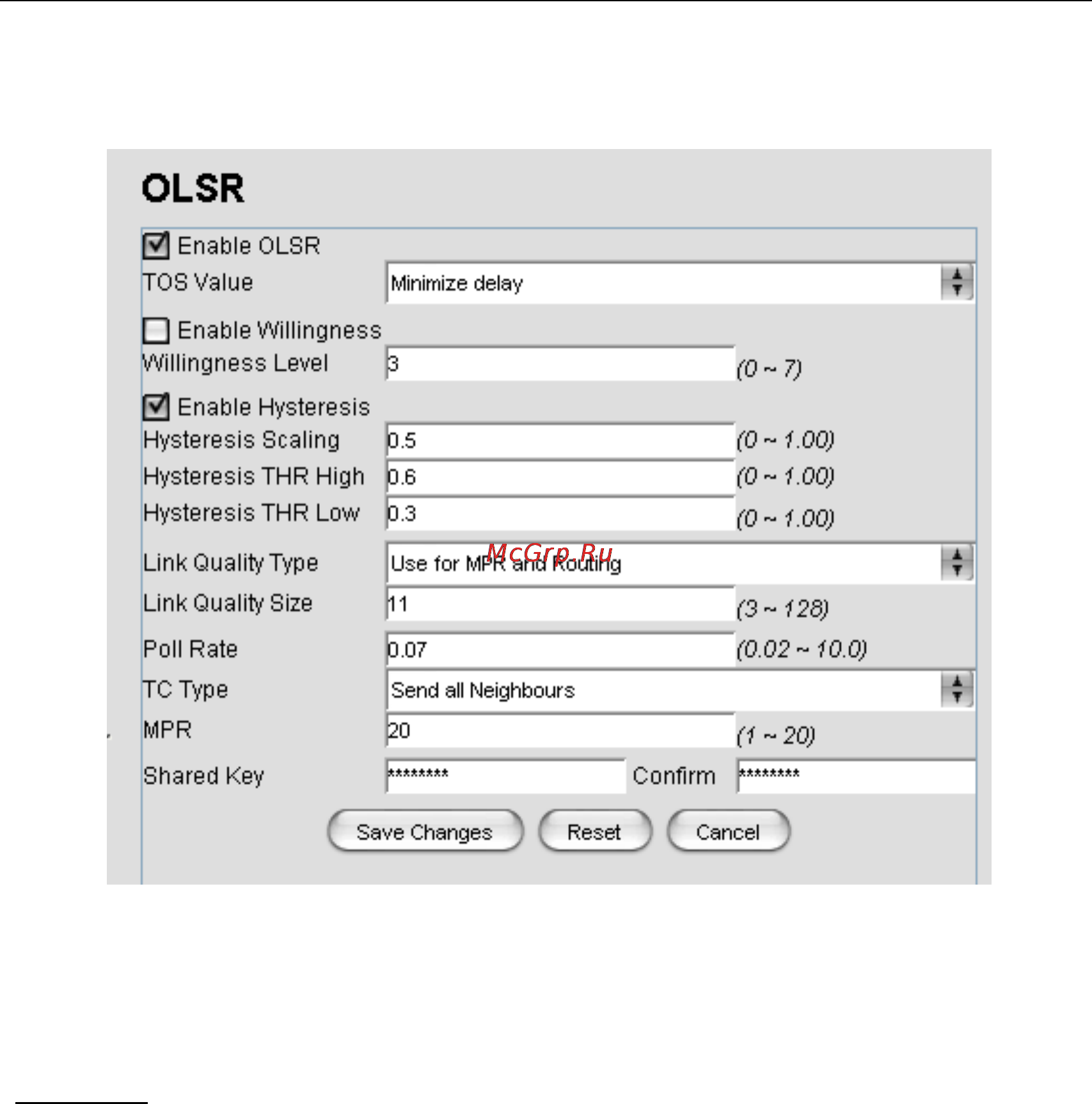

5.3.1.11 Network > OLSR (MAP-3100 only)
The OLSR configuration page defines the Optimized Link State Routing protocol of the Mesh
AP. It is a routing protocol for the Layer 3 mesh backhaul connections.
Parameters
1) Enable OLSR
• A checkbox to enable the OLSR service
2) TOS Value
• This field define the type of service value that should be set in the OLSR
control traffic packet IP headers
• Data type: Integer
3) Enable Willingness
• A checkbox to enable the willingness of the Mesh AP.
• Willingness of an AP is defined as the readiness of a node to carry and
forward traffic for other nodes.
4) Willingness Level
• The level of the willingness.
• Data type: Integer (0-7)
