7) Status
• The status of the table entry, either active or inactive

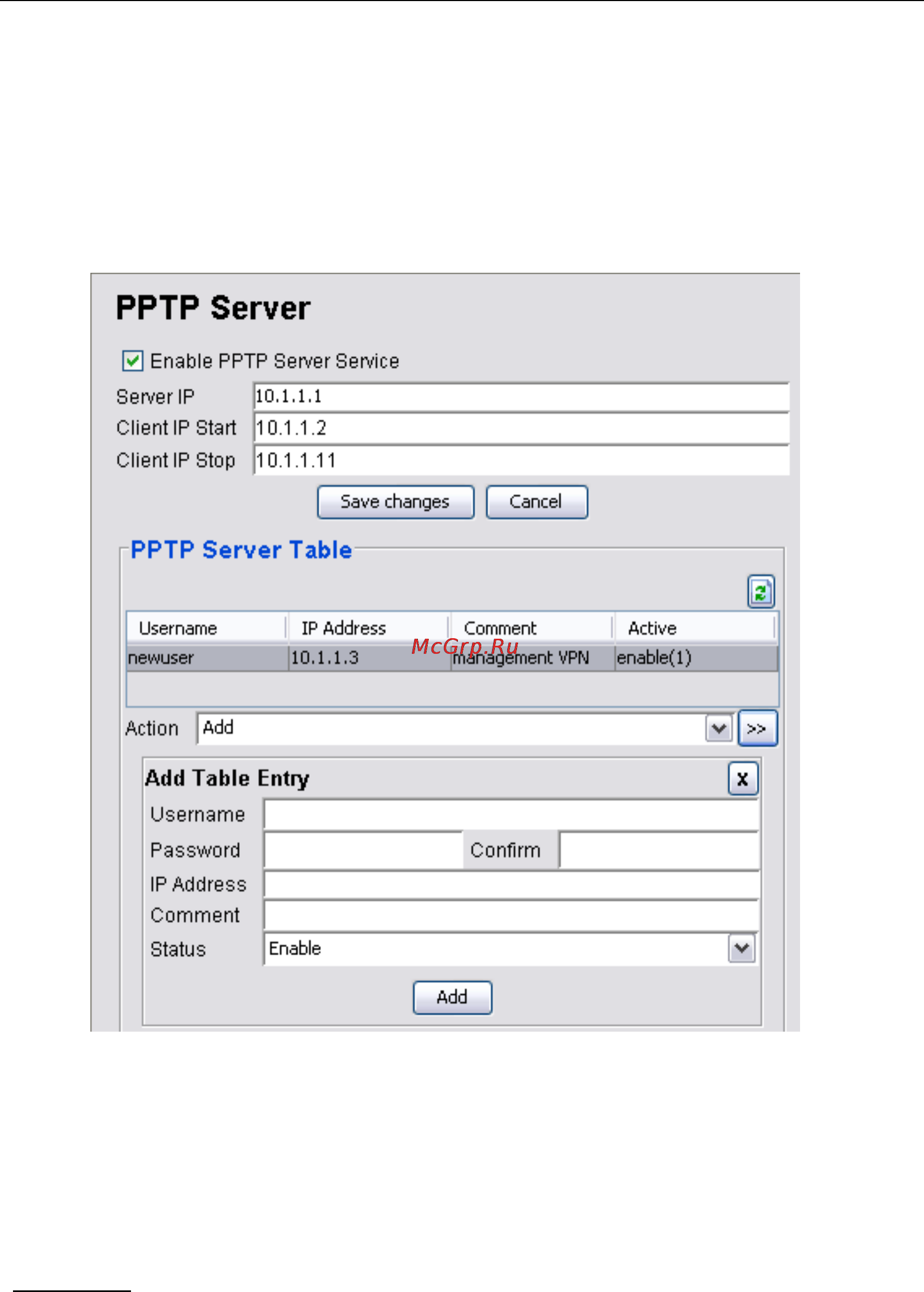

5.3.2.5 Services > PPTP Server (MAP-3100 only)
The Point-to-Point Tunneling Protocol is best suits for remote access applications of VPNs.
The PLANET Mesh Network Management Tools required a VPN connection to monitor the
mesh network remotely. Hence a PPTP server is required. The PPTP Server is used to assign
a user to a specified IP Address.
Parameters:
1) Enable PPTP Server Service
• A checkbox to enable or disable the PPTP server service.
2) Server IP
• The IP Address of the PPTP Server
• Data type: IP Address
