PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
24 of 126
By default, the profile will be saved to the Map folder in the programs directory, with the name
of the map profile and extension .map or .l2map.
4.2.3.4 Topology Map
The topology map is actually the graphical representation of the actual Mesh network
topology which is being scanned. When a new scan is initiated, the result of the scan will be
processed by the NMS, and output to the map.

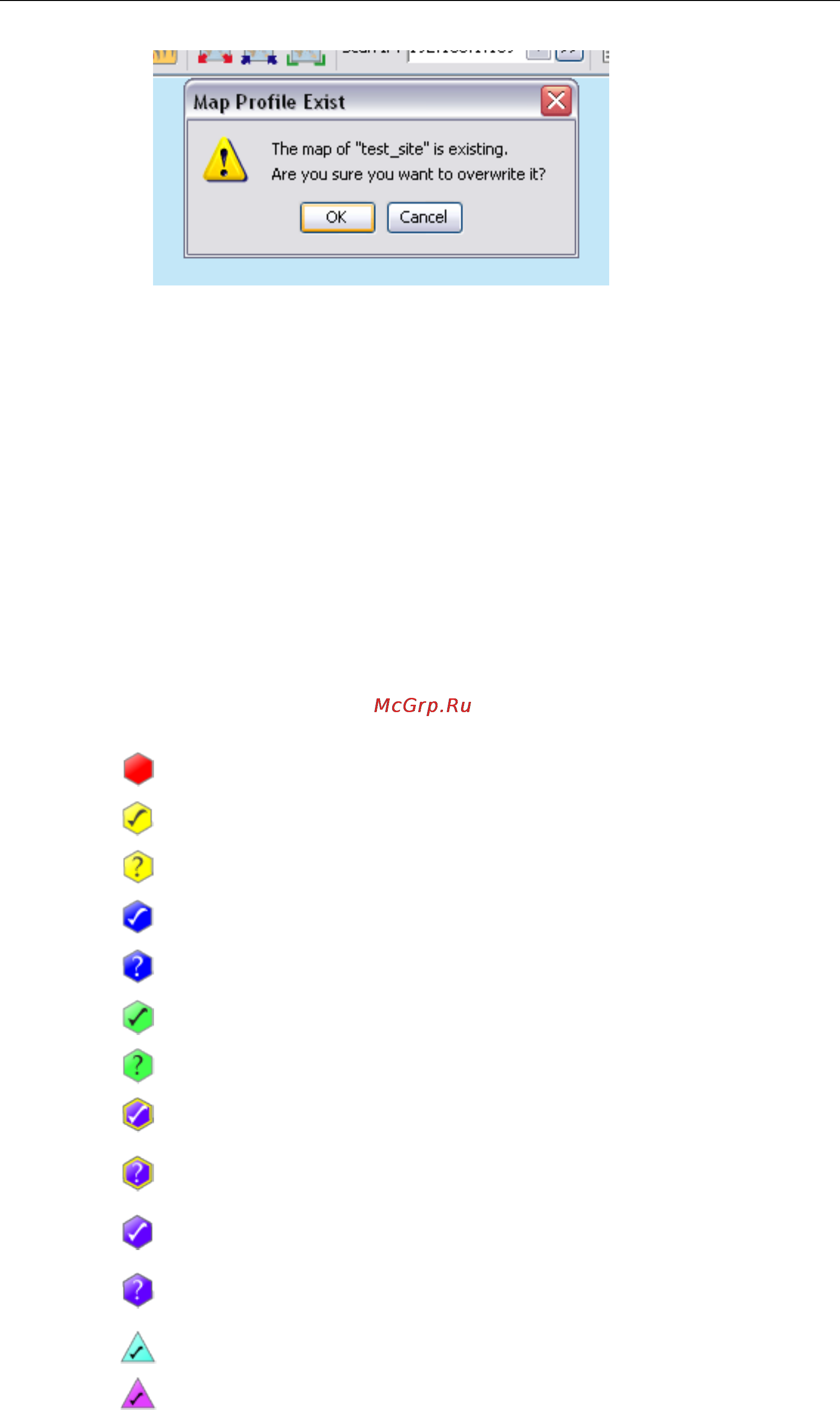

The AP unit would appear in different colors:-
Icon
Indication
Inactive AP
Accessible gateway AP
Inaccessible gateway AP
Accessible relay AP
Inaccessible relay AP
Accessible client-relay AP
Inaccessible client-relay AP
Layer-2 gateway AP, which notified the NMS
Layer-2 gateway AP, which did not notify the NMS
(discovered as neighbour)
Layer-2 AP, which notified the NMS
Layer-2 AP, which did not notify the NMS (discovered as
neighbour)
AP Bridge
AP Router
