5.3.2.6 Services > Mobile IP (Future Feature) (MAP-3100 only)
The Transparent Mobile IP is a feature that allows the AP’s client, whose IP address is
associated with one network, to stay connected when move on to another network with a
different IP address. This feature proved advantage for the mobile device user who is not
stationary.

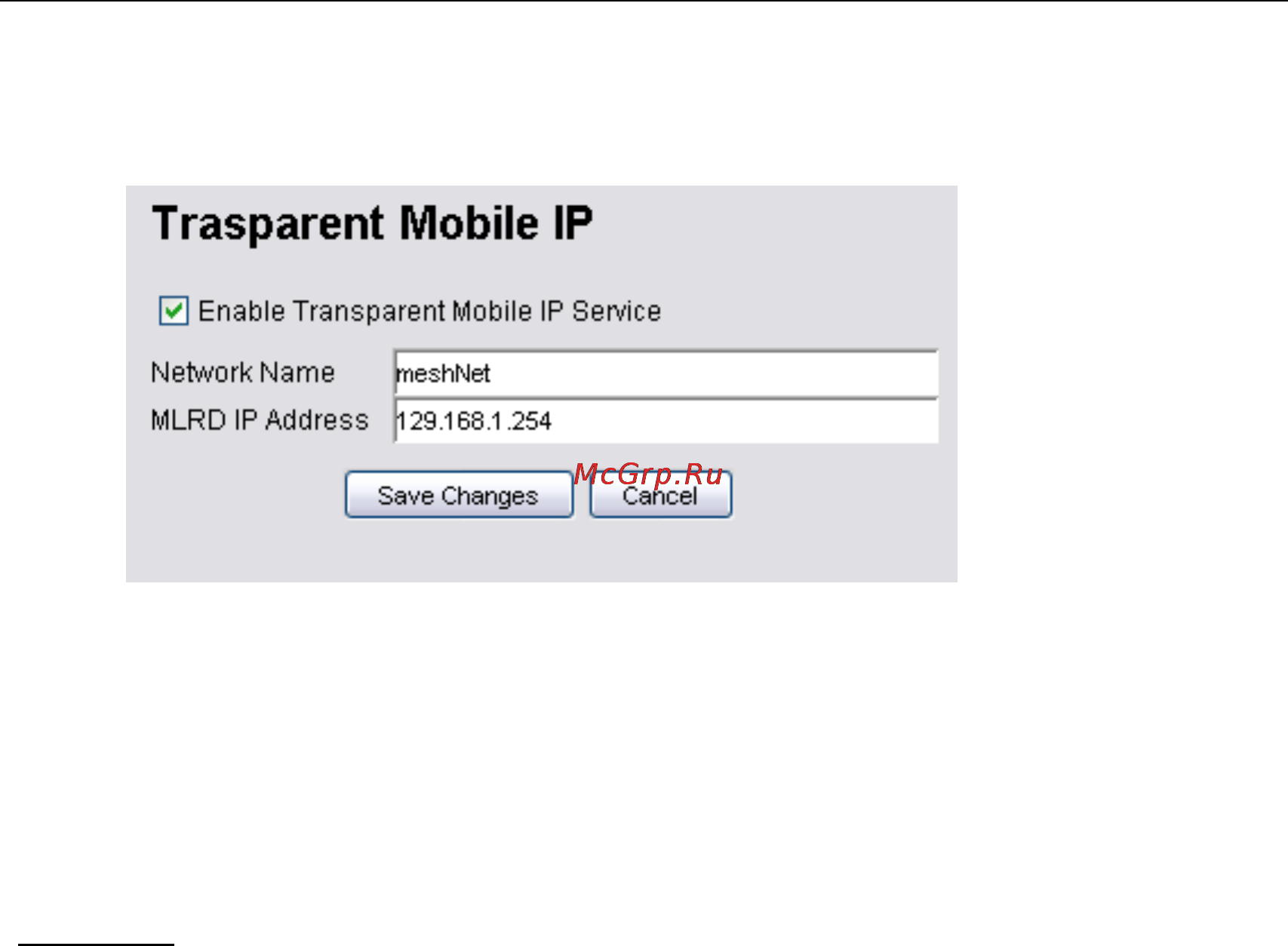

Parameters
1) Enable Transparent Mobile IP service
• A checkbox to enable or disable the service of Mobile IP
2) Network Name
• The Mobile IP community
• Data type: Octet String
3) MLRD IP Address
• The IP Address for the Mobile Location Register Daemon.
• Data type: IP Address
