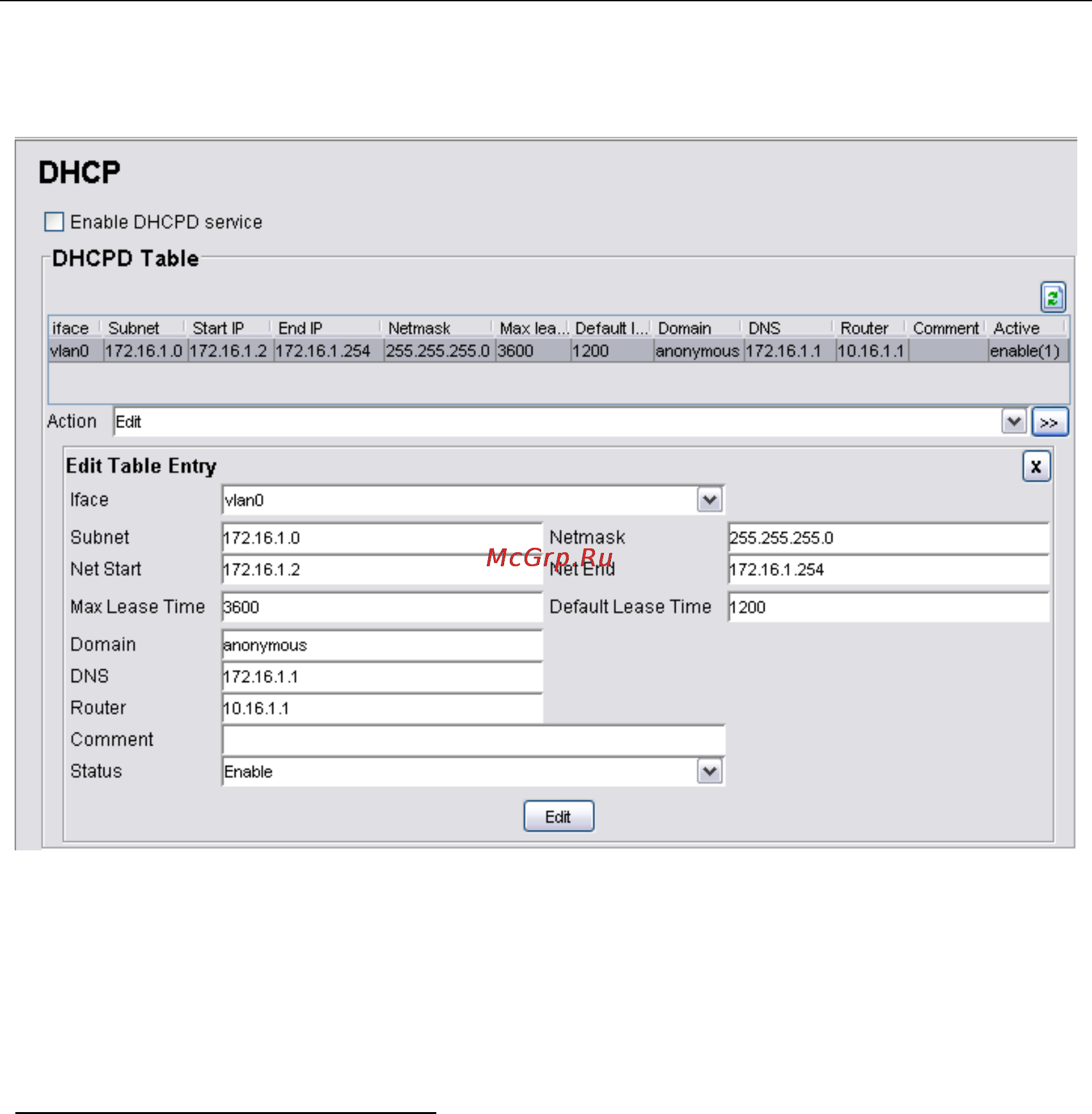

5.3.2 Services > DHCP (MAP-3100 only)
The DHCP service offers the Mesh AP a feature to assign dynamic IP Address to all the
clients. The DHCPD Table in this configuration page lists the dynamic IP assignments in the
device.
Parameters (DHCPD Table columns)
1) Iface
• The name of the active interface in the Mesh AP unit.
• Data type: Octet String
2) Subnet
• The subnet address
• Data type: IP Address
3) Netmask
• The netmask corresponding to the subnet of the table entry
• Data type: IP Address
4) Net Start
• The starting IP Address in the subnet for the assignment.
• Data type: IP Address
