PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
69 of 126

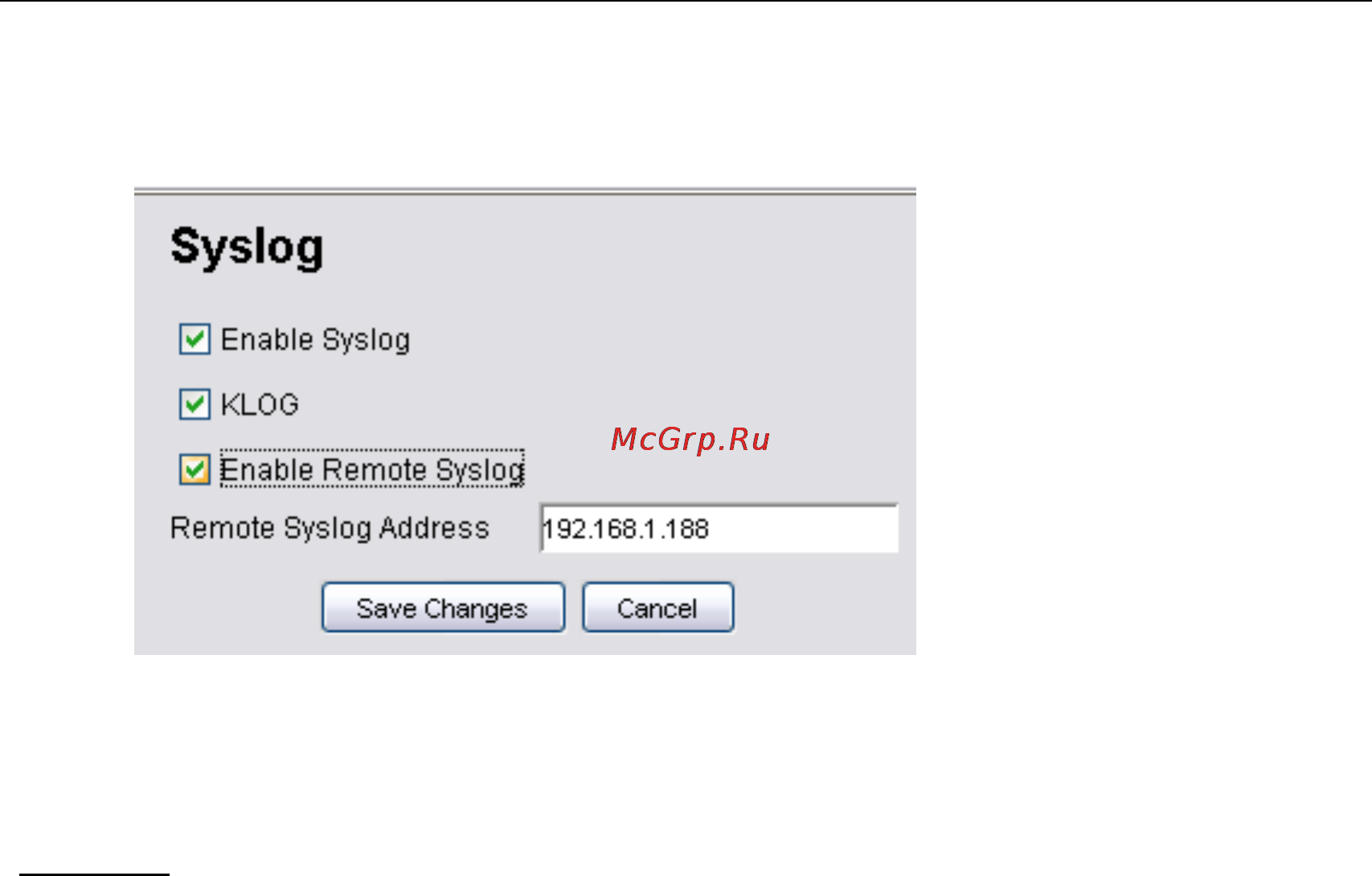

5.3.1.1 System > Syslog
The Syslog is a system feature to send the system log messages to a remote server.
1) Enable Syslog
Parameter
• A checkbox to enable or disable the syslog feature.
2) KLOG
• A checkbox to enable or disable the Kernel Log service
3) Enable Remote Syslog
a. A checkbox to enable or disable the remote syslog server service
4) Remote Syslog Address
• The address of the remote syslog server, who will receive all the syslog message
• Data type: DNS String
5.3.1.2 System > Advanced Tuning
The Advance Tuning panel is divided to two parts, the connection tracking parameters and
the wireless distance. The Connection tracking portion determines the seconds of various
timeout parameters, where as the latter define the estimate operating distance in meters, for
the radio available in the device. Use the reset button to refill the value fields with the default
values.
