5.3.1.10 Network > L2TP Client
The L2TP (Layer 2 Tunneling Protocol) is a tunneling protocol that used to support the virtual
private network. Admin can create a L2TP client at this panel for the network traffic tunneling
purpose.

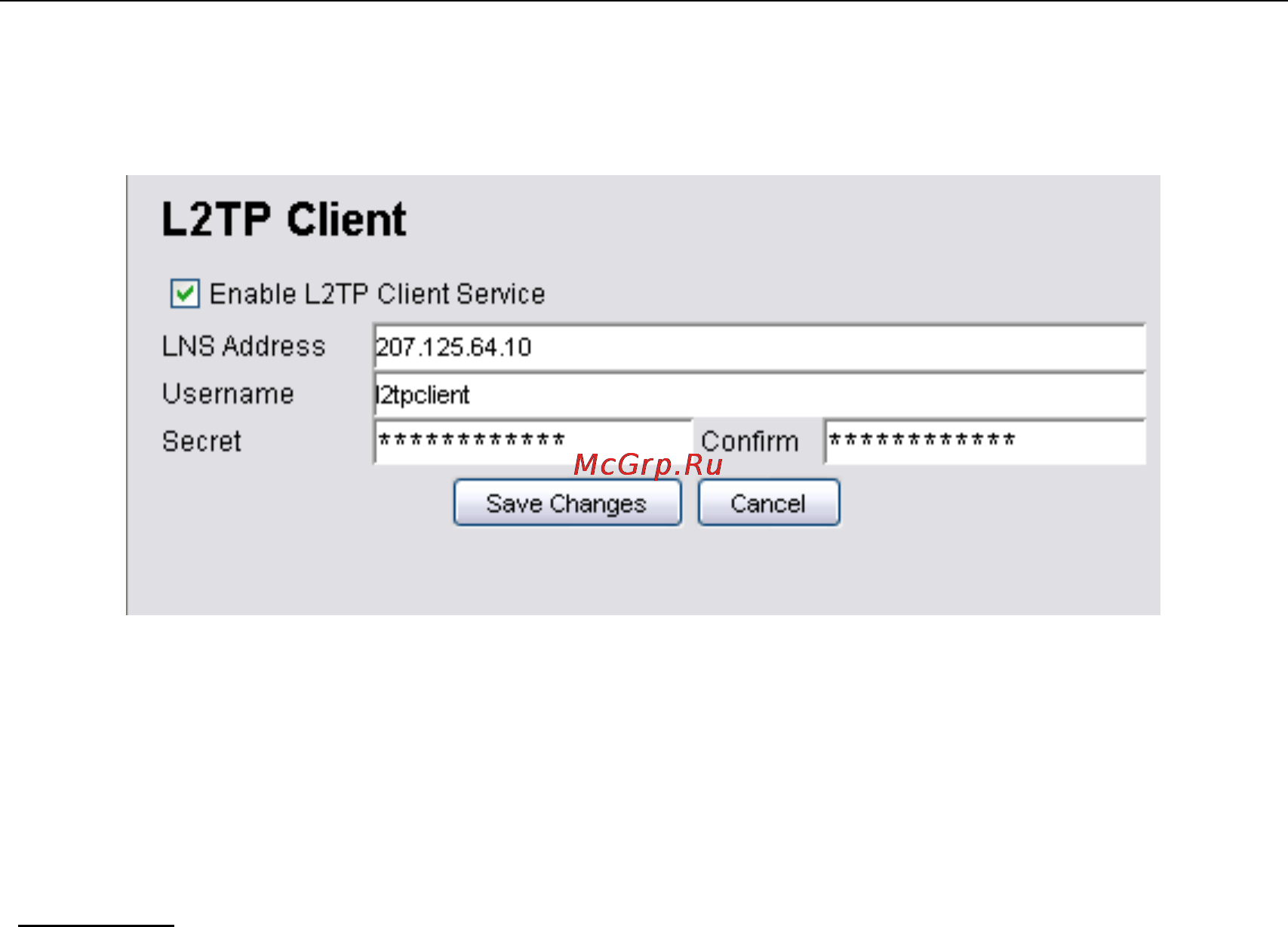

Parameters
1) Enable L2TP Client Service
• A checkbox to enable or disable the L2TP feature
2) LNS Address
• The L2TP Network Server address.
• Data type: DNS String
3) Username
• The username for the L2TP client
• Data type: Display String
4) Password
• The correspond password for the username above
• Data type: Display String
