PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
39 of 126

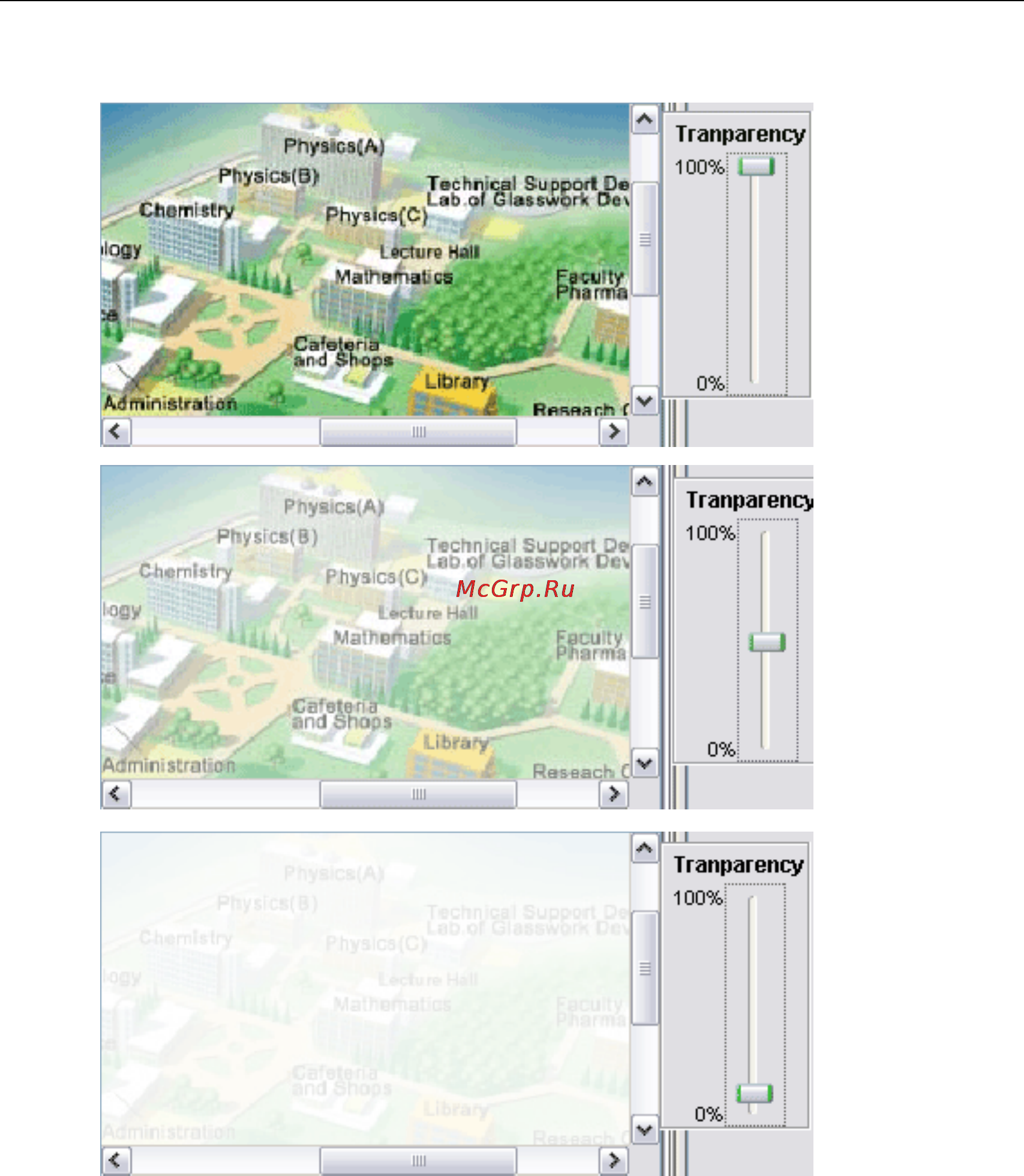

View the following figures to see the effect of the transparency tool.
(100%)
(50%)
(10%)
The tool will be closed automatically when it loses focus (mouse click anywhere out from the
tool).
4.2.3.18 Block List
The Block List offers the NMS users a filtering tool in the topology map. User can define the
IP Address to block, once the AP is blocked, it will be removed from the topology map, and
will not be added to the map even if it is detected by the NMS.
To move an IP to the block list, click the Block List button on the toolbar, or select Settings >
Block List from the menu bar. A window will emerge, as shown by the figure above. Then
