PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
52 of 126

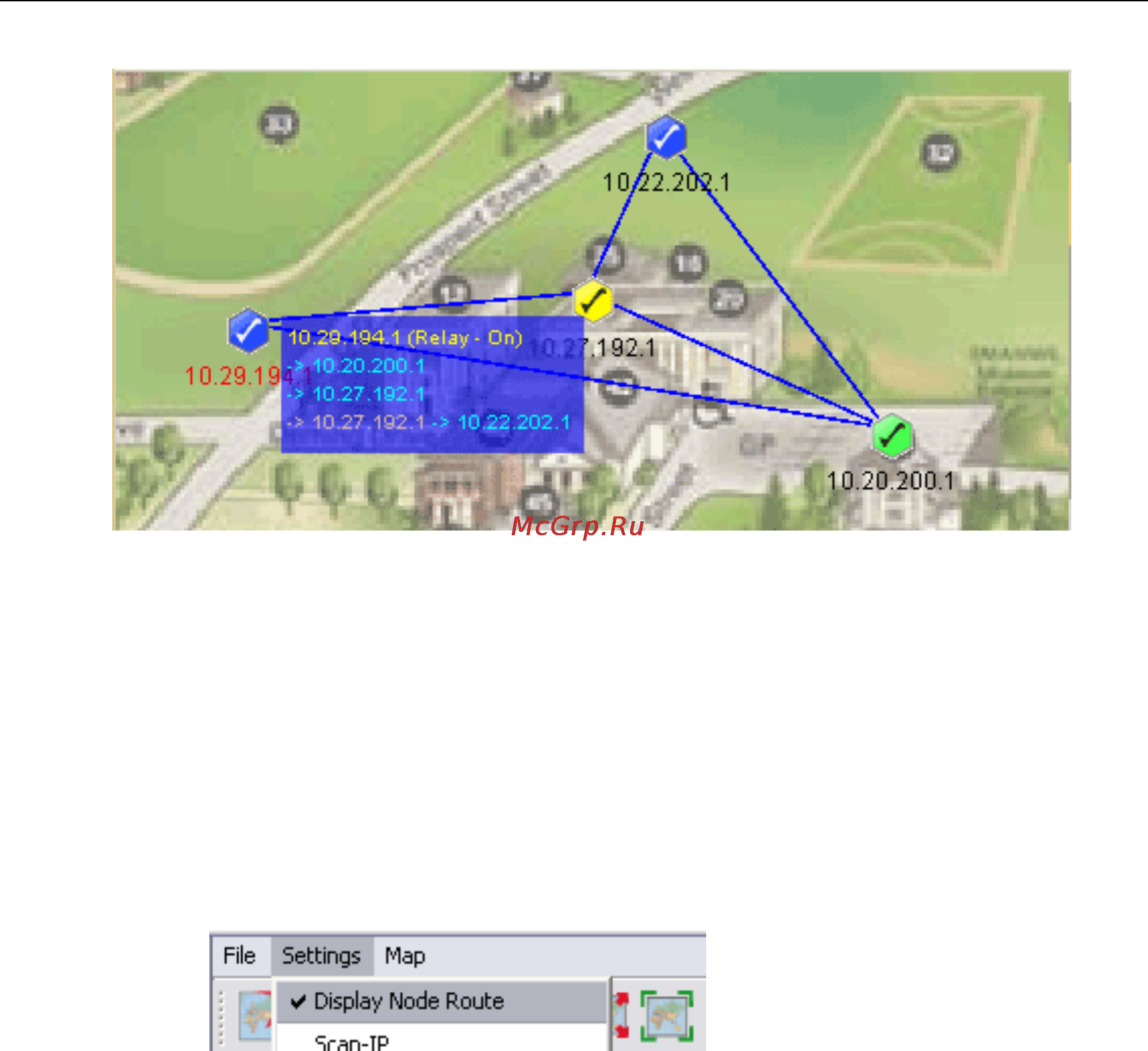

Whereas the figure above illustrates how the routes are displayed when nodes are not directly
connected. From the example, node 10.29.194.1 and 10.22.202.1 are not directly connected.
Instead, the connection between them is established via node 10.27.192.1, according to the
route box.
If user would like to disable this feature, please select Settings > Display Node Route from
the map container menu bar.
