PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
63 of 126

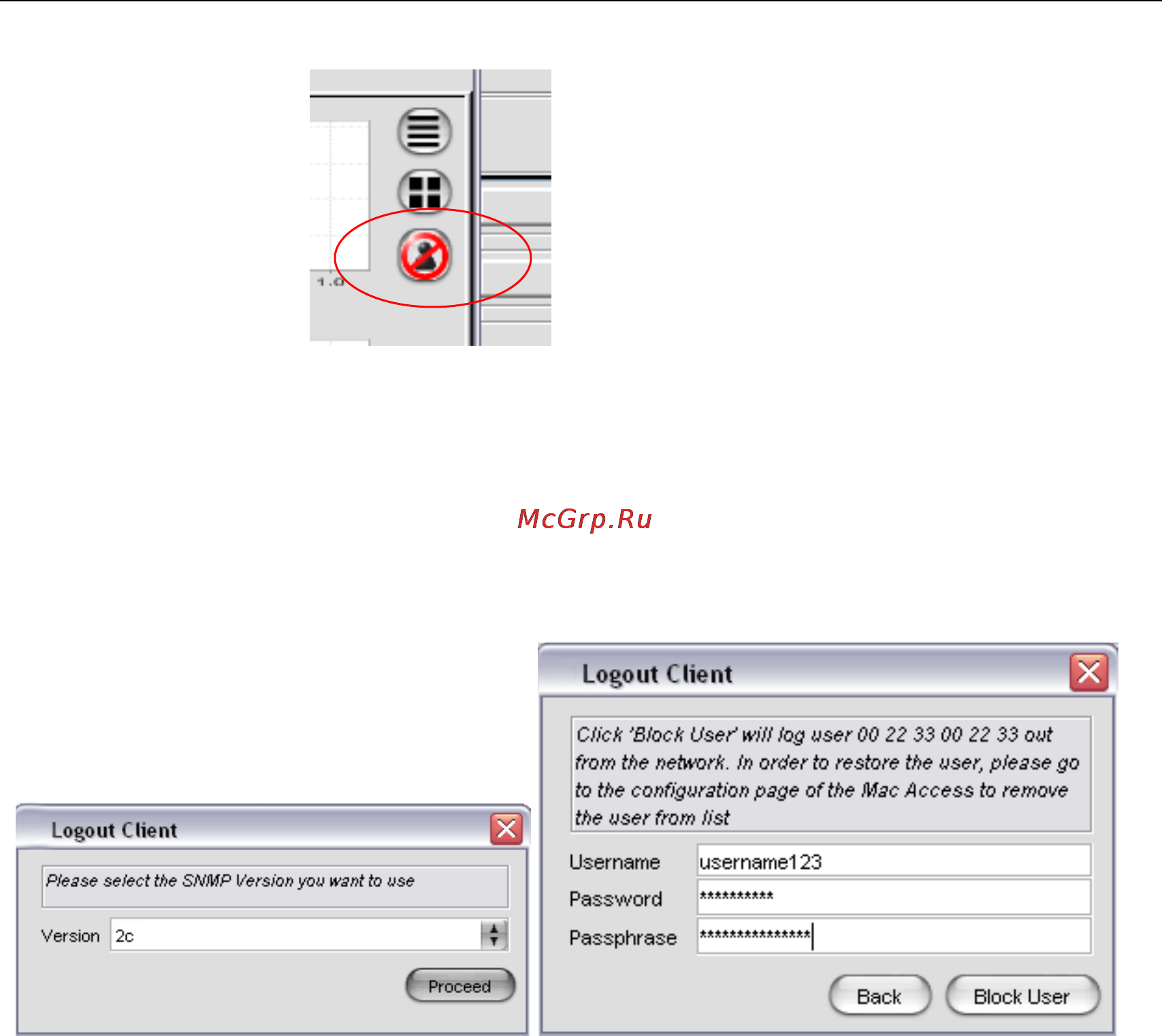

A window would appear on the screen to prompt user for the SNMP version to use and its
corresponding community or passwords. Click the Block User button once completed the
step, the selected client will be removed from the active client table, and added into the MAC
Access Table.
