PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
74 of 126
2) Netmask
• The netmask for the Static IP Address.
• Data type: IP Address
• Network > WAN > PPPoE

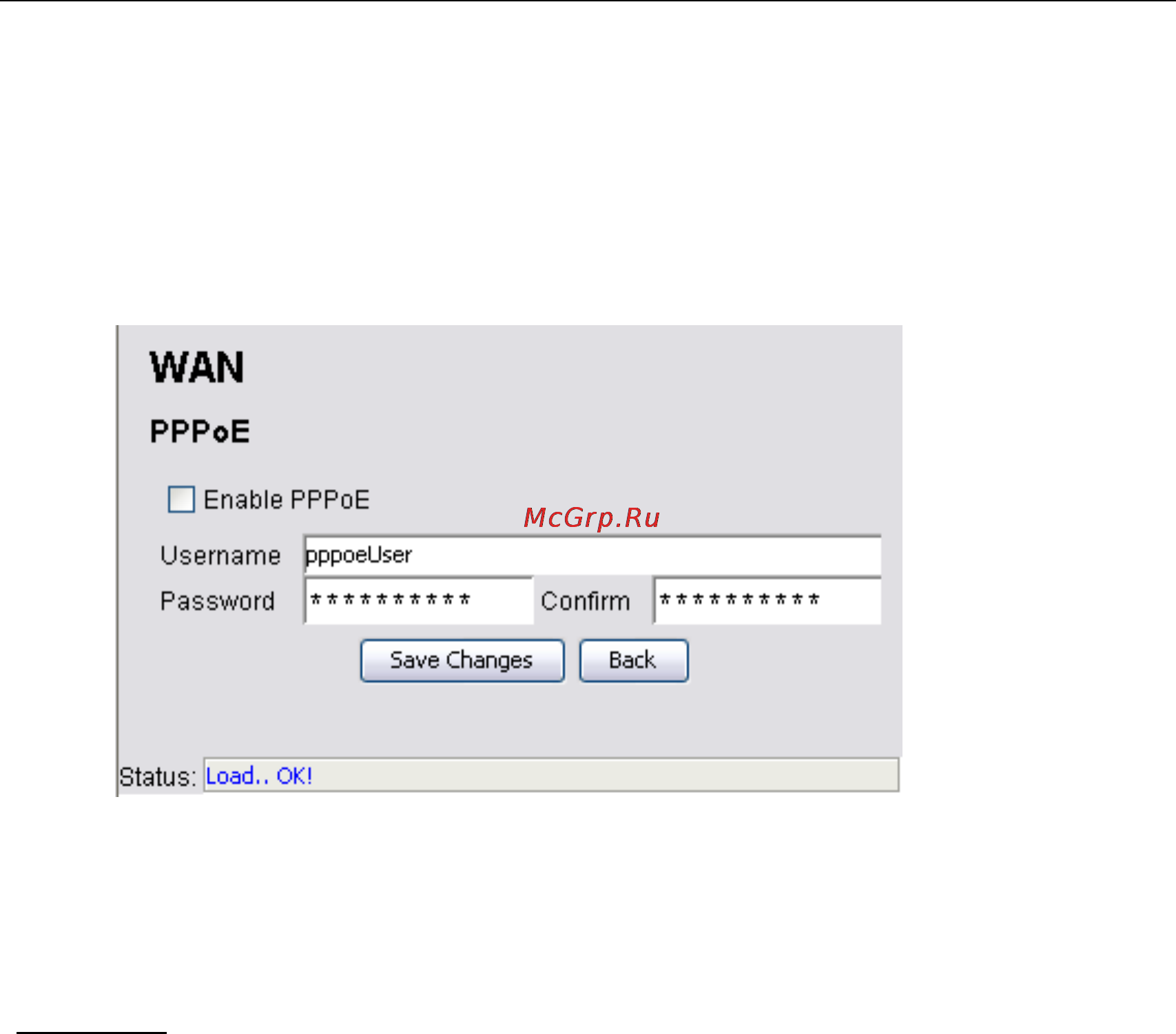

Fill in the PPPoE’s username and password, then click the Save Changes button to activate
the PPPoE WAN interface type. Hit the Back button to back to the WAN Type configuration
page.
1) Enable PPPoE
Parameters:
• A checkbox to enable or disable the PPPoE service.
2) Username
• The username of the PPPoE client
• Data type: Display String
3) Password, Confirm
• The password corresponding to the username of the PPPoE client
• Must key in the same input at the Confirm field to avoid mistakes
• Data type: Display String
