PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
79 of 126
5.3.1.6 Network > Mesh

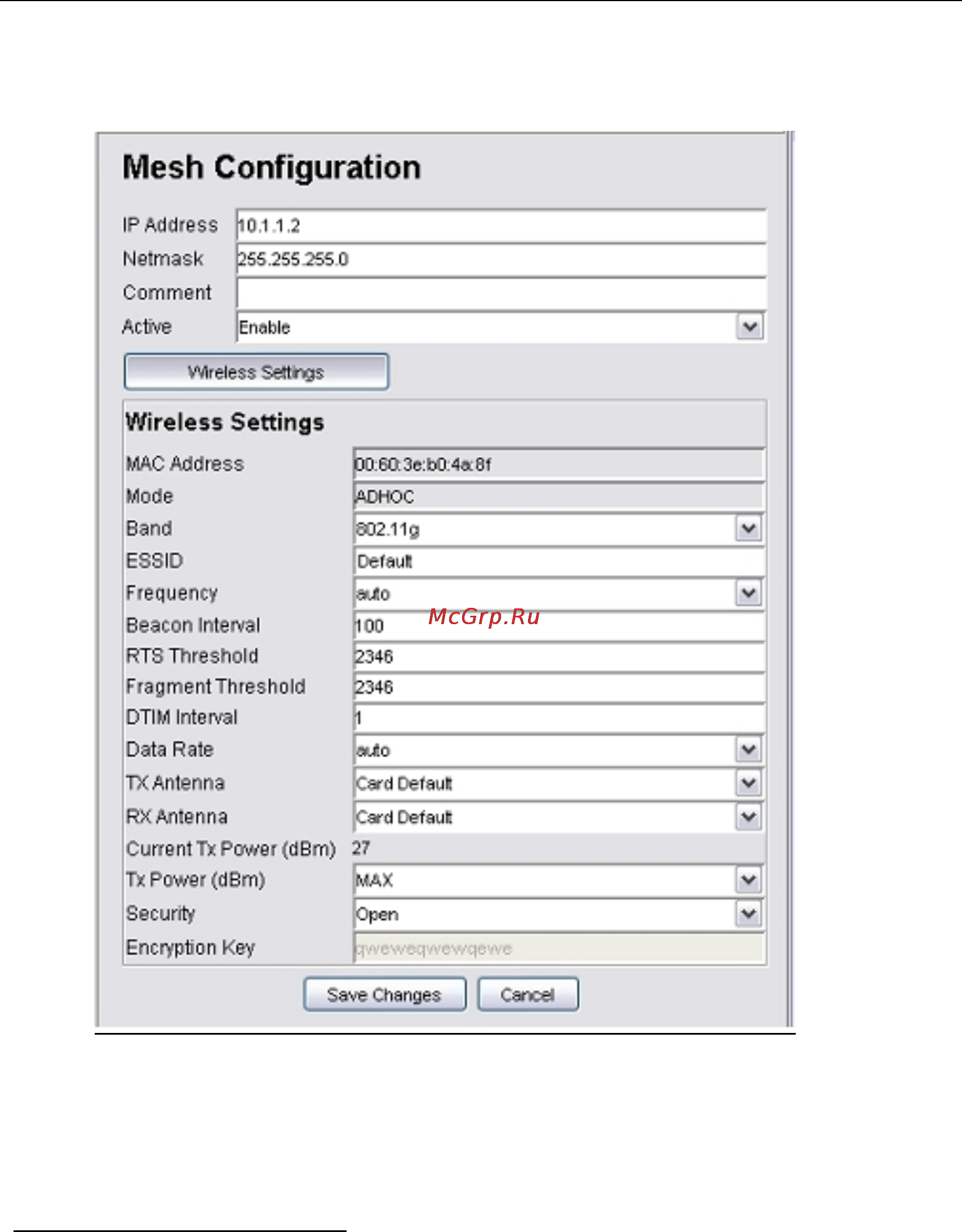

The Mesh configuration page read the data from the wireless interface, ath0. Select the
Wireless Settings button to view or edit the corresponding data.
Parameters (Mesh Configuration)
1) IP Address
• IP Address for the Mesh interface
• Data type: IP Address
2) Netmask
• Netmask for the IP Address of the Mesh interface
• Data type: IP Address
