PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
85 of 126
5.3.1.8 Network > Route

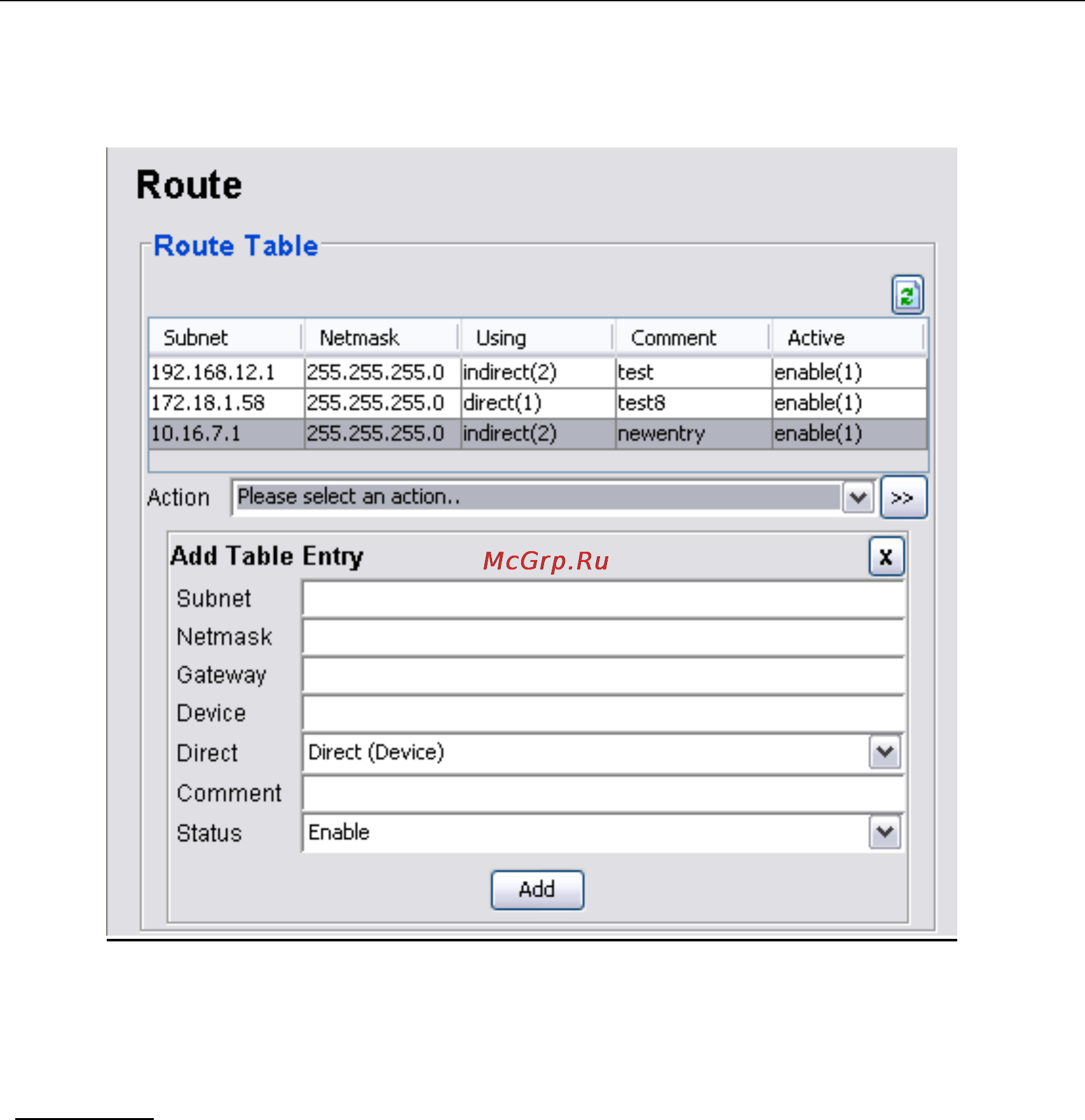

The route table is a network map that notifies the node about the way to deliver the packets to
its addressee. This configuration page presents the routing table of the Mesh AP.
Parameters:
1) Subnet
• The subnet address of the route
• Data type: IP Address
2) Netmask
• The netmask corresponding to the subnet address
• Data type: IP Address
3) Gateway
• The gateway IP Address for this route entry
• Data type: IP Address
4) Device
• Specifies the route devices for this route entry
• Data type: Octet String
