PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
96 of 126
2) Type
• Define the type of control for the corresponding Mac Address, either Allow or
Deny
3) Comment
• An optional comment regarding the client
• Data type: Display String
4) Active
• The status of the table entry, either active or inactive

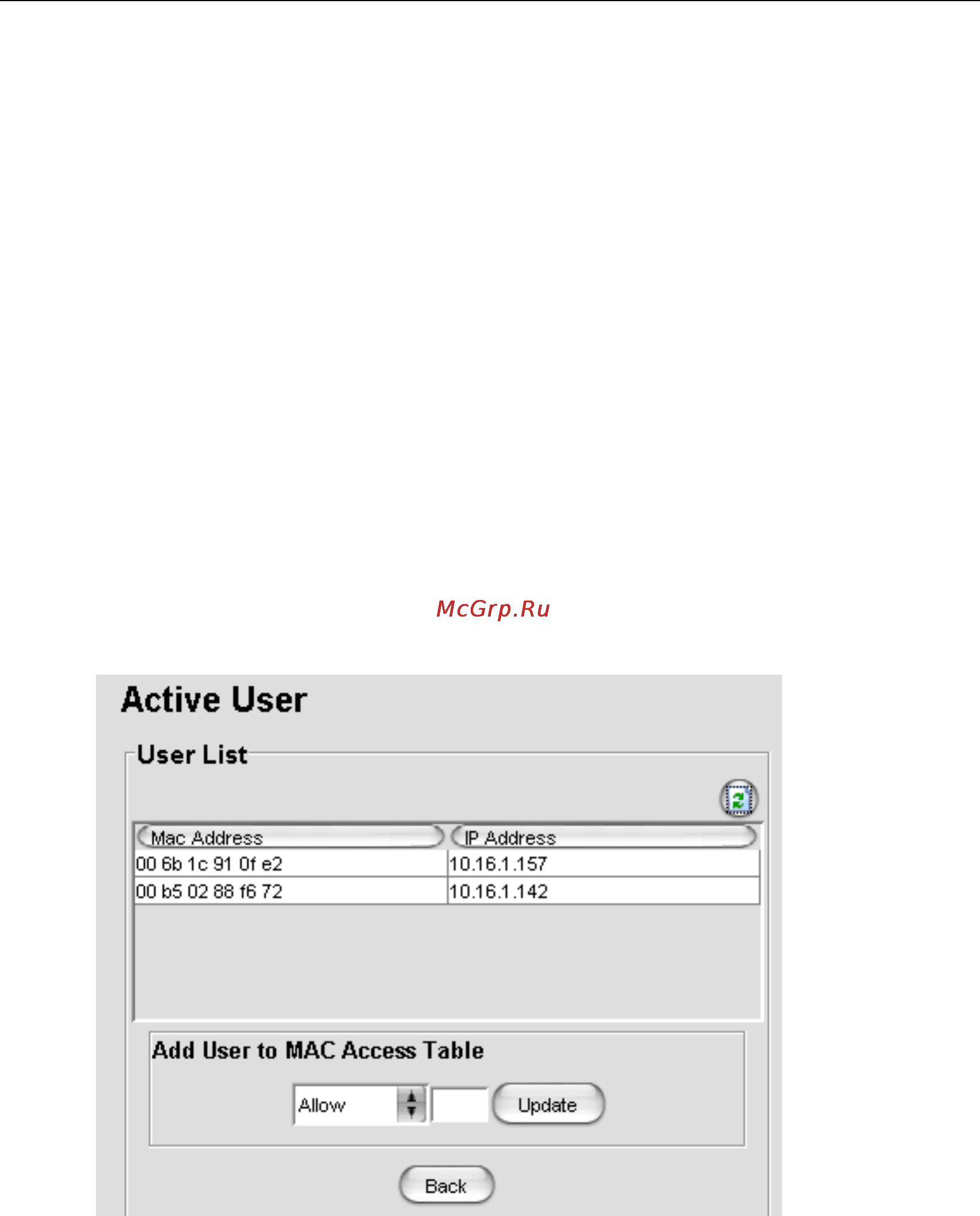

The Browse Active Users button opens a list that shows every active user associating to the
network. From this table, the administrator may add the desired user into the Mac Access
Table, by using the Update button. Choose the type of accessing from the drop down list.
