Si30-813 Field Setting
Test Operation 119
BRC7C Type

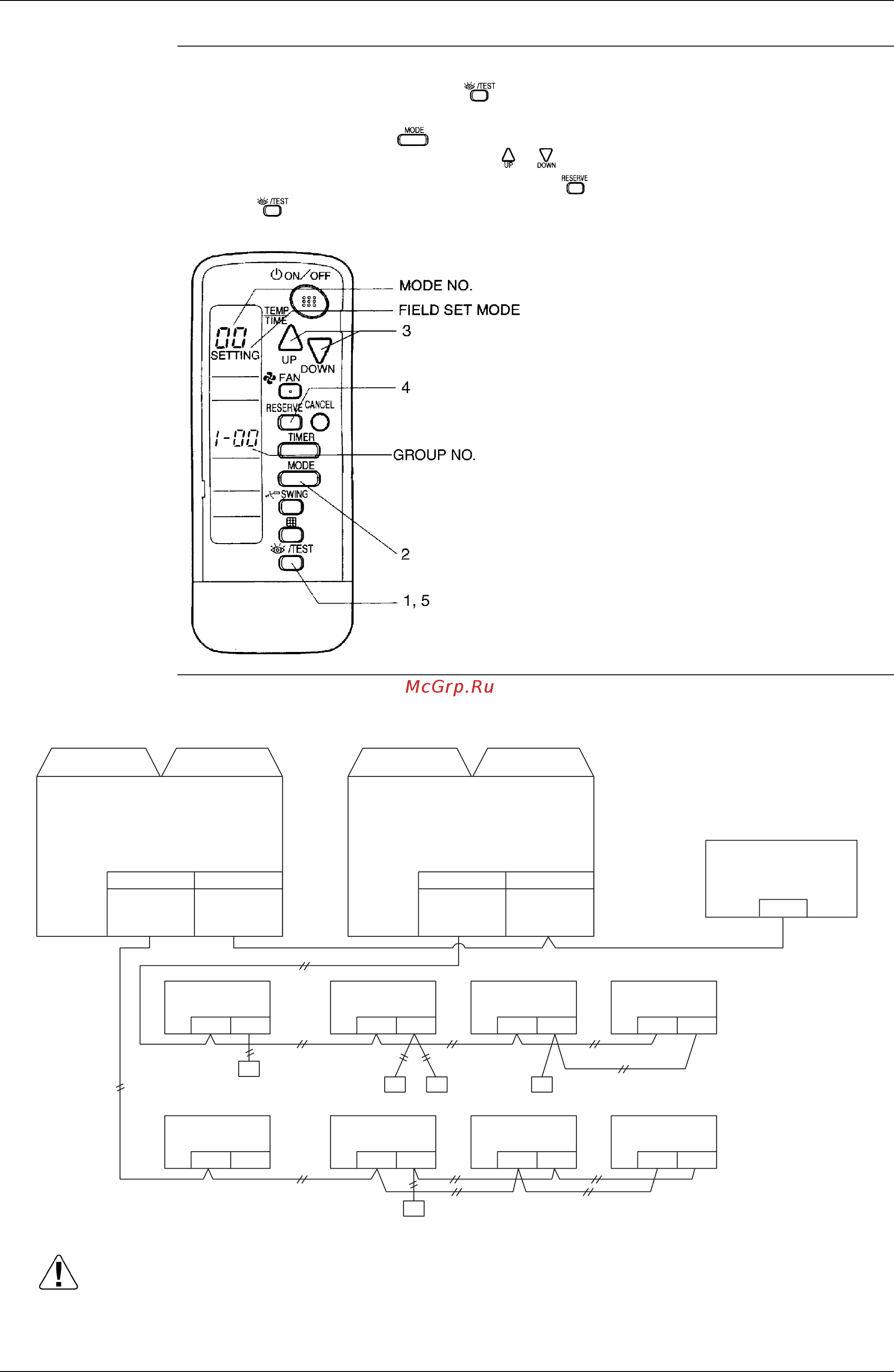

Group No. setting by wireless remote controller for centralized control
1. When in the normal mode, push button for 4 seconds or more, and operation then
enters the “field set mode.”
2. Set mode No. “00” with button.
3. Set the group No. for each group with button (advance/backward).
4. Enter the selected group numbers by pushing button.
5. Push button and return to the normal mode.
BRC7C Type
Group No. Setting
Example
Caution When turning the power supply on, the unit may often not accept any operation while "88" is
displaying after all indications were displayed once for about 1 minute on the liquid crystal
display. This is not an operative fault.
Centralized Remote
Controller
F1 F2
F1 F2 F1 F2
F1 F2
P1 P2
RC
RC
RC RC RC
F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2
F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2 F1 F2 P1 P2
No Remote Controller
Group Control by Remote Contoller
(autmatic unit address)
1-03
1-00
1-01
Main Sub
1-02
1-04
Indoor/Outside
Outside/Outside
F1 F2 F1 F2
Indoor/Outside
Outside/Outside
