Daikin RWEYQ30PY1 [265/342] Address duplication improper setting
![Daikin RWEYQ30PY1 [265/342] Address duplication improper setting](/views2/1713850/page265/bg109.png)
Troubleshooting (OP: Schedule Timer) Si30-813
254 Troubleshooting
4.5
“
MC
”
Address Duplication, Improper Setting
Remote
Controller
Display
MC
Applicable
Models
Indoor unit
FXFQ, FXCQ, FXKQ, FXDQ, FXSQ, FXMQ, FXHQ, FXAQ, FXLQ, FXNQ, FXUQ
schedule timer
Method of
Malfunction
Detection
Detect the malfunction according to DIII-NET transmission data.
Malfunction
Decision
Conditions
When two or more schedule timers are connected.
Supposed
Causes
Address duplication of optional controller for centralized control

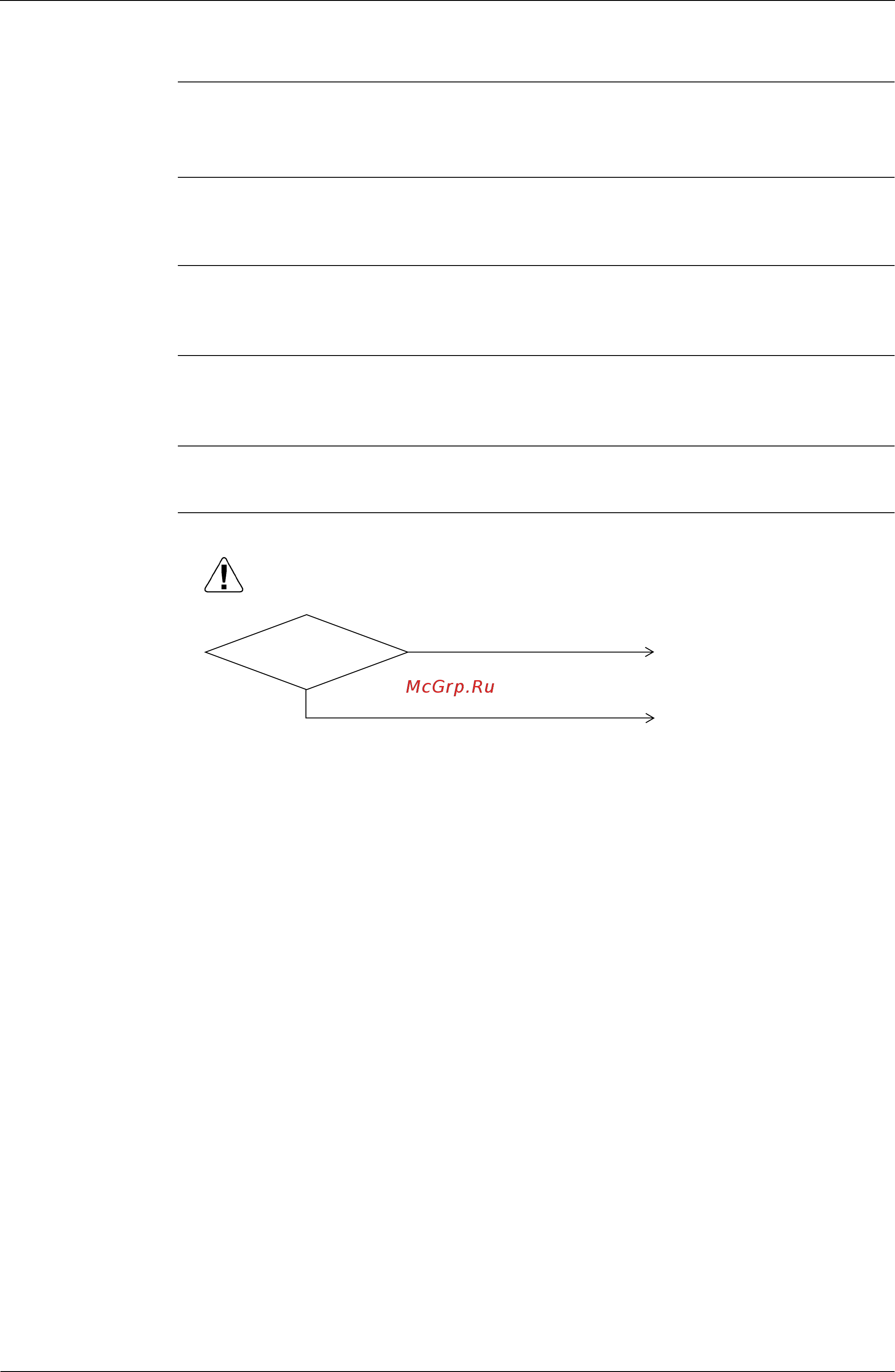

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Are two or more
centralized controller
connected?
Reset the power supply for the
centralized controller.
Disconnect all centralized
controller except one and reset
the centralized controller timer’s
power supply.
YES
NO
