Si30-813 Field Setting
Test Operation 133
3.2.3 Cool / Heat Mode Switching (In case of heat pump connection)
There are the following 5 cool/heat switching modes.
c
Set cool/heat separately for each outside unit system by indoor unit remote controller.
d
Set cool/heat separately for each outside unit system by cool/heat switching remote
controller.
e
Set cool/heat for more than one outside unit system simultaneously in accordance with
unified master outside unit by indoor unit remote controller.
f
Set cool/heat for more than one outside unit system simultaneously in accordance with
unified master outside unit by cool/heat switching remote controller.

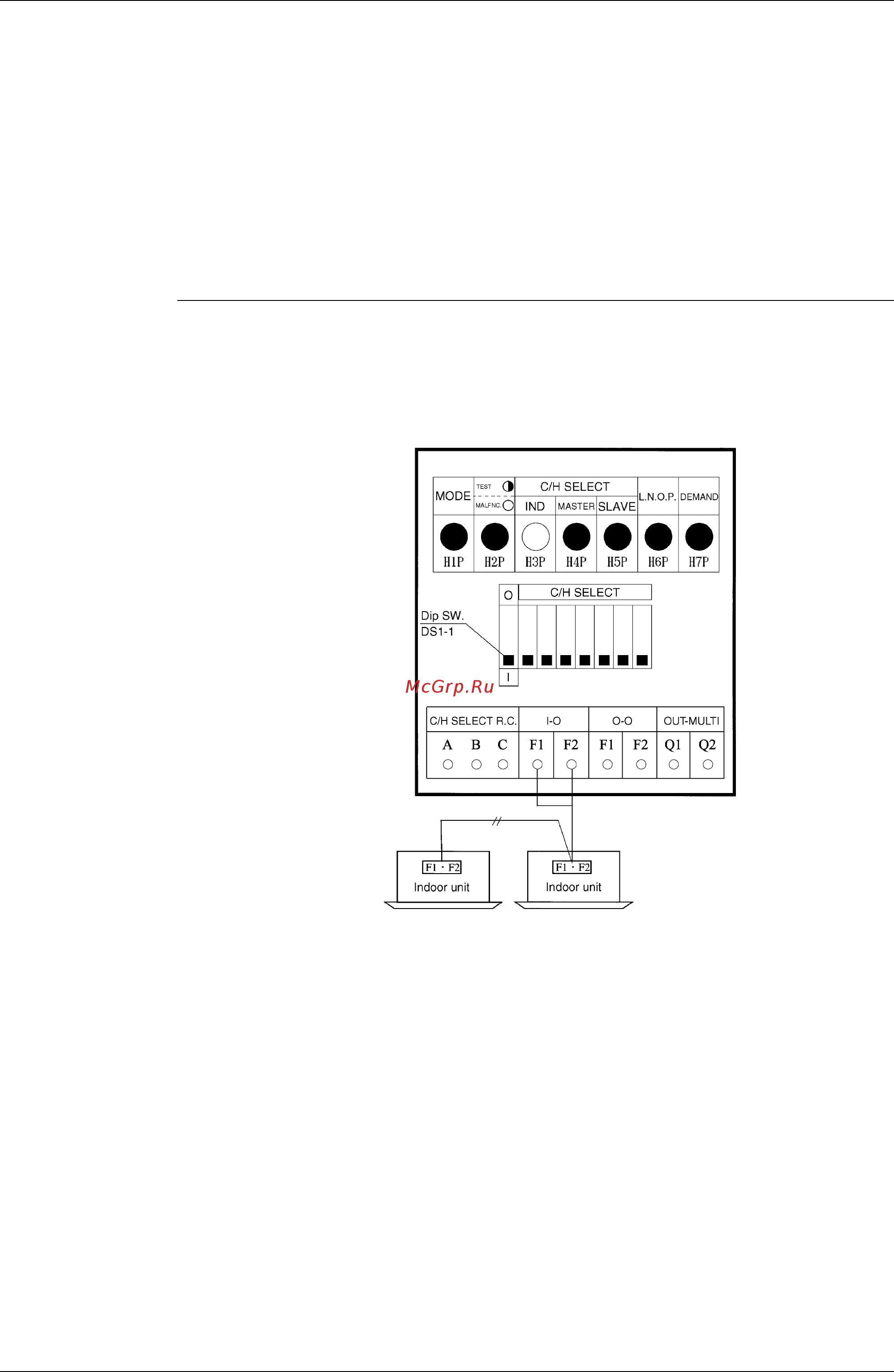

c Set Cool/Heat Separately for Each Outside System by Indoor Unit Remote Controller
It does not matter whether or not there is outside - outside unit wiring.
Set outside unit PC board DS1-1 to “indoor” (factory set).
Set cool/heat switching to “individual” for “Setting mode 1” (factory set).
