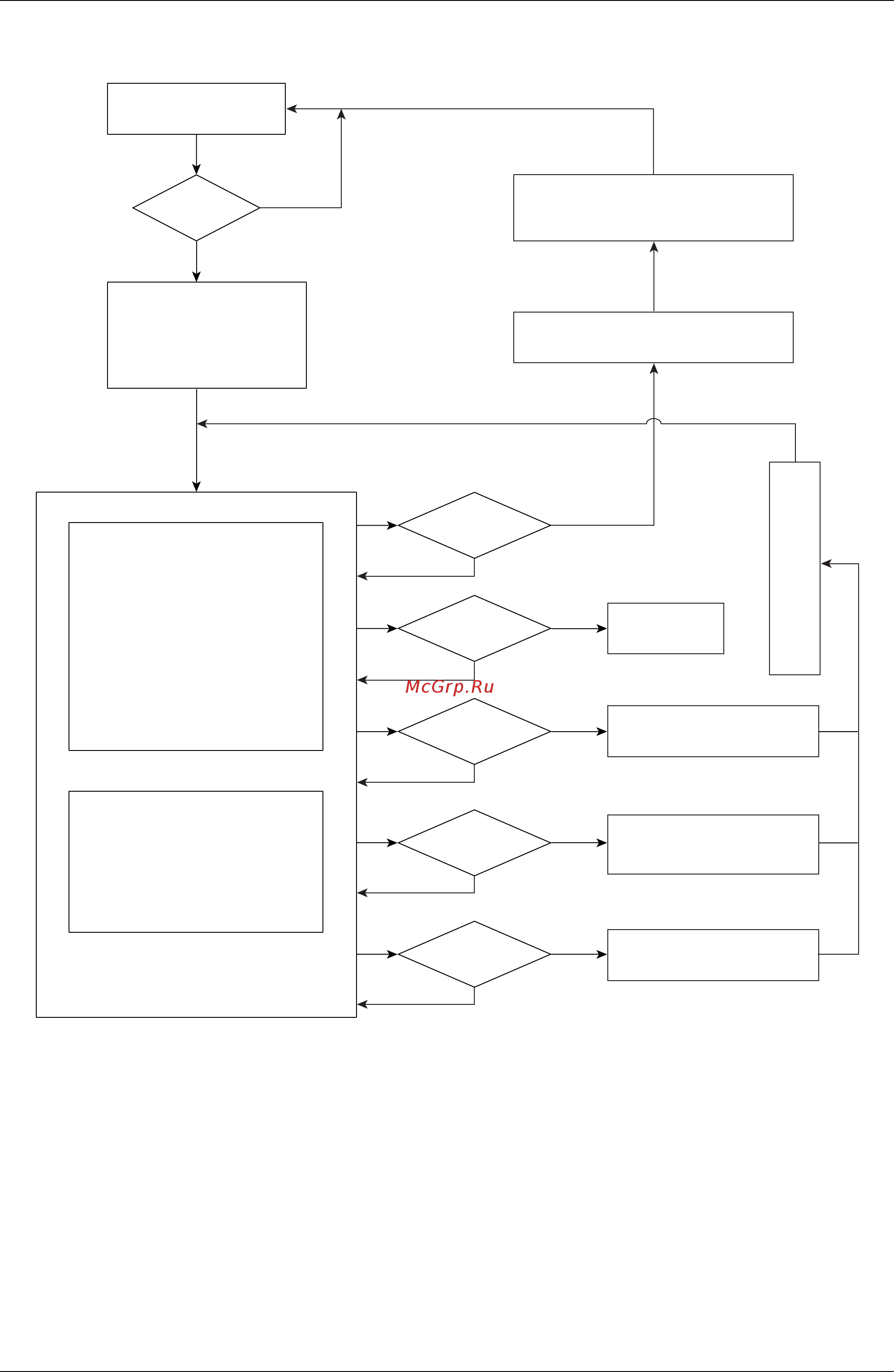

Si30-813 Function General
Function 63
1.2 Operation Mode
System stopping function
(2.1)
Thermostat ON
Thermostat OFF
Malfunction stop
condition
• Malfunction
stop (2.2)
• Pressure equalization control
(4.3)
Oil return operation
• Cooling oil return operation (7.1)
• Heating oil return operation (7.1)
• Water heat exchanger oil
return operation (7.2)
NO
YES
Normal operation
Protection control
YES
IN
IN
YES
Startup control
•Cooling startup control (4.1)
•Heating startup control (4.2)
•Pressure equalization
startup control (4.3)
• Cooling operation (1.3)
• Heating operation (1.3)
• Cooling/Heating simultaneous
operation (1.3)
• BS unit & Indoor unit operation (1.4)
• Slave unit stopping function (2.1)
• Compressor control (5.1)
• Electronic expansion valve control
(5.2)
• Heat exchanger mode control (5.3)
• High pressure protection control (6.1)
• Low pressure protection control (6.2)
• Discharge pipe protection control
(6.3)
• Inverter protection control (6.4)
• Refrigerant drift prevention (7.4)
• Restart standby (3.1)
• Clankcase heater control (3.2)
• Pump-down residual operation (7.3)
NO
NO
NO
NO
NO
Determination
Cooling/Heating
mode change
Oil return
condition
Water heat
exchanger oil return
condition
• Outside unit rotation (8.1)
∗ Figures in the parentheses indicate the description Nos. of functional operation shown in the following
pages.
