Field Setting Si30-813
122 Test Operation

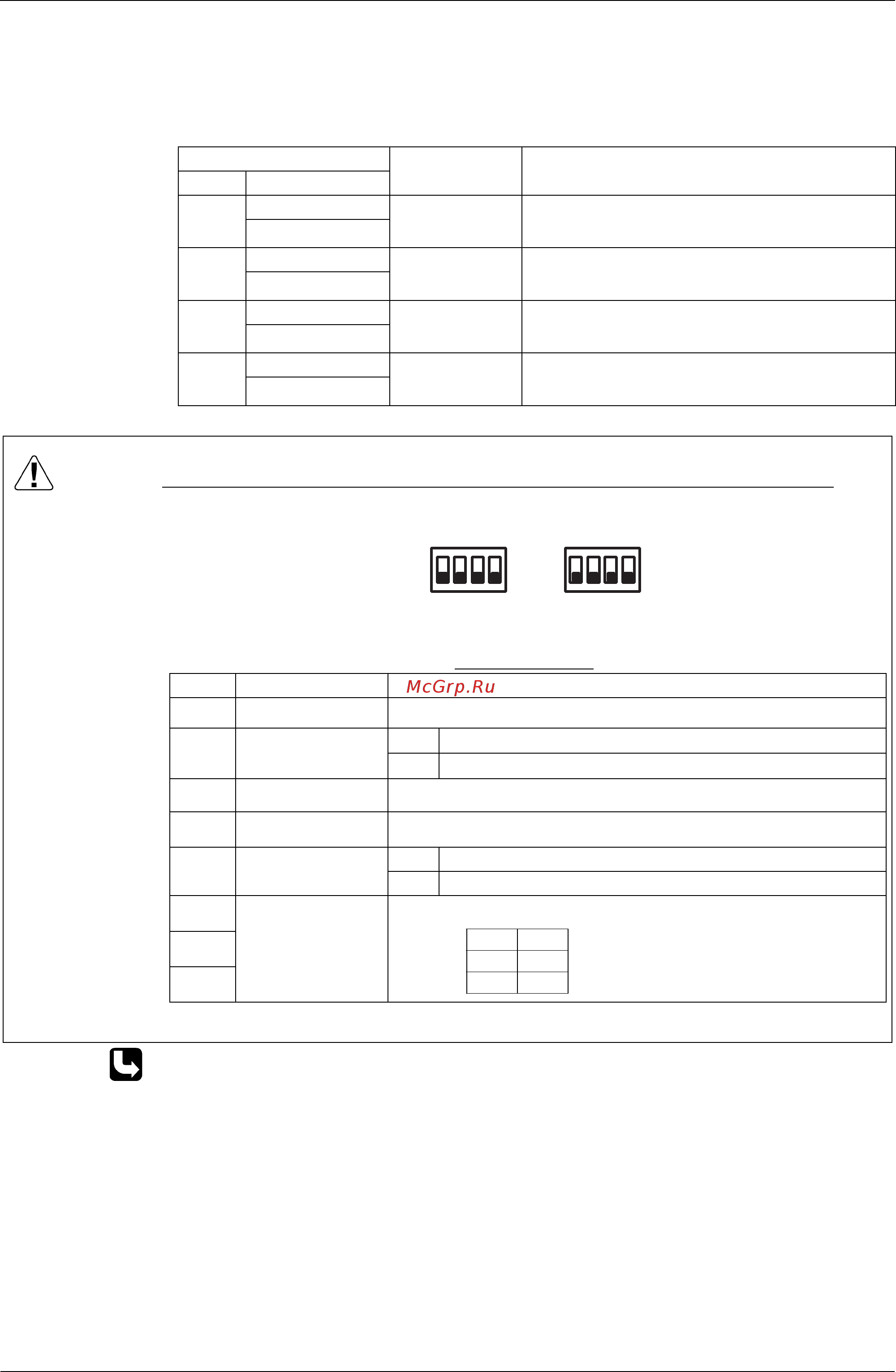

3.2 Field Setting from Outside Unit
3.2.1 Field Setting from Outside Unit
Setting by dip switches
The following field settings are made by dip switches on PC board.
Refer “DS1-1~4, DS2-1~4 setting detail” on next page.
Dipswitch
Setting item Description
No. Setting
DS1-1
ON
Cool/Heat select
Used to set cool/heat select by remote controller
equipped with outside unit.
OFF (Factory set)
DS1-2
~DS1-4
ON
Not used Do not change the factory settings.
OFF (Factory set)
DS2-1
~4
ON
Not used Do not change the factory settings.
OFF (Factory set)
DS3-1,
2
ON
Not used Do not change the factory settings.
OFF (Factory set)
Caution
DIP switch Setting after changing the main PC board (A1P) to spare parts PC board
When you change the main PC board (A1P) to spare parts PC board, please carry out the
following setting.
DIP Switch Detail
DS No. Item Contents
DS1-1
——
DS1-2 Domestic/Overseas
setting
ON Domestic Japan 200V (Mainly for domestic Japan)
OFF Overseas 400V (Mainly for overseas)
DS1-3
——
DS1-4
——
DS2-1 Domestic/Overseas
setting
ON Overseas
OFF Domestic Japan
DS2-2 HP setting
(Horse power)
DS2-3
DS2-4
1 2 3 4 1 2 3 4
DS1 DS2
ON
OFF
ON
OFF
810
DS2-2 ON OFF
DS2-3 OFF ON
DS2-4 OFF OFF
