Troubleshooting by Indication on the Remote Controller Si30-813
196 Troubleshooting
Troubleshooting
NO
YES
YES
Replace the HPS.
Improve defects.
Replace the high pressure sensor.
Replace the main PC board.
YES
NO
NO
YES
NO
YES
NO
Red
Connector for high
pressure sensor (red)
+
5V
Microcomputer
A/D input
Black
White
(4)
(3)
(1)
•

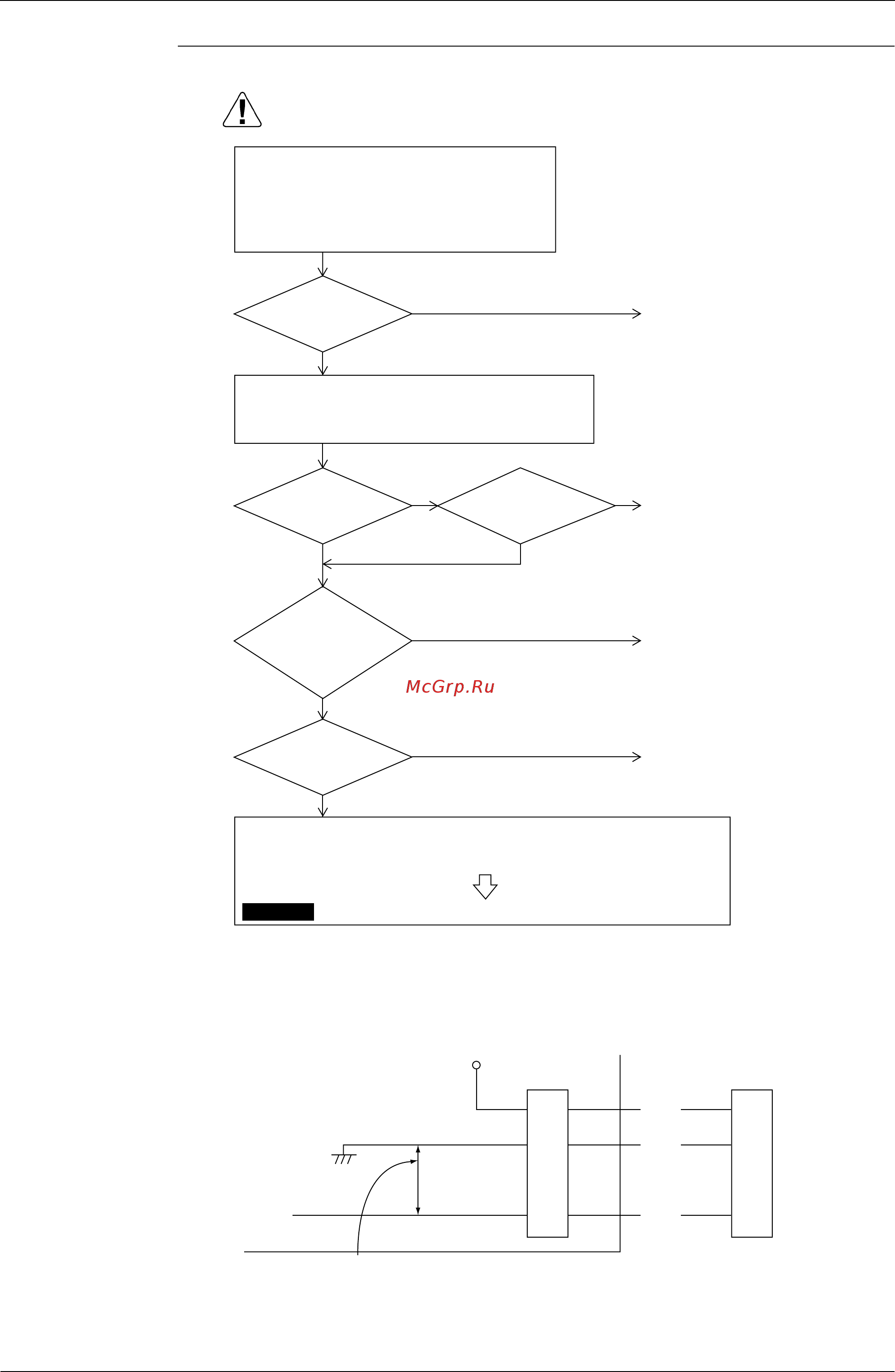

Set up a pressure gauge in the high pressure service port.
•
Connect the Service Checker.
•
Restart operation after resetting operation with a remote
controller.
Can the
emergency stop (E3) be
repeated?
Are high
pressure sensor
characteristics
normal?
(∗1)(
∗3)
Is PC board
detector pressure normal?
(∗2)
Is HPS
working value (4.0 MPa)
normal?
Measure the voltage (DC) between
these two points.
•
The high pressure sensor is normal and the main PC board pressure detection is
also normal.
•
In fact, high pressure is rising.
CHECK 1
:
Refer to page 261 to eliminate the causes of high pressure rise.
∗1 : Compare the pressure sensor voltage measurements with pressure gauge readings.
(For the pressure sensor, voltage is measured at the connector and converted to
pressure in accordance with page 311.)
∗2 : Compare “high pressure” checked with the Service Checker with pressure sensor
voltage measurements (refer to ∗1).
∗3 : Measure the voltage of the pressure sensor.
(2)
HP pressure sensor
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Check the following items:
Is the stop valve open?
Is the connector for HPS properly connected
to the main PC board?
Is the high pressure switch electrically
conductive?
Are all of
the above conditions
satisfied?
