Si30-813 Features
General Information 9
Originally, switching was performed by indoor
units, which lowers the operation capacities of
other indoor units. Now the switching can be
conducted on this new BS unit, successfully
reducing the effects to other indoor units when
compared to the VRV-WII system.

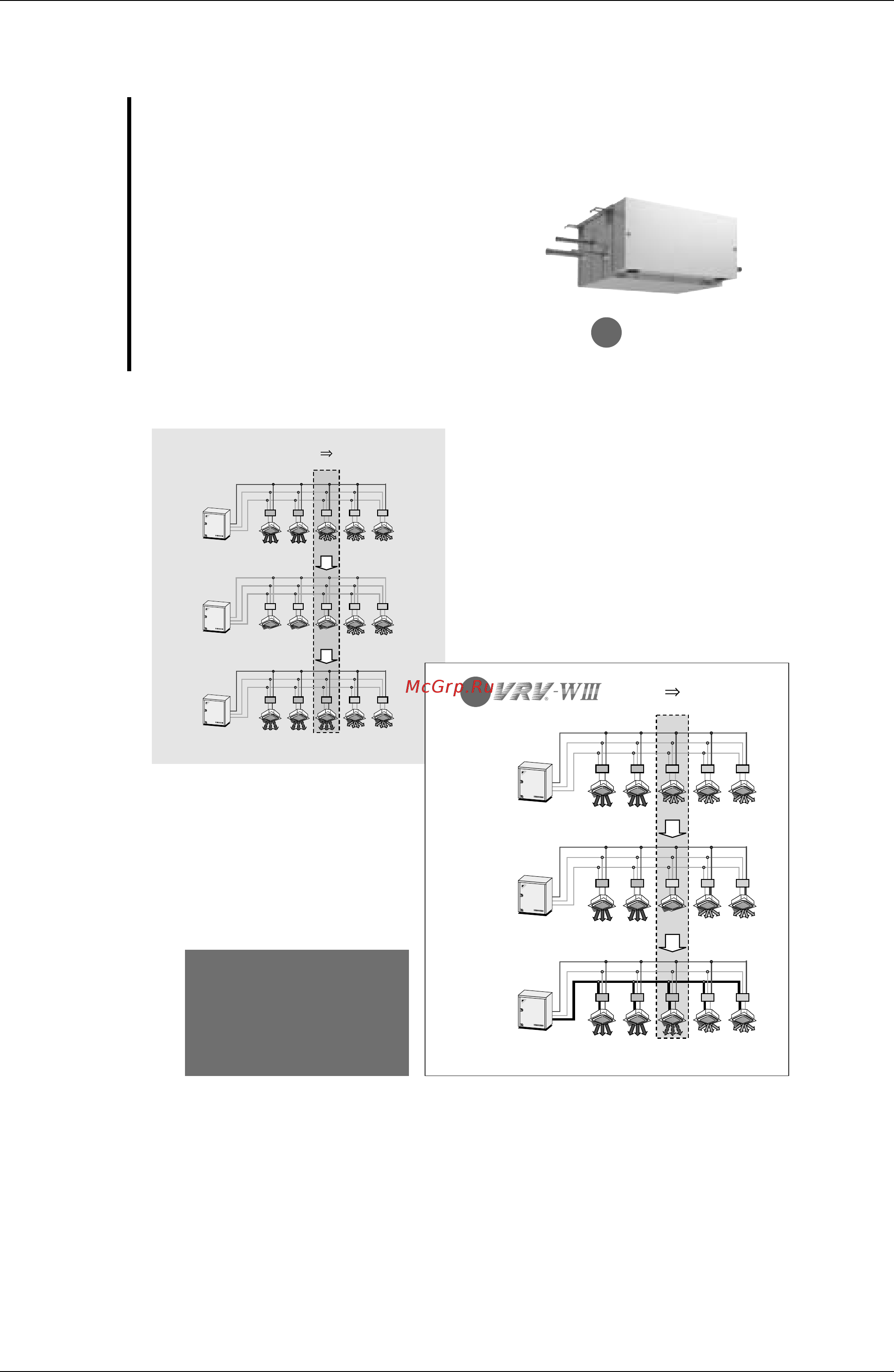

New BS unit for heat recovery can improve
comfortability by switching between cooling and
heating operation independently.
When switching from cooling to heating
with the conventional BS unit, the other
indoor units performing heating
operations also had to be stopped until
the changeover for the target indoor
unit had been completed.
Equalising the pressure of only the BSVQ can switch over the operation mode.
VRV-WII Cooling Heating
FAN OFF
Equalises the pressure
of whole system.
HOT START
Cooling Heating
FAN
OFF
Equalises the pressure of BSVQ only.
HOT
START
New
50Hz
BSVQ100PV1
BSVQ160PV1
BSVQ250PV1
60Hz
BSVQ36PVJU
BSVQ60PVJU
New
With the new BS unit, the
other indoor units can keep
heating while the target
indoor units are switched
from cooling to heating.
