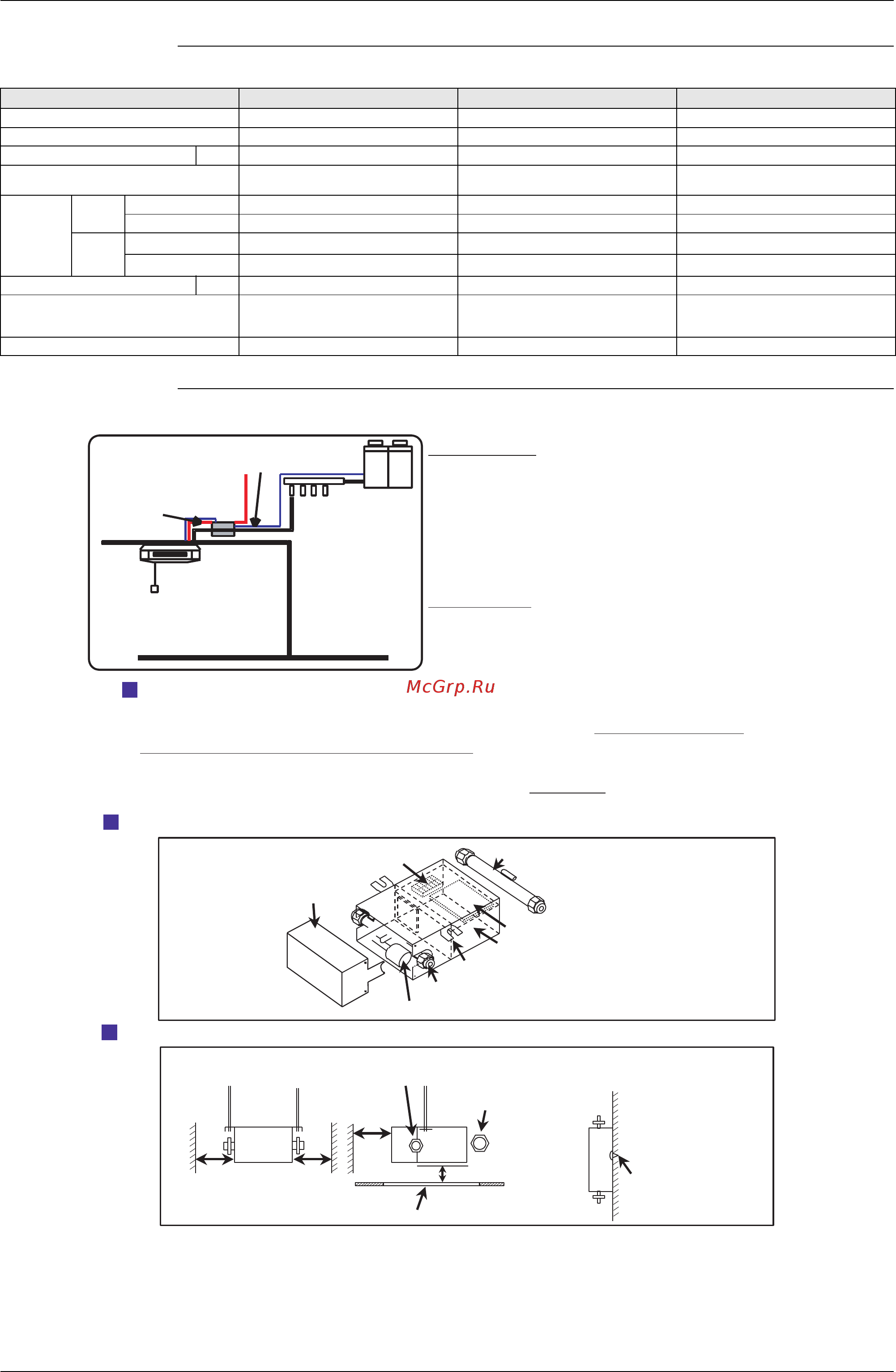

Si30-813 Specifications
Specifications 43
BEV Units
Connection Example
Model BEVQ71MAVE BEVQ100MAVE BEVQ125MAVE
Power Supply 1 Phase 50Hz 220~240V 1 Phase 50Hz 220~240V 1 Phase 50Hz 220~240V
Casing Galvanized Steel Plate Galvanized Steel Plate Galvanized Steel Plate
Dimensions: (H×W×D) mm 100×350×225 100×350×225 100×350×225
Sound Absorbing Thermal Insulation
Material
Flame and Heat Resistant Foamed
Polyethylene
Flame and Heat Resistant Foamed
Polyethylene
Flame and Heat Resistant Foamed
Polyethylene
Piping
Connection
Indoor
Unit
Liquid Pipes 9.5mm (Flare Connection) 9.5mm (Flare Connection) 9.5mm (Flare Connection)
Gas Pipes 15.9mm (Flare Connection) 15.9mm (Flare Connection) 15.9mm (Flare Connection)
Outdoor
Unit
Liquid Pipes
9.5mm (Flare Connection) 9.5mm (Flare Connection) 9.5mm (Flare Connection)
Suction Gas Pipes
15.9mm (Flare Connection) 15.9mm (Flare Connection) 15.9mm (Flare Connection)
Machine Weight (Mass) kg 3.0 3.0 3.5
Standard Accessories
Installation manual, Gas piping
connections, Insulation for fitting,
Sealing material, Clamps
Installation manual, Gas piping
connections, Insulation for fitting,
Sealing material, Clamps
Installation manual, Gas piping
connections, Insulation for fitting,
Sealing material, Clamps
Drawing No. 4D045387A 4D045387A 4D045388A
BRC1C62
Power
Power
supply
supply
line
line
Transmission
Transmission
line
line
Control
Wiring
Control
Wiring
1. Wiring Work
•The connecting line between SkyAir Indoor Unit
– BEV Unit : 3 cores…like a Transmission Line
•BEV Unit’s power supply line;
Single phase 2 line…like a VRV Indoor unit
•BEV Unit – other VRV indoor unit or outdoor unit –
: 2 cores…DIII network wiring (super wiring)
2. Piping work
SkyAir side,Outdoor Unit Side,They are both flare
connection.
- When connecting centralized-control device, it is necessary to
install an interface
adaptor for SkyAir series in an indoor unit.
- Distance between indoor unit and –BEV unit must be
within 5m.
Consideration matter
Installation pattern / maintenance
Outline figure
Gas pipe (With Thermistor,
Liquid pipe
Insulation pipe cover)
Electric valve drive part
Hanger
PC board
Terminal block
SW.BOX cover
Piping part cover
(Wall surface attachment is also possible)
1. Level installation (It hangs by two hangers)
2. Vertical Installation
(Wall Surface Mounted)
Service space*1
*1; Service space for switch box.
(Service access panel is required for the bottom side. When there is nothing, 350 or more spaces are required. )
*2; For electric valve drive part’s maintenance. (a control box is removed)
Installation
space
150 or more
Service
space*2
100 or more
Gas pipe
Screw fixed
(x2 Screws x2 place)
Hanger bolt Liquid pipe
Service access panel (450 x 450 )
