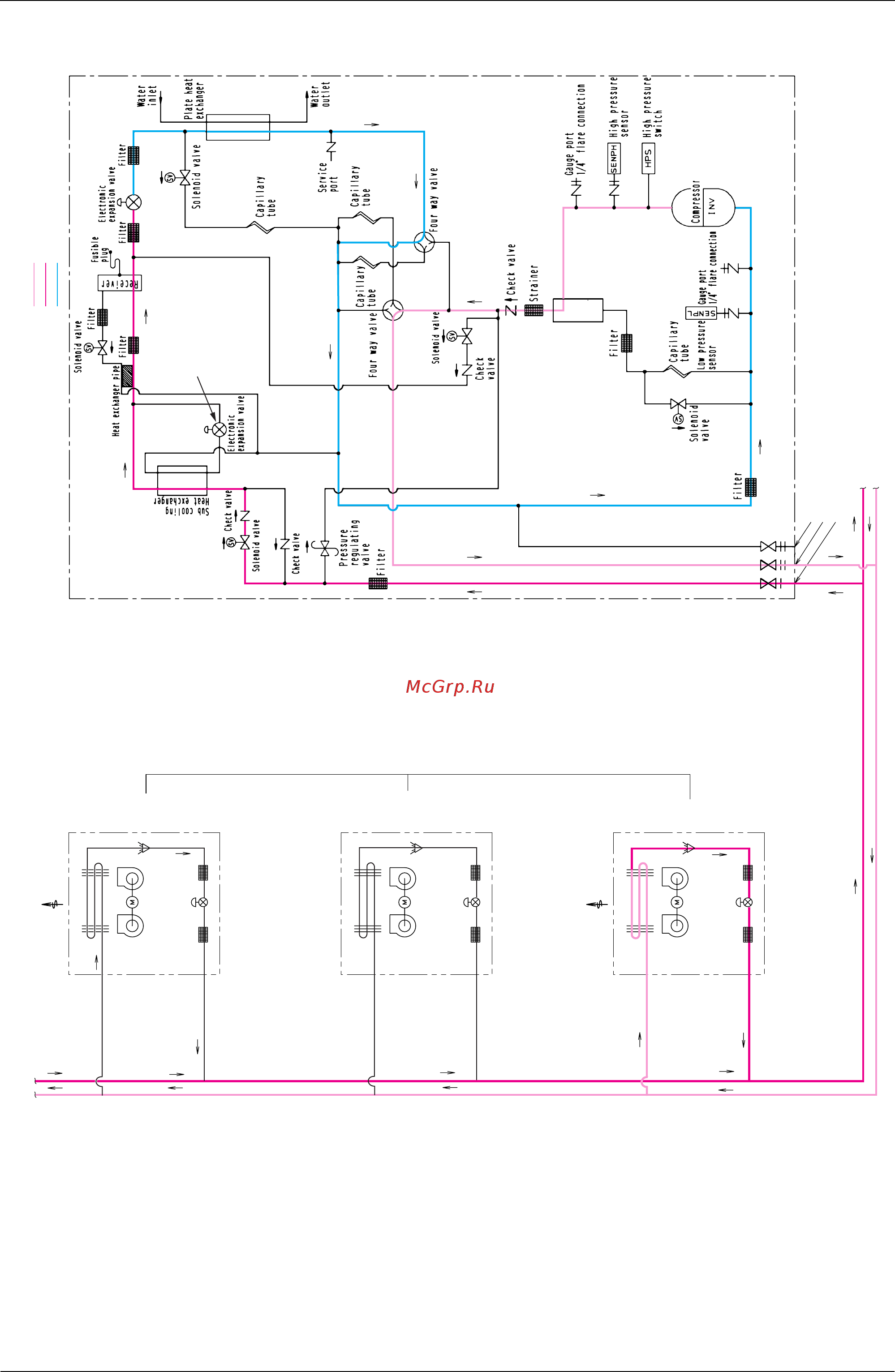

Refrigerant Flow for Each Operation Mode Si30-813
52 Refrigerant Circuit
B. Heating Operation
Indoor unit (Thermostat "OFF")
Fan ON
Indoor unit
To other indoor units
" ON "
Heating
oreration
Heating
Heat exchanger
Fan
Electronic
expansion valve
Filter Filter
Indoor unit
" OFF"
Heat exchanger
Fan
Electronic
expansion valve
Filter Filter
Indoor unit (Thermostat "ON")
Fan ON
Indoor unit
" ON "
Heat exchanger
Fan
Electronic
expansion valve
Filter Filter
High temperature, high pressure gas
High temperature, high pressure liquid
Low temperature, low pressure liquid or gas
Indoor unit
operation
Suction gas pipe (No pipe connection)
Discharge gas pipe
Liquid pipe
E3 control
Outside unit 1
To other outside units
Oil
separator
