Daikin RWEYQ30PY1 [219/342] Outside unit malfunction of discharge pipe thermistor r3t
![Daikin RWEYQ30PY1 [219/342] Outside unit malfunction of discharge pipe thermistor r3t](/views2/1713850/page219/bgdb.png)
Troubleshooting by Indication on the Remote Controller Si30-813
208 Troubleshooting
2.25
“
J3
”
Outside Unit: Malfunction of Discharge Pipe
Thermistor (R3T)
Remote
Controller
Display
J3
Applicable
Models
Outside unit
RWEYQ8P, 10P
Method of
Malfunction
Detection
Malfunction is detected from the temperature detected by discharge pipe temperature
thermistor.
Malfunction
Decision
Conditions
When a short circuit or an open circuit in the discharge pipe temperature thermistor is detected.
Supposed
Causes
Defect of thermistor (R3T) for outside unit discharge pipe
Defect of outside unit PC board (A1P)

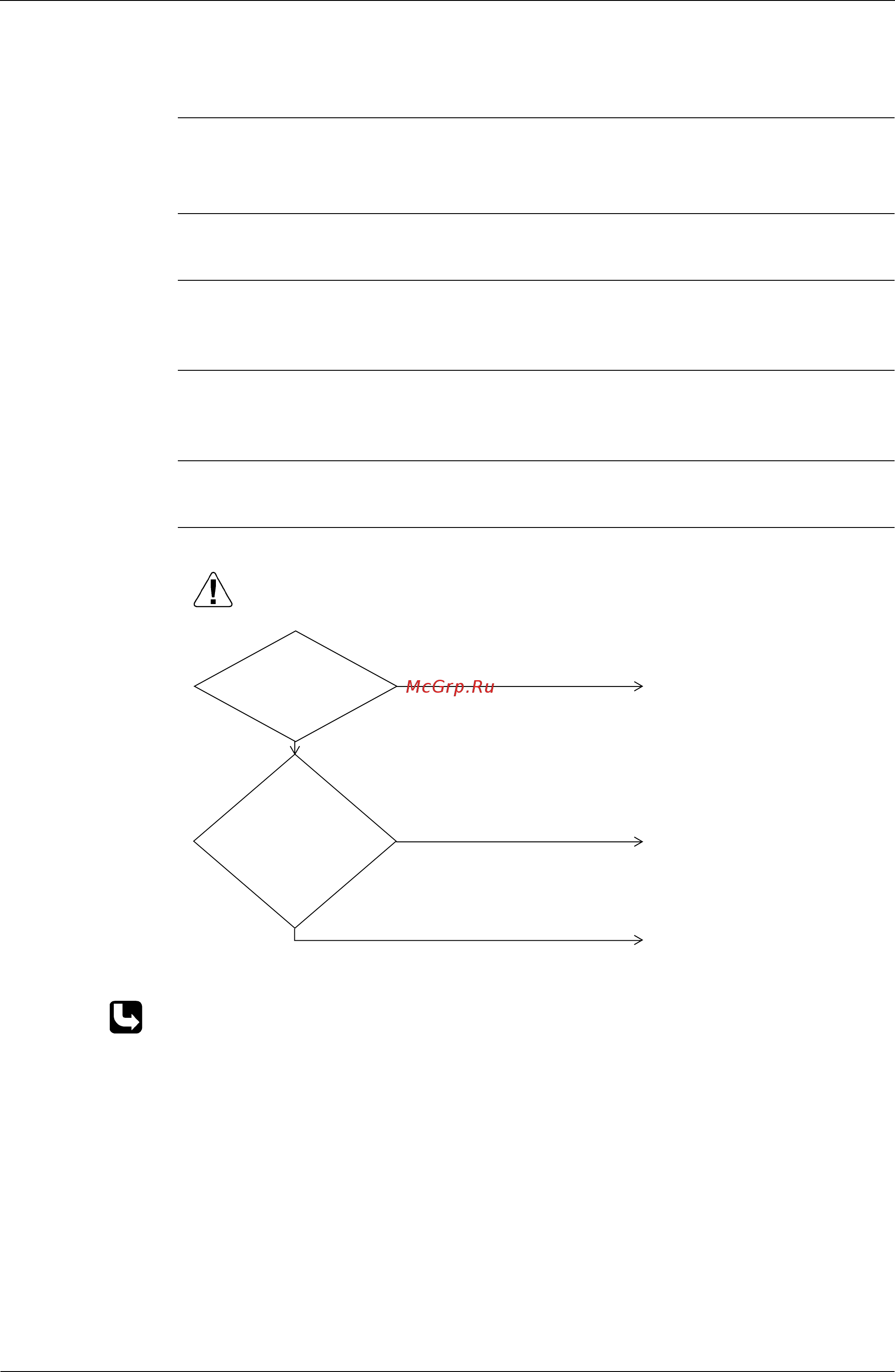

Troubleshooting
∗
1: Refer to thermistor resistance / temperature characteristics table on P.310.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Resistance
is normal when
measured after
disconnecting the thermistor
R3T from the outside
unit PC board.
(3.5kΩ~
400kΩ)
∗1
Replace outside unit PC board
A1P.
Connect the connector and turn on
again.
NO
NO
Replace the thermistor (R3T)
YES
YES
Connector
is connected to X34A
of outside unit
PC board
(A1P).
