Troubleshooting by Indication on the Remote Controller Si30-813
190 Troubleshooting
2.13
“
C6
”
Indoor Unit: Failure of Combination (Between Indoor
unit PC Board and Fan PC Board)
Remote
Controller
Display
C6
Applicable
Models
Indoor unit
FXMQ40~125P
Method of
Malfunction
Detection
Conduct open line detection with PC board for fan (A2P) using indoor PC board (A1P).
Malfunction
Decision
Conditions
When the communication data of PC board for fan (A2P) is determined as incorrect.
Supposed
Causes
The possible causes are:
Malfunction of PC board for fan (A2P).
Connection defect of capacity setting adaptor.
Setting mistake on site.

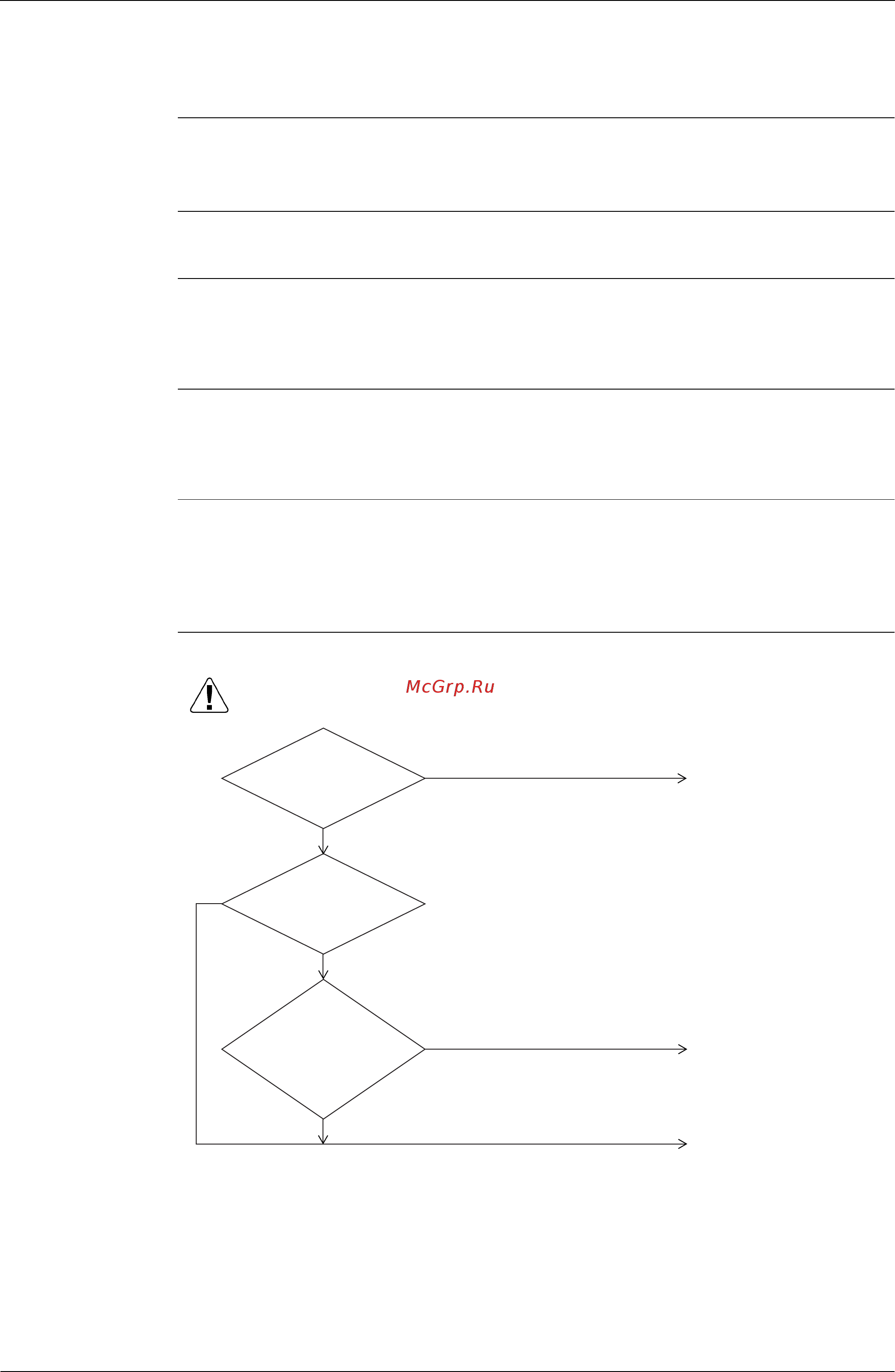

Troubleshooting
NO
Is the type of PC
board for fan (A2P)
correct?
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Was
indoor PC board
(A1P) replaced with spare
parts PC board?
YES
YES
YES
NO
NO
Was
correct
capacity setting
adaptor installed when
replacing it with spare
parts PC board?
After establishing
transmission for indoor and
outdoor, diagnose the
operation again.
Replace it with correct PC
board for fan (A2P).
Install correct capacity
setting adaptor.
