DD

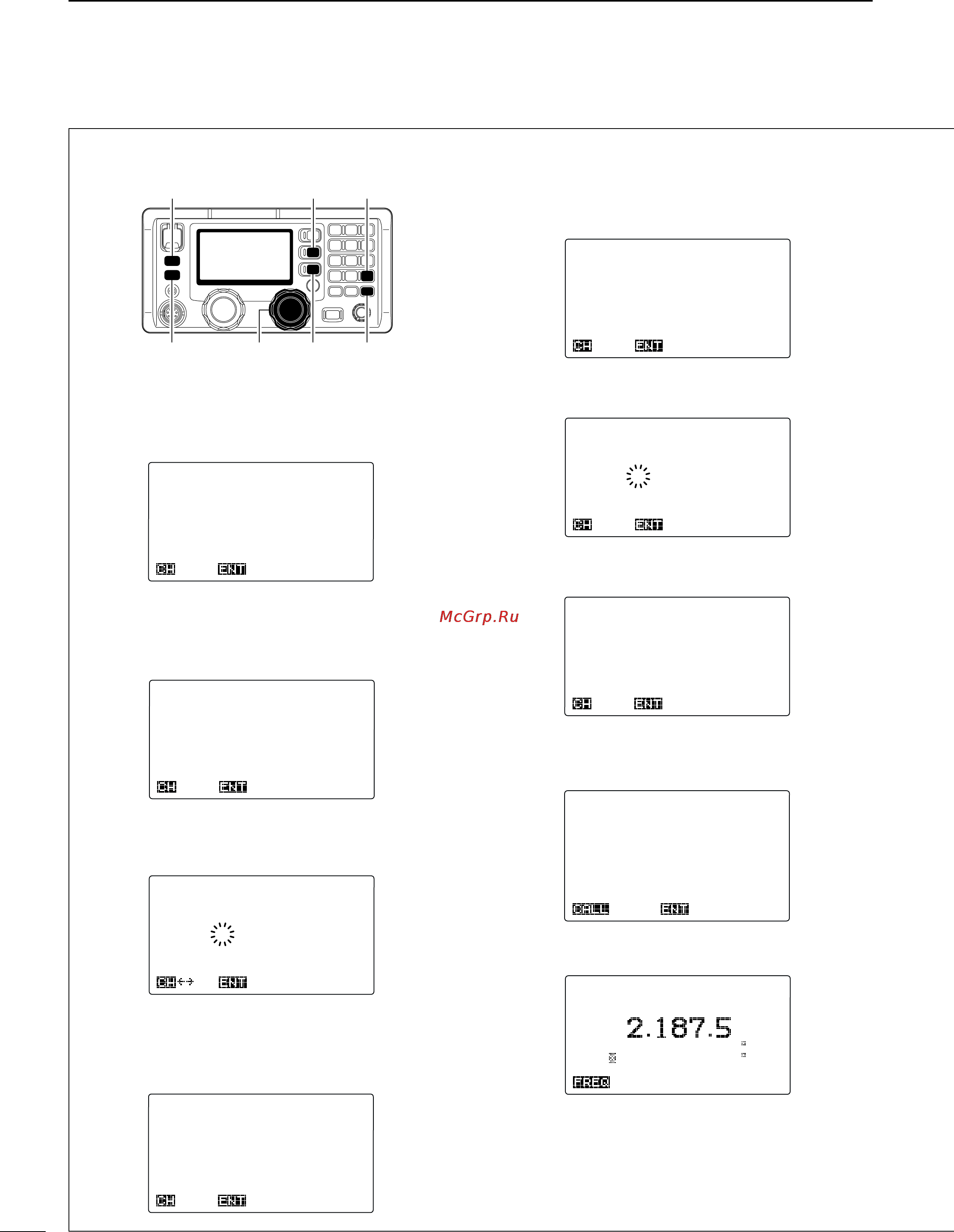

Operation for distress call to ships
22
7
CALL PROCEDURE
2001 NEW 2001 NEW
q Push [DSC] to select DSC watch mode.
w Push [MODE
SET
] to select the DSC menu.
e Rotate [CH] to select “Individual,” then push
[ENT].
r Rotate [CH] to select “Distress,” then push
[ENT].
t Rotate [CH] to select the desired pre-programmed
ID, or “Manual set,” then push [ENT].
✔ When pre-programmed ID is selected, go to
step u.
y
Enter the desired 9-digit MMSI code via the keypad.
✔ The number “0 (zero)” cannot be entered for the 1st
digit, as the 1st digit “0” means group code.
u Rotate [CH] to select 1st telecommand, then push
[ENT].
✔ When “No information” is selected, go to
step !0.
i Rotate [CH] to select the desired pre-programmed
traffic frequency, or “Manual set” then push
[ENT].
✔ When pre-programmed traffic frequency is se-
lected, go to step !0.
o Enter the desired transmit and receive traffic fre-
quency via the keypad, then push [ENT].
!0 Rotate [CH] to select the desired calling frequency,
then push [ENT].
!1 The call stand-by screen is displayed as follows,
verify the calling condition then push and hold
[CANCEL/CALL] for 1 sec. to start calling.
!2 After the call, wait for an acknowledgement call.
• The calling is performed one time only.
RX
J2B
GPS
<
Wait
for
ACK
>
Individual
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
******
Individual
******
---------
Call
---------
Category:Distress
To:987654321
Traffic:J3E
TX
2134.0kHz
RX
2134.0kHz
Call
Freq:TX
2187.5kHz
RX
2187.5kHz
Write-Menu
Call
******
Individual
******
----
Call
frequency
----
2187.5kHz
4207.5kHz
6312.0kHz
8414.5kHz
12577.0kHz
16804.5kHz
Ç
OKSEL
******
Individual
******
--
Traffic
frequency
---
TX:_2134.0kHz
RX:_2134.0kHz
OKSEL
******
Individual
******
--
Traffic
frequency
---
Manual
set
T:
4567.0kHz
IC-M802-1
R:
4567.0kHz
T:12345.0kHz
IC-M802-2
R:12345.0kHz
Ç
OKSEL
******
Individual
******
---
1st
telecommand
----
J3E
No
information
Ç
OKSEL
******
Individual
******
------
Address
ID
------
987654321
OK
******
Individual
******
------
Address
ID
------
Manual
set
IC-M802-1
123456789
IC-M802-2
123456788
IC-M802-3
123456787
IC-M802-4
123456786
IC-M802-5
123456785
Ç
OKSEL
******
Individual
******
-------
Category
-------
Routine
Safety
Urgency
Distress
Ç
OKSEL
[MODE SET][ENT][DSC]
[FREQ/CH][CH] [F][CANCEL/CALL]
