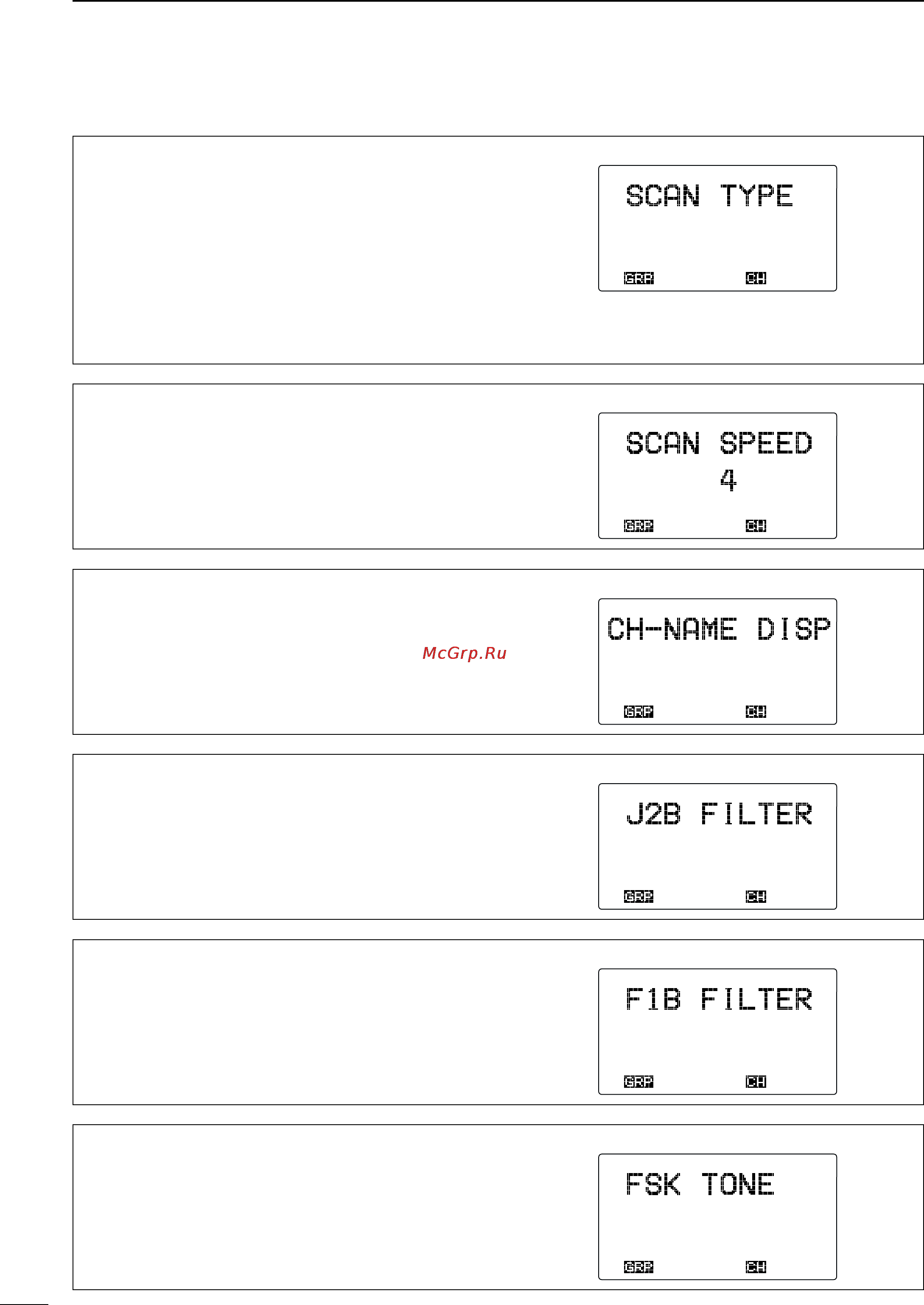

Initial set mode items (continued)
Scan type
This item selects one of the following scan functions.
Programmed scan searches signals within the fre-
quency range and activates slowly while squelch is
open and fast while squelch is closed.
Channel scan and channel resume scan searches 20
channels around a user selected channel, or
searches all ITU channels in the band when an ITU
channel is selected. (default: CH SCAN)
***
SET
MODE
***
CH
SCAN
CH-RESUME
SCAN
PROGRAM
SCAN
ÇÇ
ITEM SEL
Scan speed
This item adjusts the scan speed (rate at which chan-
nels are searched). The scan speed can be set from 1
to 10 with “1” being the fastest and “10” being the
slowest. (default: 4)
***
SET
MODE
***
ITEM SEL
Display type
The upper half of the display can be set to display a
programmable channel name or a receive frequency
according to your needs. (default: CH-NAME)
***
SET
MODE
***
CH-FREQUENCY
CH-NAME
ÇÇ
ITEM SEL
J2B filter
Select the IF filter passband width for J2B mode op-
eration from wide, mid and narrow.
• WIDE : 2.4 kHz
• MIDDLE : 1.0 kHz
• NARROW : 500 Hz (default)
***
SET
MODE
***
WIDE
MIDDLE
NARROW
ÇÇ
ITEM SEL
F1B filter
Select the IF filter passband width for F1B mode op-
eration from normal and narrow.
• WIDE : 1.0 kHz
• NARROW : 500 Hz (default)
***
SET
MODE
***
WIDE
NARROW
ÇÇ
ITEM SEL
FSK tone frequency
Several mark frequencies are used for FSK operation.
This item selects an FSK mark frequency for almost
any FSK system from 1200 Hz, 1275 Hz, 1487.5 Hz,
1615 Hz, 2100 Hz and 2125 Hz. (default: 1615Hz)
***
SET
MODE
***
1275Hz
1487.5Hz
1615Hz
2100Hz
ÇÇ
ITEM SEL
