40
8

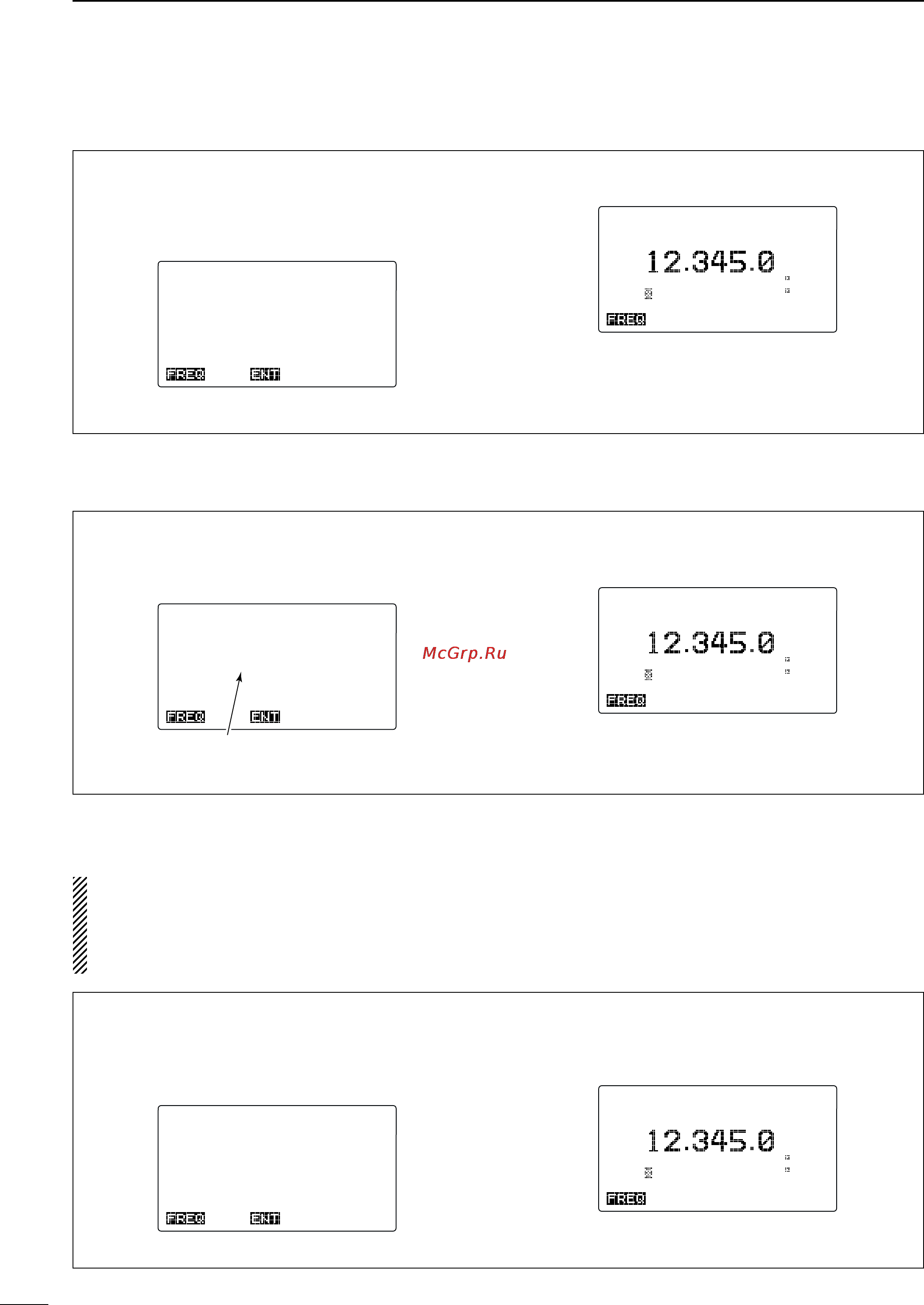

WHEN RECEIVING A CALL
2001 NEW 2001 NEW
■ All ships call
q When receiving an All ships call, an emergency
alarm may sound (or beeps when the category is
Safety) and “All ships” is displayed as below.
•Push [CANCEL/CALL] to stop the alarm when the all
ships call in distress or urgency is received.
w Push [ENT] to listen to the traffic frequency for an
announcement from the calling station.
e Communicate with the ship when the calling ship
requires such.
r Push [FREQ/CH] when the call does not require
any action on your part.
RX
J3E
<
Traffic
>
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
GPS
************************
*
All
ships
*
*
123456789
*
************************
TrafficExit
■ Group call
q When receiving an Group call, beeps may sound
and “Group” is displayed as below.
•Push [CANCEL/CALL] to stop the alarm when an emer-
gency or urgency group call is received.
w Push [ENT] to listen to the traffic frequency for an
announcement from the calling ship (mother ship
in your group).
e Communicate via the microphone with the ship
when the calling ship requires such.
r Push [FREQ/CH] to return to DSC watch mode.
RX
J3E
<
Traffic
>
Lat
34
34'N
Lon134
34'E
12:34
SP
Exit
GPS
************************
*
Group
*
*
ICOM
M802
*
************************
TrafficExit
Calling station’s name appear when
the same ID is preprogrammed.
■ Geographical area call
NOTE: The IC-M802 will not function for the geo-
graphical call when:
• Your position is out of the specified area.
•GPS data is not connected to [GPS] and you
haven’t input the position information manually.
q When receiving a geographical area call and your
position is in the specified area, “Geographic”
is displayed as below.
•Push [CANCEL/CALL] to stop the emergency alarm
when the call is sent in distress.
w Push [ENT] to select the traffic frequency, and lis-
ten for an announcement from the calling station.
•Rotate [CH] to scroll text to see the hidden lines infor-
mation.
e Push [FREQ/CH] to return to DSC watch mode.
RX
J3E
<
Traffic
>
Lat
34
34'N
Lon134
34'E
12:34
SP
Exit
GPS
************************
*
Geographic
*
*
123456789
*
************************
TrafficExit
IC-M802_USA.qxd 02.5.30 11:40 Page 40
