30
7
CALL PROCEDURE
2001 NEW 2001 NEW
• When selecting ‘Individual’
e Select “Safety” as the category using [CH],
then push [ENT].
r Select the desired 9-digit ID code, then push
[ENT].
•Use [CH] to select the ID code when the desired ship’s
ID is pre-programmed.
•Select “Manual set” with [CH] then push [ENT],
after that, enter the desired 9-digit ID via the keypad.
t Rotate [CH] to select 1st telecommand, then push
[ENT].
✔ When “No information” is selected, go to
step i.
y Rotate [CH] to select the desired pre-programmed
traffic frequency, or “Manual set” then push
[ENT].
✔ When the pre-programmed traffic frequency is
selected, go to step i.
u Enter the desired transmit and receive traffic fre-
quency via the keypad, then push [ENT].
i Rotate [CH] to select the desired calling frequency,
then push [ENT].

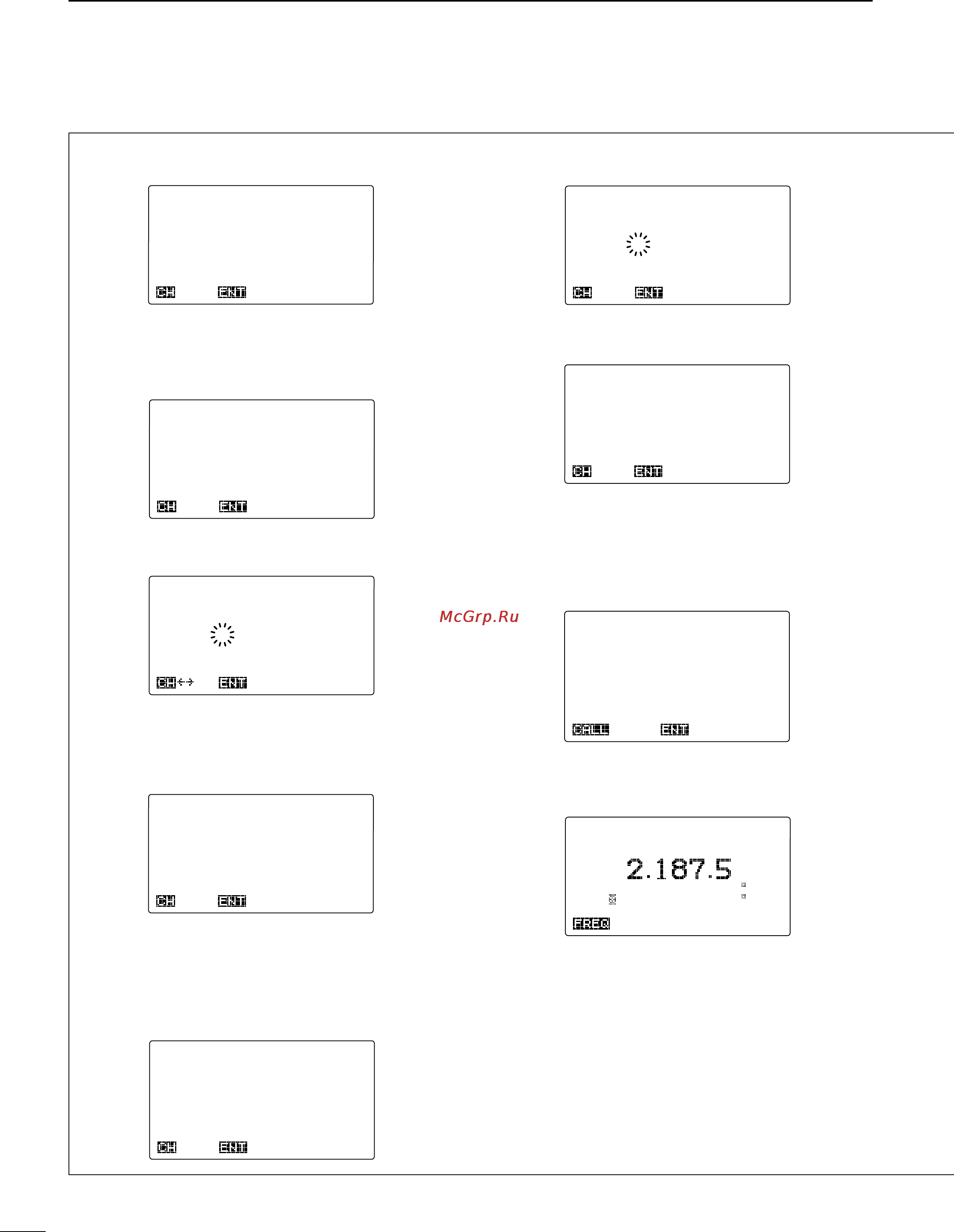

o The calling stand-by screen is displayed as fol-
lows, verify the calling condition then push and
hold [CANCEL/CALL] for 1 sec. to transmit the call.
•Push and hold [ENT] for 1 sec. to store the calling con-
dition into the TX memory described in pages 23 and
43, if desired.
!0 After sending the call, the transceiver waits for an
acknowledgement.
RX
J2B
GPS
<
Wait
for
ACK
>
Individual
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
******
Individual
******
---------
Call
---------
Category:Safety
To:987654321
Traffic:J3E
TX
2134.0kHz
RX
2134.0kHz
Call
Freq:TX
2187.5kHz
RX
2187.5kHz
Write-Menu
Call
******
Individual
******
----
Call
frequency
----
2187.5kHz
4207.5kHz
6312.0kHz
8414.5kHz
12577.0kHz
16804.5kHz
Ç
OKSEL
******
Individual
******
--
Traffic
frequency
---
TX:_2134.0kHz
RX:_2134.0kHz
OKSEL
******
Individual
******
--
Traffic
frequency
---
Manual
set
T:
4567.0kHz
IC-M802-1
R:
4567.0kHz
T:12345.0kHz
IC-M802-2
R:12345.0kHz
Ç
OKSEL
******
Individual
******
---
1st
telecommand
----
J3E
No
information
Ç
OKSEL
******
Individual
******
------
Address
ID
------
987654321
OK
******
Individual
******
------
Address
ID
------
Manual
set
IC-M802-1
123456789
IC-M802-2
123456788
IC-M802-3
123456787
IC-M802-4
123456786
IC-M802-5
123456785
Ç
OKSEL
******
Individual
******
-------
Category
-------
Routine
Safety
Urgency
Distress
Ç
OKSEL
IC-M802_USA.qxd 02.5.30 11:40 Page 30
