33
7
CALL PROCEDURE
7
2001 NEW

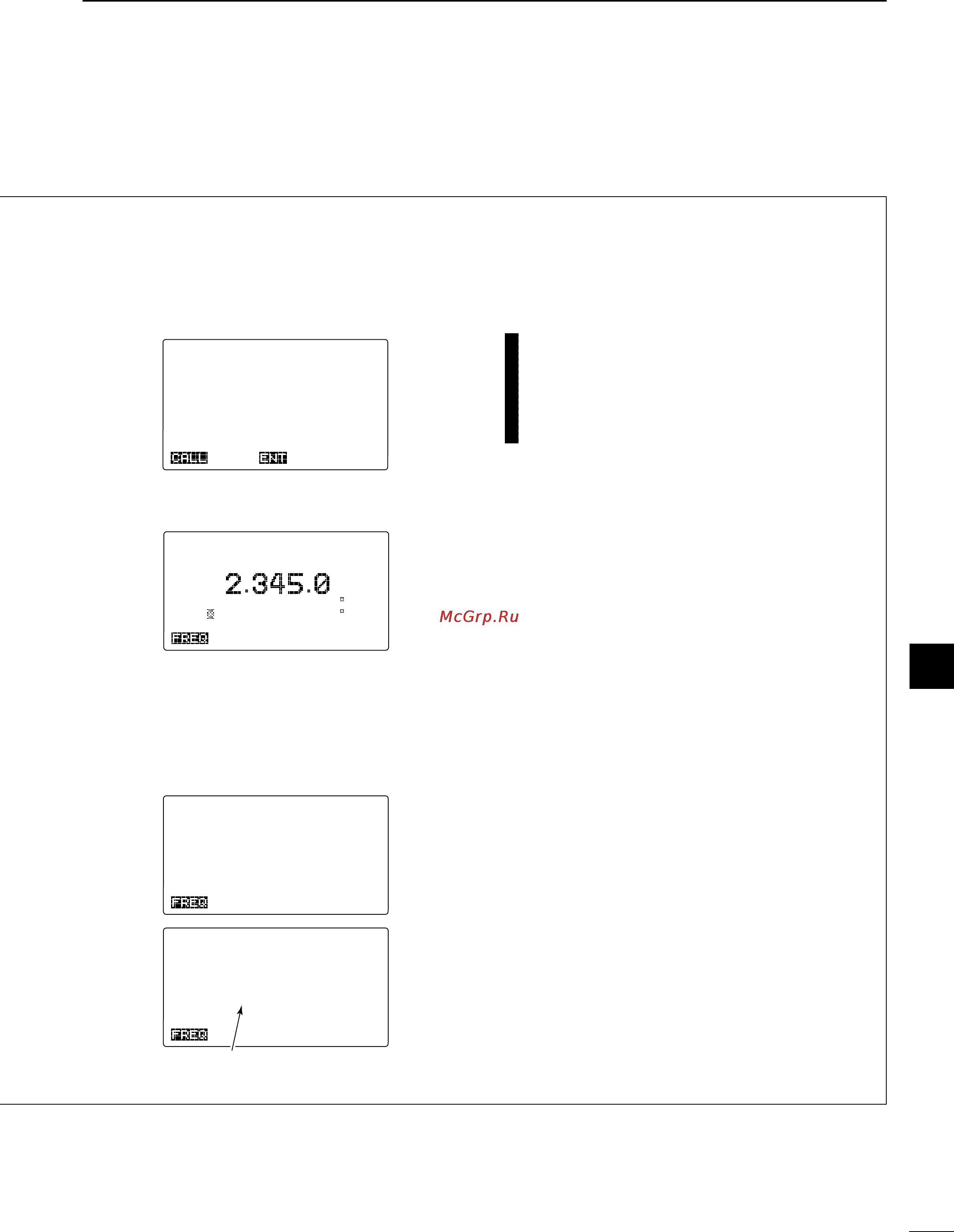

!0 The calling stand-by screen is displayed as fol-
lows, verify the calling condition then push and
hold [CANCEL/CALL] for 1 sec. to transmit the rou-
tine call.
•Push and hold [ENT] for 1 sec. to store the calling con-
dition into the TX memory described in pages 23 and
43, if desired.
!1 After sending the call, the transceiver waits for an
acknowledgement.
!2 When receiving an acknowledgement, the display
shows the received ID code, or the called station
name.
• Push [FREQ/CH];
-to select the traffic frequency if the called station is
able to comply to the call.
- to return to DSC watch mode when unable.
!3 Announce the following message to stations.
- The 9-digit identity (or call sign or other identifi-
cation) of the station which you want to call.
- “This is ..... (your ship name).”
- The 9-digit identity OR call sign (or other identifi-
cation of the ship).
When no acknowledgement is received:
q Wait for 5 min., then call again on the same or
a different frequency.
w If no acknowledgement is received after a 2nd
call, wait for at least 15 min. before repeating
the call.
************************
*
Individual
ACK
*
*
IC-M802
*
*
Able
to
comply
*
************************
Exit
************************
*
Individual
ACK
*
*
IC-M802
*
*
Unable
to
comply
*
*
Operator
unavailable
*
************************
Exit
When the called station is unable to comply
to the call, the reason may be displayed.
RX
J2B
GPS
<
Wait
for
ACK
>
Individual
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
******
Individual
******
---------
Call
---------
Category:Routine
To:987654321
Traffic:J3E
TX
4567.0kHz
RX
4567.0kHz
Call
Freq:TX
2345.0kHz
RX
2345.0kHz
Write-Menu
Call
IC-M802_USA.qxd 02.5.30 11:40 Page 33
