2001 NEW
51
12
SET MODE
12
DD

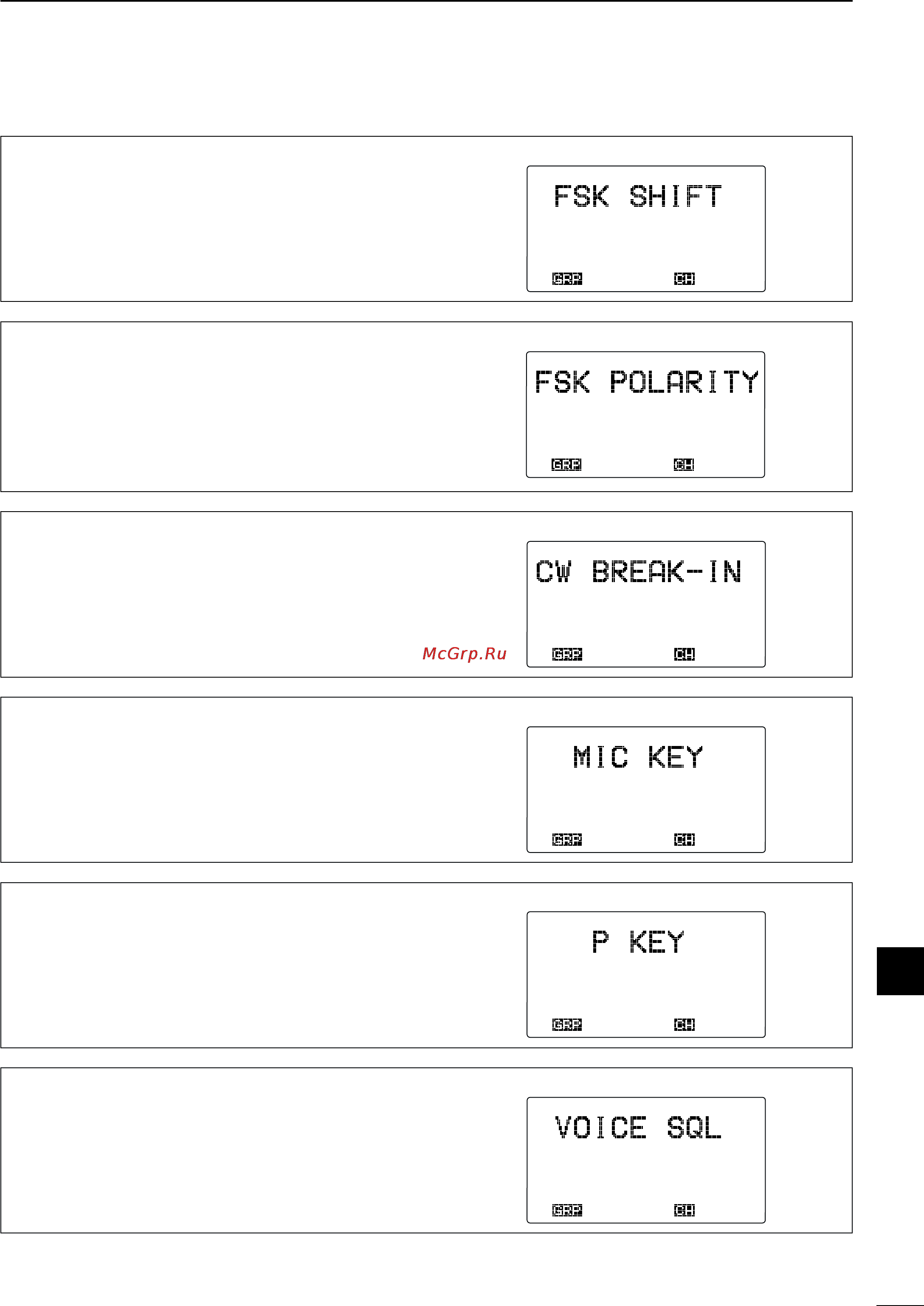

Initial set mode items (continued)
FSK shift frequency
Several shift frequencies are used for FSK operation.
This item selects an FSK shift frequency for almost
any FSK system from 850 Hz, 425 Hz, 200 Hz and
170 Hz. (default: 170 Hz)
***
SET
MODE
***
170Hz
200Hz
425Hz
850Hz
ÇÇ
ITEM SEL
FSK polarity
Normal and reverse polarities are available for FSK
operations. This item allows you to select one of
these polarities.
• NORMAL : Key open=space; Key close=mark
(default)
• REVERSE : Key open=mark; Key close=space
***
SET
MODE
***
NORMAL
REVERSE
ÇÇ
ITEM SEL
CW break-in function
The CW break-in function (in A1A mode) toggles
transmit and receive with CW keying. Full break-in al-
lows you to receive signals between transmitted key-
ing pulses during CW transmission. Semi break-in al-
lows you to mute receiving until keying stops with
some delay time. (default: FULL)
***
SET
MODE
***
OFF
DELAY
FULL
ÇÇ
ITEM SEL
Microphone keys
This item activates/deactivates the keys on the HM-
135
HAND MICROPHONE
([P], [∫] and [√]).
Refer below on how to program the [P] key.
(default: ON)
***
SET
MODE
***
OFF
ON
ÇÇ
ITEM SEL
[P] key function
This item assigns a function to the [P] key on the HM-
135
HAND MICROPHONE
to activate it the same as if
making the key operation for [TUNE
THRU
],
[MODE
SET
], [F]+[1
NB
], [F]+[2
SQL
], [F]+[3
SCAN
],
[F]+[4
SP
×
] or [F]+[5
AGC
×
]. (default: MODE)
***
SET
MODE
***
TUNE
MODE
NB
SQL
ÇÇ
ITEM SEL
Voice squelch
This item turns the voice squelch function ON and
OFF when operating in J3E and H3E modes.
When the function is set to OFF, the squelch acts as
an S-meter squelch for J3E and H3E modes.
(default: ON)
***
SET
MODE
***
OFF
ON
ÇÇ
ITEM SEL
IC-M802_USA.qxd 02.5.30 11:40 Page 51
