2001 NEW
39
8
WHEN RECEIVING A CALL
8

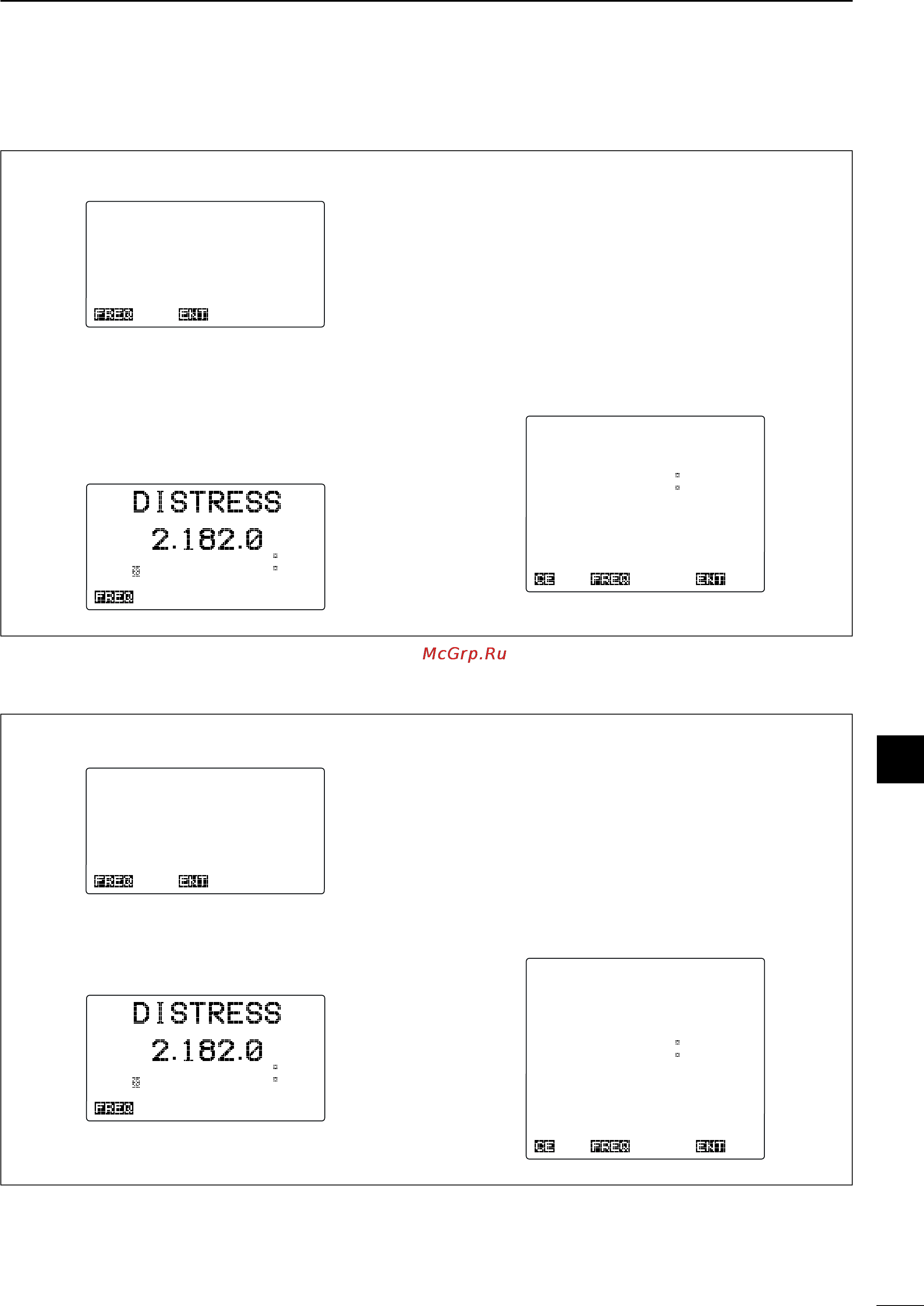

■ Distress call
q When receiving a distress call, an emergency
alarm sounds and the display below appears.
w Push [CANCEL/CALL] to stop the alarm, if desired.
•One distress call sequence is sent 5 times repeatedly
within approx. 30 sec. The emergency alarm sounds at
each reception.
e Push [ENT] to set the transceiver to the distress
phone frequency, then monitor the communication
from the coast station to the ship in distress.
r Select the received distress call memory channel
to check the position of the ship in distress.
➥ Push [FREQ/CH] then [RX
CLAR
] to select “RX
memory“ screen.
➥ Select “Distress” with [CH] then push
[ENT].
➥ Push [ENT] again.
•The received distress call memory is displayed at
the top line with “*” symbol.
•When the ship is close to you, communication should
be monitored continuously.
•The traffic frequency is monitored even when the mem-
ory contents is displayed.
******
RX
memory
*******
-------
Distress
-------
Distress
ID:123456789
Undesignated
Position:Lat
34
34'N
Lon134
34'W
UTC
12:34
Traffic:J3E
TX
2182.0kHz
RX
2182.0kHz
RX
Freq:TX
2187.5kHz
RX
2187.5kHz
DEL
OKCancel
RX
J3E
<
Traffic
>
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
GPS
************************
*
Distress
*
*
123456789
*
************************
TrafficExit
q When receiving a distress relay call, an emergency
alarm sounds and the display below appears.
w Push [CANCEL/CALL] to stop the alarm, if desired.
e Push [ENT] to set the transceiver to the distress
phone frequency, then monitor the communication
from the coast station to the ship in distress.
r Select the received distress call memory channel
to check the position of the ship in distress.
➥ Push [FREQ/CH] then [RX
CLAR
] to select “RX
memory“ screen.
➥ Select “Others” with [CH] then push [ENT].
➥ Push [ENT] again.
•The received distress relay call memory (DTRS
RLY) is displayed at the top line with “*” symbol.
•When the ship is close to you, communication should
be monitored continuously.
•The traffic frequency is monitored even when the mem-
ory contents is displayed.
******
RX
memory
*******
-----
Distress
RLY
-----
From:001234567
Distress
ID:123456789
To
all
ships
Undesignated
Position:Lat
34
34'N
Lon134
34'W
UTC
12:34
Traffic:J3E
TX
2182.0kHz
RX
2182.0kHz
RX
Freq:TX
2187.5kHz
RX
2187.5kHz
DEL
OKCancel
RX
J3E
<
Traffic
>
Lat
34
34'N
Lon135
34'E
12:34
SP
Exit
GPS
************************
*
Distress
RLY
*
*
001234567
*
************************
TrafficExit
■ Distress relay call
IC-M802_USA.qxd 02.5.30 11:40 Page 39
