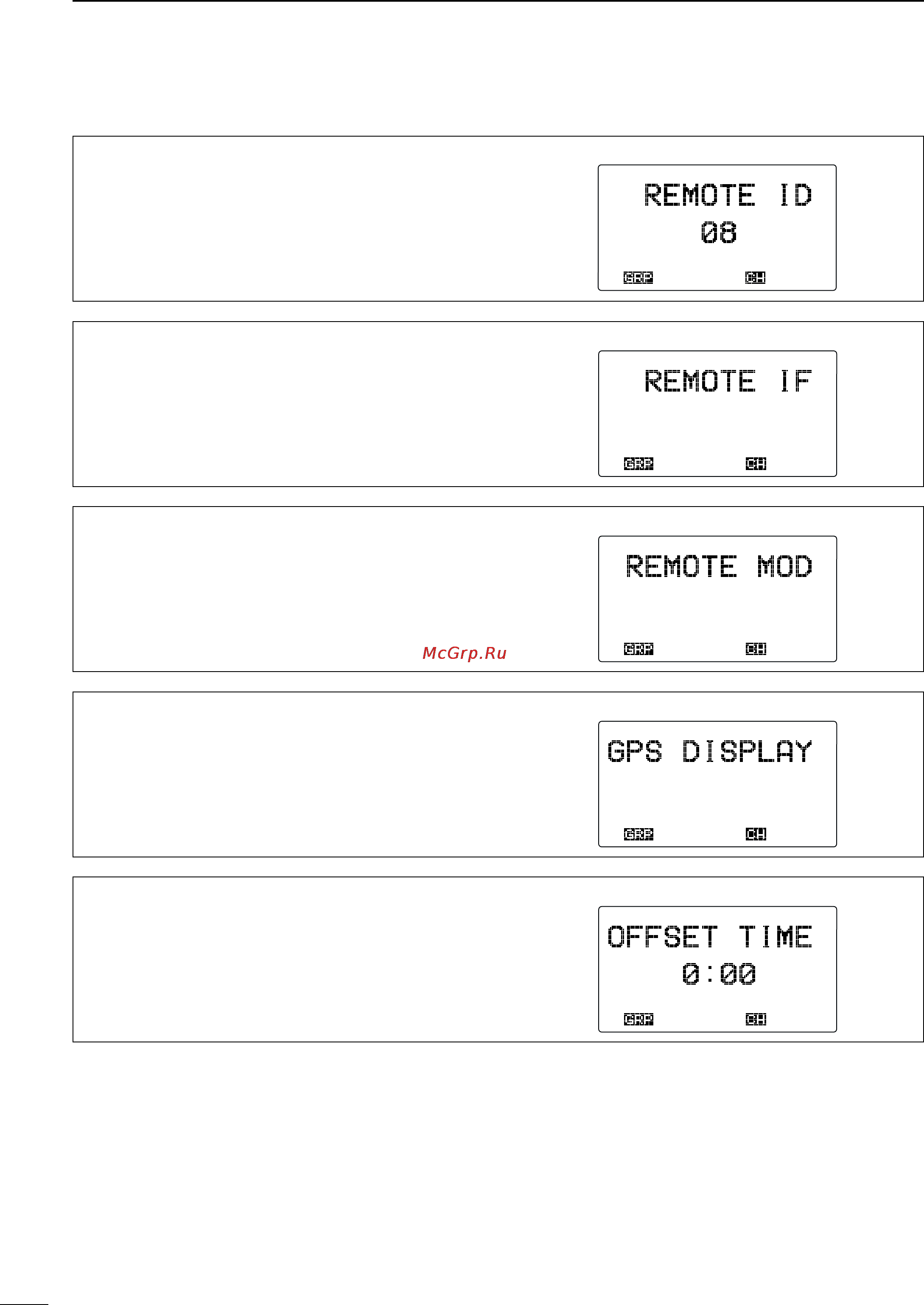

Initial set mode items (continued)
REMOTE ID
This item selects the ID for the transceiver from 1 to
99. (default: 08)
***
SET
MODE
***
ITEM SEL
REMOTE connector interface
This item selects the interface format for [REMOTE]
connector. (default: NMEA)
***
SET
MODE
***
NMEA
RS-232C
ÇÇ
ITEM SEL
Modulation input/output selection
This item selects the input/output terminal for signals
to/from an external unit, such as an HF e-mail
modem, TNC (Terminal Node Controller), etc.
(default: AF/MOD)
***
SET
MODE
***
AF/MOD
ACC
MIC
ÇÇ
ITEM SEL
Position indication type
Select the position indicating type from simple and de-
tail.
• SIMPLE : Hides second digits (default)
• DETAIL : Shows second digits
***
SET
MODE
***
SIMPLE
DETAIL
ÇÇ
ITEM SEL
Offset time
Set the offset time between the UTC and local time
within –12:00 to +12:00 in 10 minutes steps.
(default: 0:00)
***
SET
MODE
***
ITEM SEL
