23
7
CALL PROCEDURE
7
2001 NEW

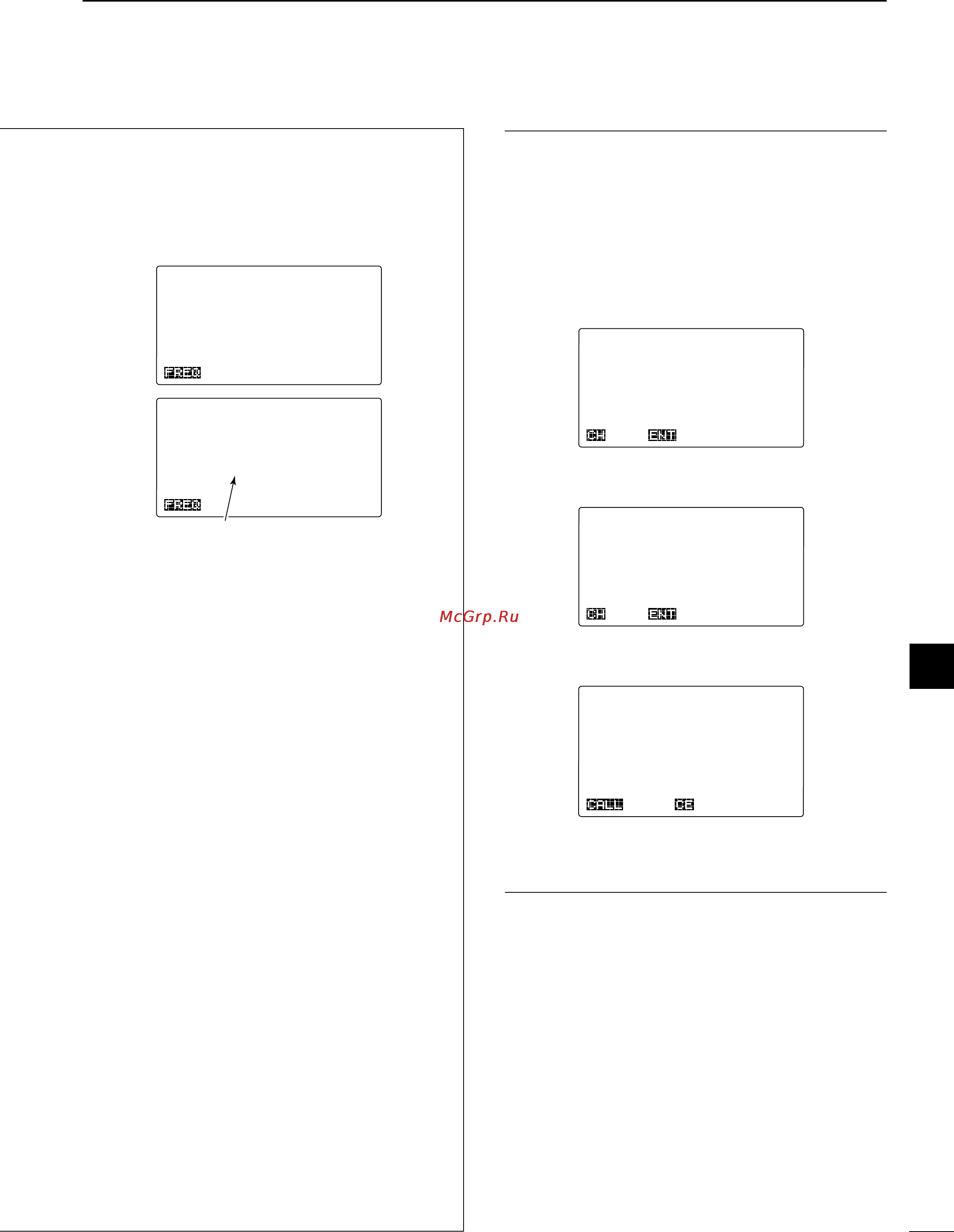

!3 When receiving the acknowledgement call, the dis-
play shows the received ID code, or the called sta-
tion name.
• Push [FREQ/CH];
-to select the traffic frequency if the called station is
able to comply to the call.
- to return to DSC watch mode when unable.
************************
*
Individual
ACK
*
*
IC-M802
*
*
Able
to
comply
*
************************
Exit
************************
*
Individual
ACK
*
*
IC-M802
*
*
Unable
to
comply
*
*
Operator
unavailable
*
************************
Exit
When the called station is unable to comply
to the call, the reason may be displayed.
✔
CONVENIENT!
The IC-M802 has DSC TX memory. You can store
often used DSC calling conditions for quick and sim-
ple re-call. Up to 10 conditions can be stored into the
memory with the following instructions.
¡ When call stand-by screen is displayed as in step
!1 at left, push and hold [ENT] for 1 sec.
™ Rotate [CH] to select the desired TX memory chan-
nel number.
£ Push and hold [ENT] for 1 sec. again to store the
condition into the selected memory channel.
¢ Push [ENT] to return to the calling stand-by condi-
tion.
∞ Push and hold [CANCEL/CALL] for 1 sec. when
transmitting the DSC call in set condition, or push
[MODE
SET
] when returning to DSC watch mode.
******
TX
memory
*******
------
Individual
------
Category:Distress
To:987654321
Traffic:J3E
TX
2134.0kHz
RX
2134.0kHz
Call
Freq:TX
2187.5kHz
RX
2187.5kHz
DEL
Call
******
Individual
******
---
TX
memory
write
----
0:Individual
987654321
1:
2:
3:
4:
5:
Ç
OKSEL
******
Individual
******
---
TX
memory
write
----
0:
1:
2:
3:
4:
5:
Ç
WriteSEL
