Icom IC-M802 [56/78] Set mode

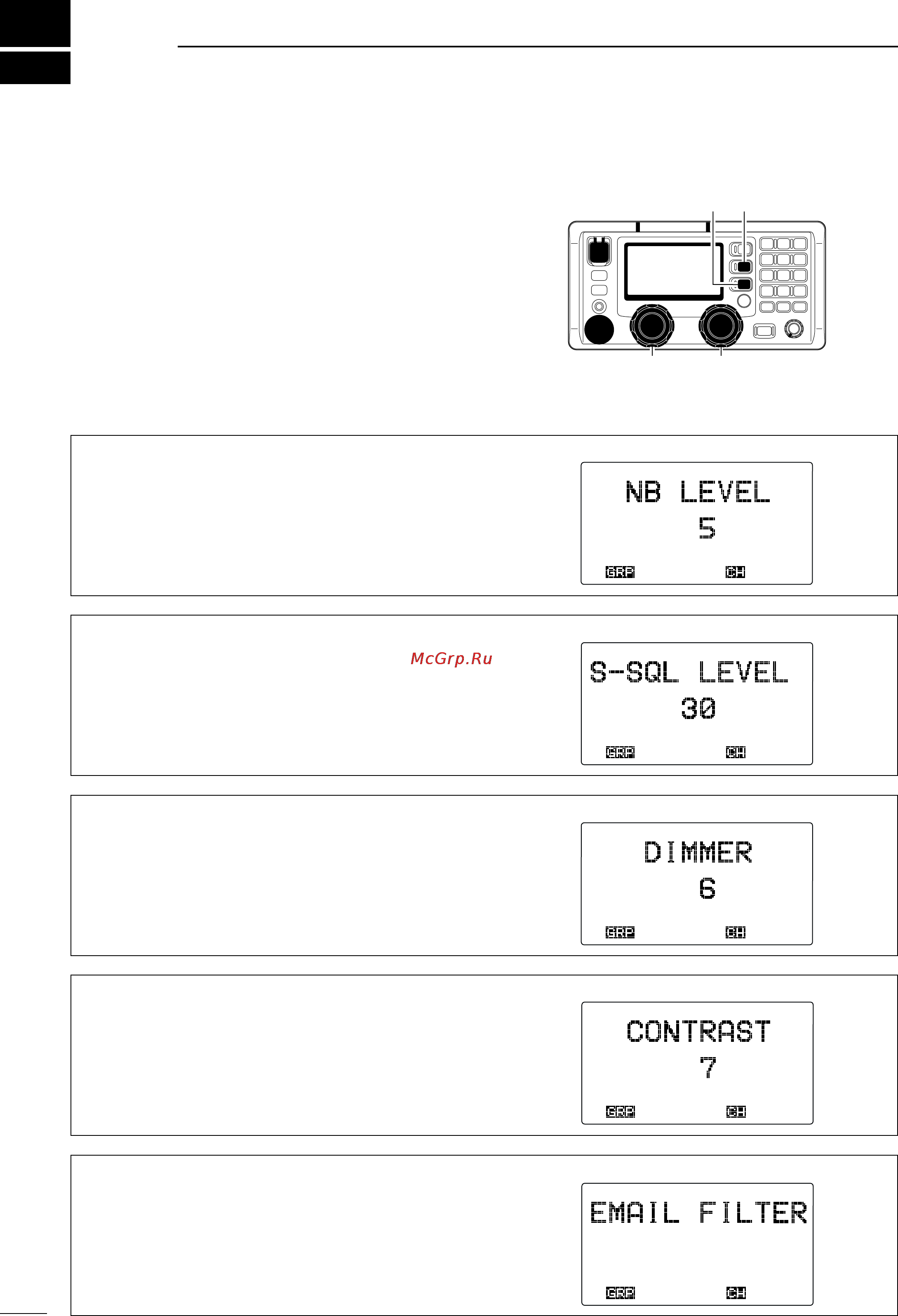

![Icom IC-M802 [56/78] Set mode](/views2/1074299/page56/bg38.png)
12
48
SET MODE
2001 NEW
■ Quick set mode
DD
Entering quick set mode
qPush [F] then [MODE
SET
] to enter quick set mode.
• Select voice or e-mail operation mode in advance.
w Rotate [GRP] to select the desired item.
e Rotate [CH] to set the values or conditions for the
selected item.
r Push any key to exit quick set mode.
[MODE SET]
[CH][GRP]
[F]
Noise blanker level
This item adjusts the noise blanker level to protect a
signal from various pulse-type noises from 1 to 10.
(default: 5)
The set level is effective when the noise blanker is ac-
tivated.
ITEM SEL
DD
Quick set mode items
Squelch level
This item adjusts the squelch threshold level from 1
to 100. (default: 30)
When the squelch is activated, signals stronger than
this set level only are received.
ITEM SEL
Dimmer
This item sets the LCD backlight brightness for dim-
mer selection from 0 (dark) to 10 (bright).
By pushing [F] then [0
DIM
], the set brightness is se-
lected to provide easy visibility during night time op-
eration, etc. (default: 6)
ITEM SEL
LCD contrast
This item sets the LCD contrast from 1 to 10.
(default: 7)
ITEM SEL
Filter selection
✔ This item appears when e-mail mode is selected
before entering quick set mode.
Selects the IF filter passband width for independent
e-mail channel operation from WIDE (2.8 kHz; de-
fault), MIDDLE (2.4 kHz) and NARROW (500 Hz).
ITEM SEL
WIDE
MIDDLE
NARROW
ÇÇ
IC-M802_USA.qxd 02.5.30 11:40 Page 48
