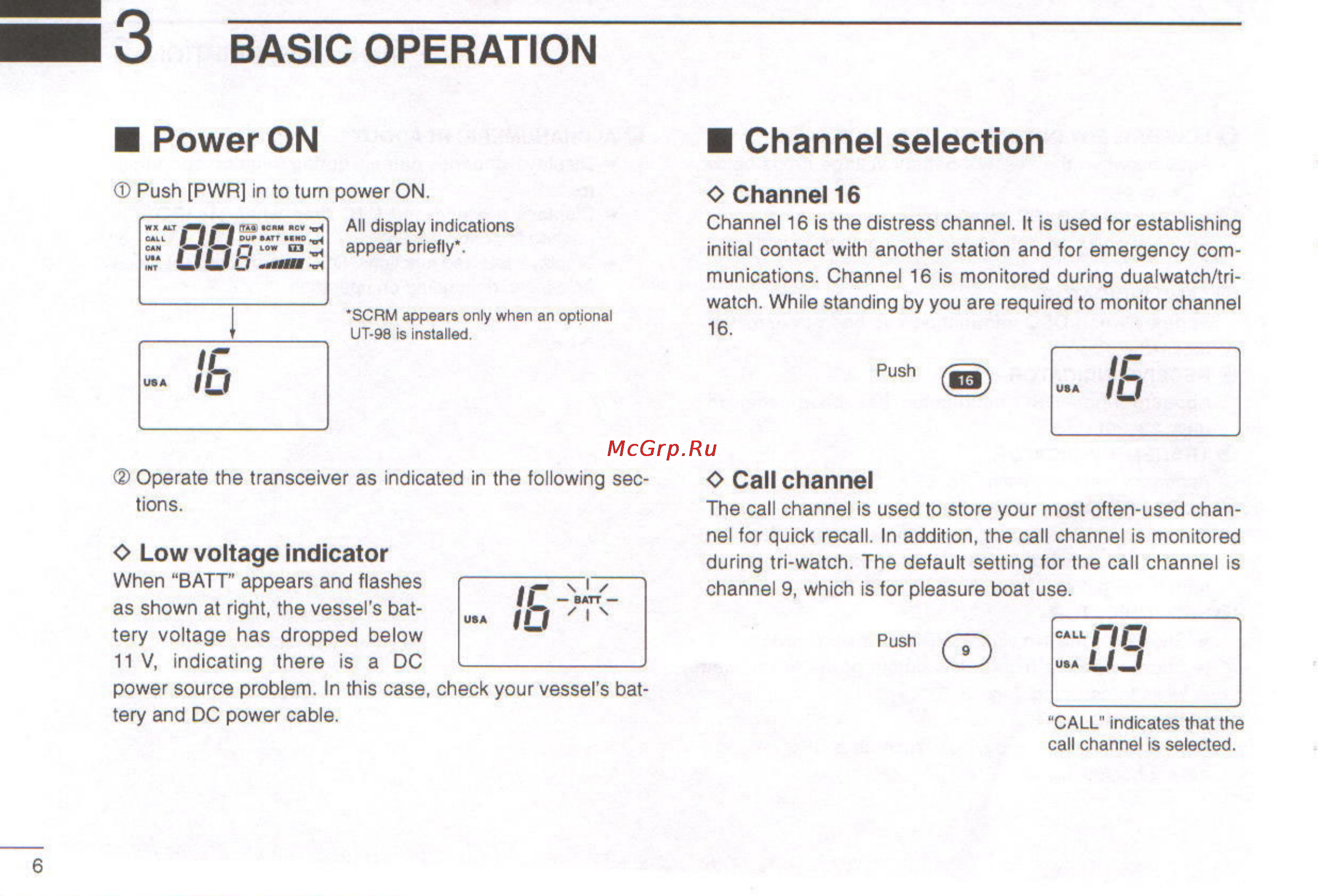

Icom IC-M127 [10/48] Basic operation
![Icom IC-M127 [10/48] Basic operation](/views2/1074671/page10/bga.png)
Содержание
- In case of emergency 2
- Table of contents 3
- Awarning high voltage never 4
- Cautions 4
- Do not 4
- Important 4
- Read all instructions 4
- Save this instruction manual 4
- Warning never 4
- You must have 4
- O privacy 5
- Operating rules 5
- Priorities 5
- Radio licenses 5
- I 2 panel description 6
- Panel description 2 7
- Function display 8
- Panel description 8
- Panel description 2 9
- Basic operation 10
- Power on channel selection 10
- По uj 10
- Basic operation 3 11
- O u s a canadian and international channels 11
- O weather channels 11
- Basic operation 12
- Dual tri watch functions 12
- O voice scrambler function 12
- Receiving 12
- Пс г up lum 1б 12
- Basic operation 3 13
- Transmitting 13
- Basic operation 14
- I jt s 14
- O scan operation 14
- O setting tag channels 14
- Scan function 14
- Call channel programming 15
- Display backlighting 15
- Channel names 16
- Digital selective calling 17
- General 17
- Distress call transmission 18
- Nn ili 18
- Sirs peu 18
- All ships call transmission 19
- Individual call transmission 20
- Address input mode 21
- Digital selective calling 4 21
- Ie sipe i ii 21
- In ji hips 21
- Digital selective calling 22
- O receiving a distress call 22
- O receiving a distress relay call 22
- Receiving an all ships call 22
- Receiving dsc calls 22
- Digital selective calling 4 23
- O receiving a geographical area call 23
- O receiving an individual call 23
- Digital selective calling 24
- Unhsle ei ek 24
- Hailer operation 25
- Other functions 25
- Intercom operation 26
- O preparation 26
- Operation from the transceiver 26
- Other functions 26
- Lb hp il thlk 27
- Operation from the intercom speaker 27
- Operation with 2 separate intercoms 27
- Other functions 5 27
- Automatic fog horn 28
- Colling 28
- Displaying position 29
- Internal speaker on off 29
- O selecting a fog horn pattern 29
- Other functions 5 29
- Turning the auto fog horn on and off 29
- Eein timer 30
- Entering set mode 30
- Lei iv 7 7 pe 30
- Ljh eilert 30
- Seep le i el 30
- Set mode 30
- Set mode items 30
- To enter set mode 30
- To select an item 30
- I nt 5p 31
- O beep tone level 31
- Ottenurtor 31
- Ronxl er 31
- Roto foe h 31
- Ruto fici 31
- Set mode 6 31
- Lj peert 32
- O scan timer 32
- P peert 32
- Scan type 32
- Sepp t1per 32
- Sepp tiper 32
- Sepp type 32
- Set mode 32
- Weather alert 32
- O auto fog horn frequency 33
- O internal speaker on off 33
- O rf attenuator 33
- Roto foo r 33
- Rttenor tor 33
- Rttenuntor 33
- Set mode 6 33
- Tnt 5p 33
- Auto acknowledge contents 34
- Method 34
- O dsc acknowledgement 34
- Ruto non 34
- Sc rosler 34
- Set mode 34
- Voice scrambler code 34
- Additional requirements 35
- Connections and maintenance 35
- For enhanced dsc operation 35
- For general operation 35
- O for dsc operation 35
- O for hailer operation 35
- O for intercom operation 35
- O for voice scrambler operation 35
- Unpacking 35
- Basic connections 36
- Caution 37
- Connections and maintenance 7 37
- Connections for hailer intercom fog horn 38
- Caution 40
- Connections and maintenance 40
- Mounting the transceiver 40
- Antenna cleaning 41
- Connections and maintenance 7 41
- Fuse replacement 41
- Option installation 42
- Removing replacing the case 42
- Unit installation 42
- Troubleshooting 9 43
- I 1 0 vhf marine channel list 44
- Vhf marine channel list 10 45
- 1 1 specifications 46
- General 46
- Receiver 46
- Transmitter 46
- O internal units 47
- Options 12 ml 47
- Count on us 48
- Icom inc 48
Похожие устройства
- Asko OP8650 EU ELECTRIC OVEN Инструкция по эксплуатации
- Siemens KG36EAW20R Инструкция по эксплуатации
- Icom IC-M710RT Инструкция по эксплуатации
- Asko OS8440 EU STEAM OVEN Инструкция по эксплуатации
- Bosch KGV39XL20R Инструкция по эксплуатации
- Icom MR-1000R2 Инструкция по эксплуатации
- Asko OT8620 EU ELECTRIC OVEN Инструкция по эксплуатации
- Hotpoint-Ariston HBU 1201.4 X NF H O3 Инструкция по эксплуатации
- Icom MR-1000T2 Инструкция по эксплуатации
- Asko C9505 A42002006 RU WHITE FS 50 Инструкция по эксплуатации
- Bosch KGE36AW30R Инструкция по эксплуатации
- Icom IC-PCR100 Инструкция по эксплуатации
- Asko C9510 A42002003 RU WHITE FS 50 Инструкция по эксплуатации
- Siemens KG39EAW20R Инструкция по эксплуатации
- Icom IC-PCR1000 Инструкция по эксплуатации
- Asko C9535 A42002022 RU WHITE FS 50 Инструкция по эксплуатации
- Siemens KG36EAL20R Инструкция по эксплуатации
- Icom IC-R1500 Инструкция по эксплуатации
- Bosch KGE36AI20R Инструкция по эксплуатации
- Asko C9540 A42002017 RU WHITE FS 50 Инструкция по эксплуатации
I 3 BASIC OPERATION Power ON Channel selection Ф Push PWR in to turn power ON O All display indications appear briefly Channel 16 Channel 16 is the distress channel It is used for establishing initial contact munications SCRM appears only when an optional UT 98 is installed Operate the transceiver as indicated in the following sec tions BATT another 16 station is and for monitored emergency during com dualwatch tri watch While standing by you are required to monitor channel 16 O Call channel The call channel is used to store your most often used chan O Low voltage indicator When with Channel appears and flashes nel for quick recall In addition the call channel is monitored during tri watch The default setting for the call channel is channel 9 which is for pleasure boat use as shown at right the vessel s bat tery voltage has dropped below 11 V indicating there is a DC ПО UJ power source problem In this case check your vessel s bat tery and DC power cable CALL indicates that the call channel is selected
