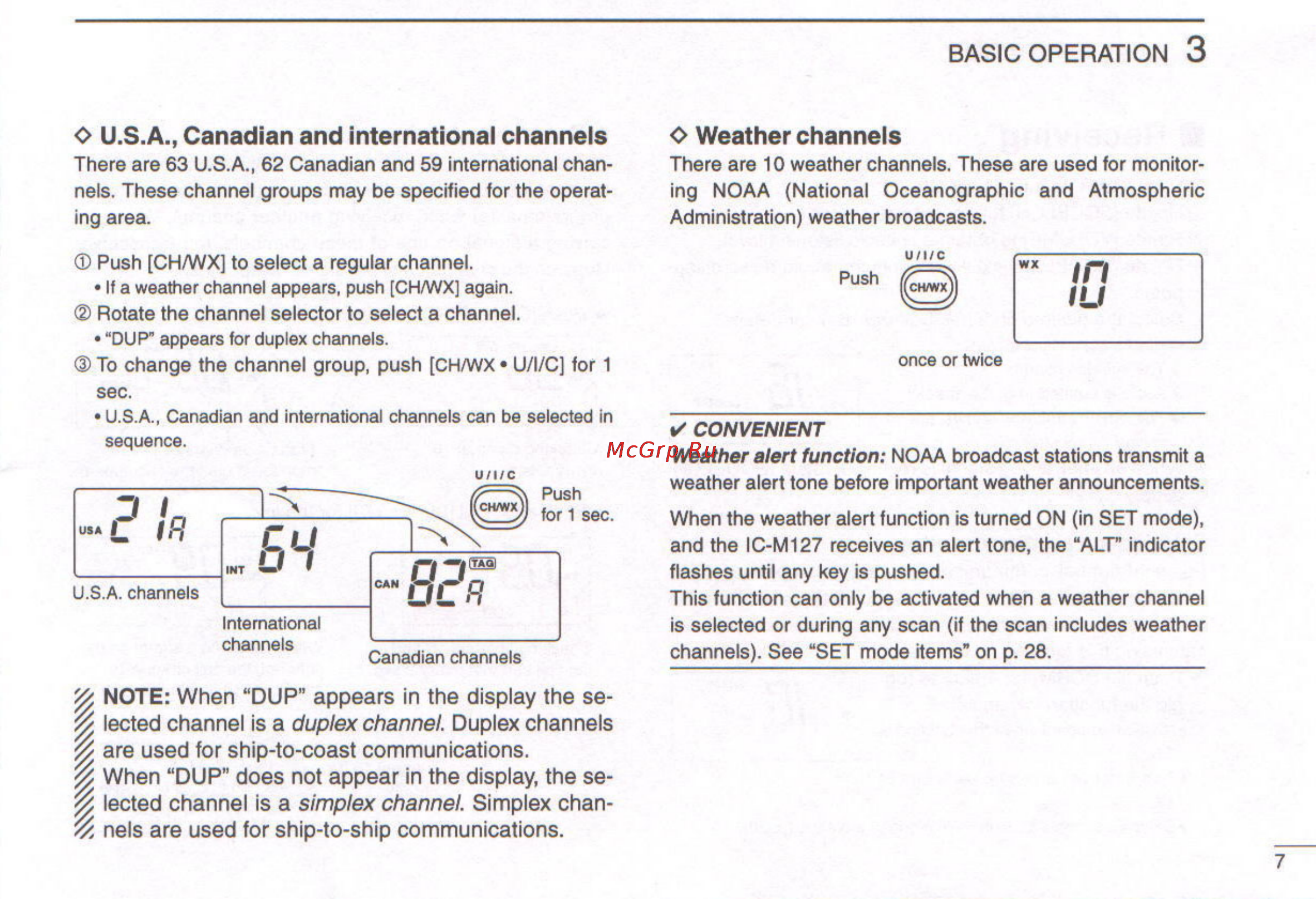

BASIC OPERATION 3 O U S A Canadian and international channels O Weather channels There are 63 U S A 62 Canadian and 59 international chan There are 10 weather channels These are used for monitor nels These channel groups may be specified for the operat ing ing area Administration weather broadcasts NOAA National Push CH WX to select a regular channel If a weather channel appears push CH WX again Oceanographic and Atmospheric Push Rotate the channel selector to select a channel DUP appears for duplex channels once or twice To change the channel group push CH WX U l C for 1 sec U S A Canadian and international channels can be selected in sequence CONVENIENT Weather U l C weather alert alert function tone NOAA before broadcast important stations weather transmit a announcements When the weather alert function is turned ON in SET mode and the IC M127 receives an alert tone the ALT indicator flashes until any key is pushed This function can only be activated when a weather channel International channels Canadian channels is selected or during any scan if the scan includes weather channels See SET mode items on p 28 NOTE When DUP appears in the display the se lected channel is a duplex channel Duplex channels are used for ship to coast communications When DUP does not appear in the display the se lected channel is a simplex channel Simplex chan nels are used for ship to ship communications 7
