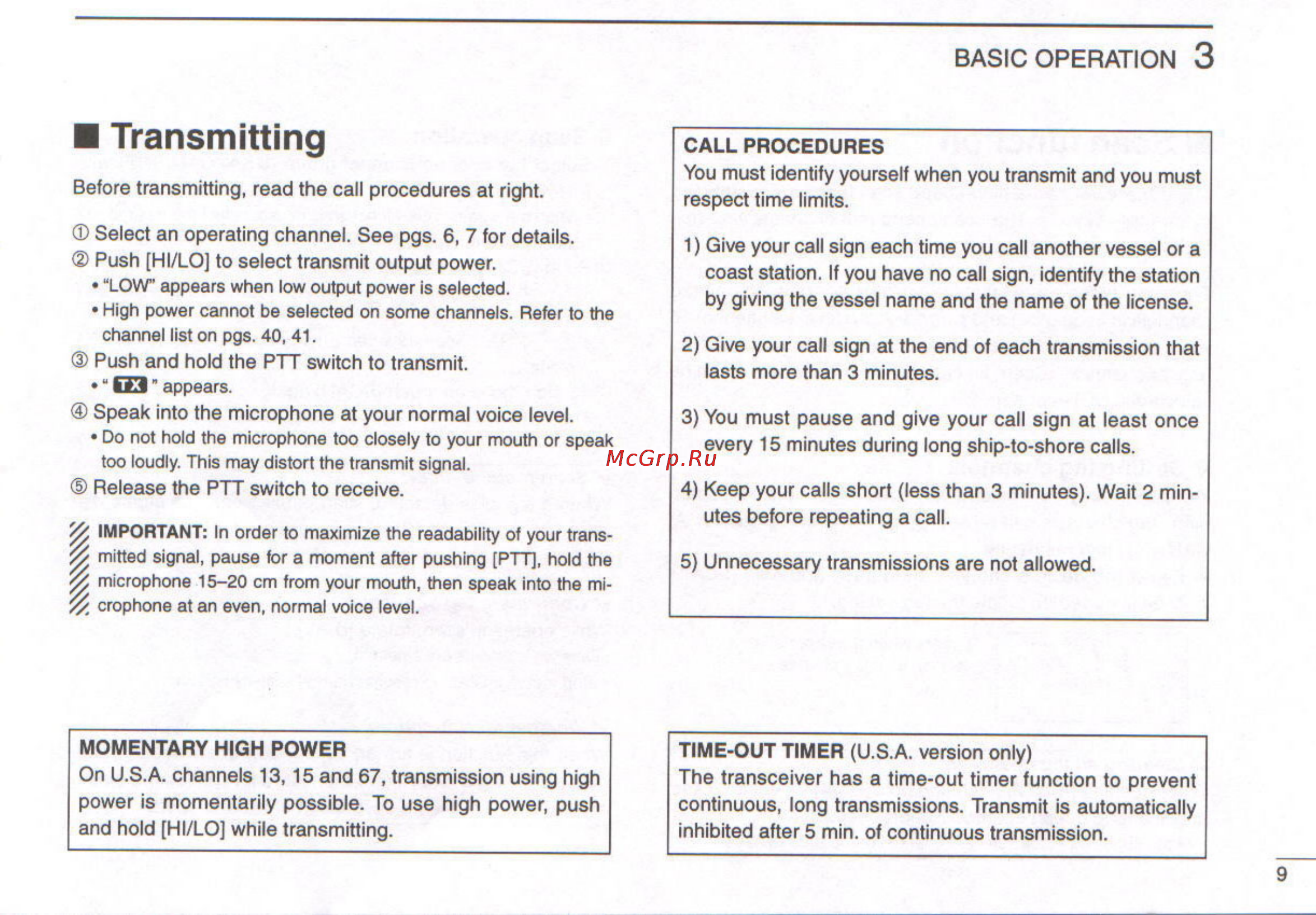

Icom IC-M127 [13/48] Transmitting
![Icom IC-M127 [13/48] Transmitting](/views2/1074671/page13/bgd.png)
Содержание
- In case of emergency 2
- Table of contents 3
- Awarning high voltage never 4
- Cautions 4
- Do not 4
- Important 4
- Read all instructions 4
- Save this instruction manual 4
- Warning never 4
- You must have 4
- O privacy 5
- Operating rules 5
- Priorities 5
- Radio licenses 5
- I 2 panel description 6
- Panel description 2 7
- Function display 8
- Panel description 8
- Panel description 2 9
- Basic operation 10
- Power on channel selection 10
- По uj 10
- Basic operation 3 11
- O u s a canadian and international channels 11
- O weather channels 11
- Basic operation 12
- Dual tri watch functions 12
- O voice scrambler function 12
- Receiving 12
- Пс г up lum 1б 12
- Basic operation 3 13
- Transmitting 13
- Basic operation 14
- I jt s 14
- O scan operation 14
- O setting tag channels 14
- Scan function 14
- Call channel programming 15
- Display backlighting 15
- Channel names 16
- Digital selective calling 17
- General 17
- Distress call transmission 18
- Nn ili 18
- Sirs peu 18
- All ships call transmission 19
- Individual call transmission 20
- Address input mode 21
- Digital selective calling 4 21
- Ie sipe i ii 21
- In ji hips 21
- Digital selective calling 22
- O receiving a distress call 22
- O receiving a distress relay call 22
- Receiving an all ships call 22
- Receiving dsc calls 22
- Digital selective calling 4 23
- O receiving a geographical area call 23
- O receiving an individual call 23
- Digital selective calling 24
- Unhsle ei ek 24
- Hailer operation 25
- Other functions 25
- Intercom operation 26
- O preparation 26
- Operation from the transceiver 26
- Other functions 26
- Lb hp il thlk 27
- Operation from the intercom speaker 27
- Operation with 2 separate intercoms 27
- Other functions 5 27
- Automatic fog horn 28
- Colling 28
- Displaying position 29
- Internal speaker on off 29
- O selecting a fog horn pattern 29
- Other functions 5 29
- Turning the auto fog horn on and off 29
- Eein timer 30
- Entering set mode 30
- Lei iv 7 7 pe 30
- Ljh eilert 30
- Seep le i el 30
- Set mode 30
- Set mode items 30
- To enter set mode 30
- To select an item 30
- I nt 5p 31
- O beep tone level 31
- Ottenurtor 31
- Ronxl er 31
- Roto foe h 31
- Ruto fici 31
- Set mode 6 31
- Lj peert 32
- O scan timer 32
- P peert 32
- Scan type 32
- Sepp t1per 32
- Sepp tiper 32
- Sepp type 32
- Set mode 32
- Weather alert 32
- O auto fog horn frequency 33
- O internal speaker on off 33
- O rf attenuator 33
- Roto foo r 33
- Rttenor tor 33
- Rttenuntor 33
- Set mode 6 33
- Tnt 5p 33
- Auto acknowledge contents 34
- Method 34
- O dsc acknowledgement 34
- Ruto non 34
- Sc rosler 34
- Set mode 34
- Voice scrambler code 34
- Additional requirements 35
- Connections and maintenance 35
- For enhanced dsc operation 35
- For general operation 35
- O for dsc operation 35
- O for hailer operation 35
- O for intercom operation 35
- O for voice scrambler operation 35
- Unpacking 35
- Basic connections 36
- Caution 37
- Connections and maintenance 7 37
- Connections for hailer intercom fog horn 38
- Caution 40
- Connections and maintenance 40
- Mounting the transceiver 40
- Antenna cleaning 41
- Connections and maintenance 7 41
- Fuse replacement 41
- Option installation 42
- Removing replacing the case 42
- Unit installation 42
- Troubleshooting 9 43
- I 1 0 vhf marine channel list 44
- Vhf marine channel list 10 45
- 1 1 specifications 46
- General 46
- Receiver 46
- Transmitter 46
- O internal units 47
- Options 12 ml 47
- Count on us 48
- Icom inc 48
Похожие устройства
- Asko OP8650 EU ELECTRIC OVEN Инструкция по эксплуатации
- Siemens KG36EAW20R Инструкция по эксплуатации
- Icom IC-M710RT Инструкция по эксплуатации
- Asko OS8440 EU STEAM OVEN Инструкция по эксплуатации
- Bosch KGV39XL20R Инструкция по эксплуатации
- Icom MR-1000R2 Инструкция по эксплуатации
- Asko OT8620 EU ELECTRIC OVEN Инструкция по эксплуатации
- Hotpoint-Ariston HBU 1201.4 X NF H O3 Инструкция по эксплуатации
- Icom MR-1000T2 Инструкция по эксплуатации
- Asko C9505 A42002006 RU WHITE FS 50 Инструкция по эксплуатации
- Bosch KGE36AW30R Инструкция по эксплуатации
- Icom IC-PCR100 Инструкция по эксплуатации
- Asko C9510 A42002003 RU WHITE FS 50 Инструкция по эксплуатации
- Siemens KG39EAW20R Инструкция по эксплуатации
- Icom IC-PCR1000 Инструкция по эксплуатации
- Asko C9535 A42002022 RU WHITE FS 50 Инструкция по эксплуатации
- Siemens KG36EAL20R Инструкция по эксплуатации
- Icom IC-R1500 Инструкция по эксплуатации
- Bosch KGE36AI20R Инструкция по эксплуатации
- Asko C9540 A42002017 RU WHITE FS 50 Инструкция по эксплуатации
BASIC OPERATION 3 Transmitting Before transmitting read the call procedures at right Select an operating channel See pgs 6 7 for details Push HI LO to select transmit output power LOW appears when low output power is selected High power cannot be selected on some channels Refer to the channel list on pgs 40 41 Push and hold the PTT switch to transmit ko appears CALL PROCEDURES You must identify yourself when you transmit and you must respect time limits 1 Give your call sign each time you call another vessel or a coast station If you have no call sign identify the station by giving the vessel name and the name of the license 2 Give your call sign at the end of each transmission that lasts more than 3 minutes Speak into the microphone at your normal voice level Do not hold the microphone too closely to your mouth or speak too loudly This may distort the transmit signal 3 You must pause and give your call sign at least once Release the PTT switch to receive 4 Keep your calls short less than 3 minutes Wait 2 min every 15 minutes during long ship to shore calls utes before repeating a call IMPORTANT In order to maximize the readability of your transmitted signal pause for a moment after pushing PTT hold the microphone 15 20 cm from your mouth then speak into the mi crophone at an even normal voice level 5 Unnecessary transmissions are not allowed MOMENTARY HIGH POWER TIME OUT TIMER U S A version only On U S A channels 13 15 and 67 transmission using high The transceiver has a time out timer function to prevent power is momentarily possible To use high power push continuous long transmissions Transmit is automatically and hold HI LO while transmitting inhibited after 5 min of continuous transmission
