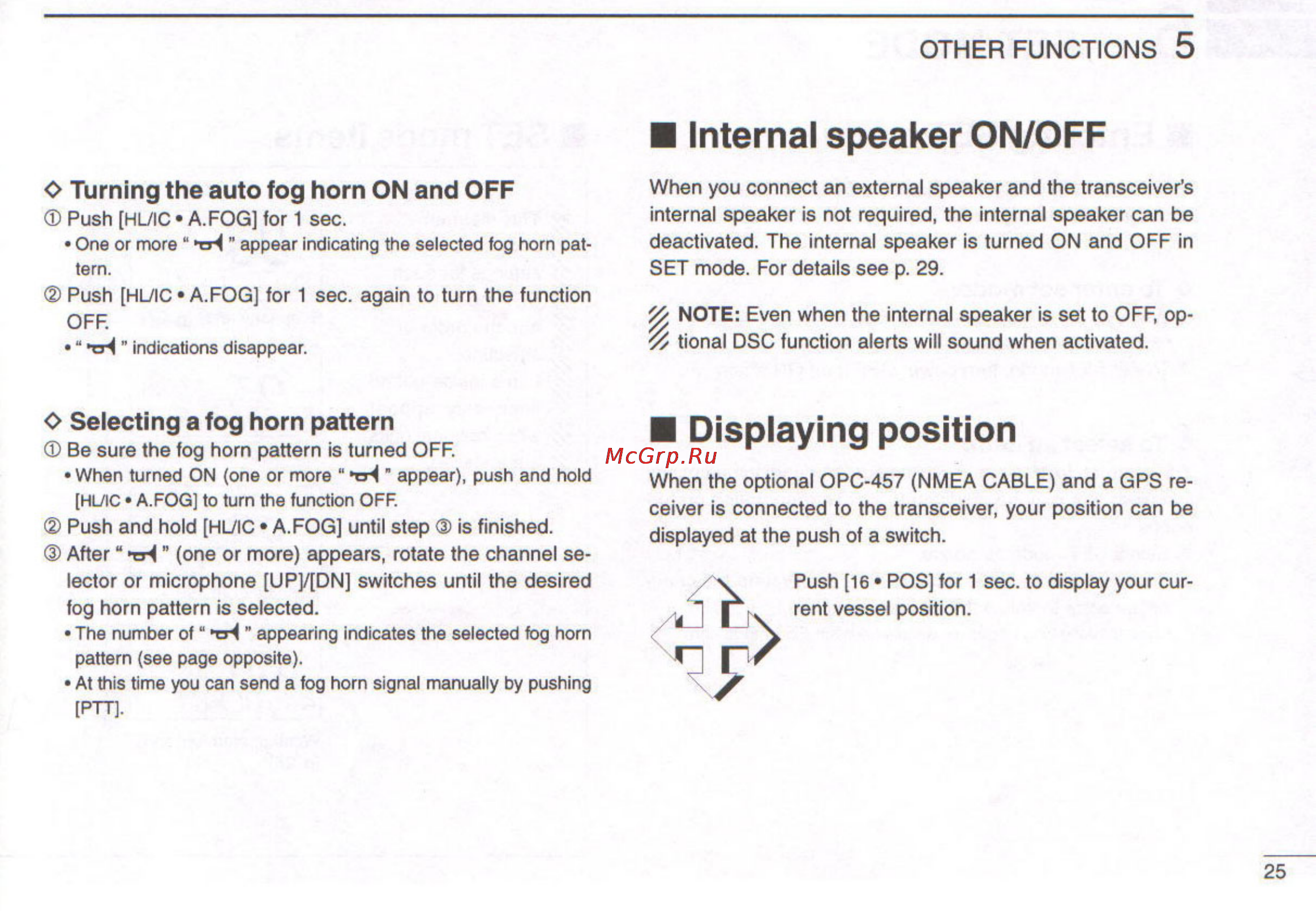

OTHER FUNCTIONS 5 Internal speaker ON OFF O Turning the auto fog horn ON and OFF When you connect an external speaker and the transceiver s Push HL IC A FOG for 1 sec One or more appear indicating the selected fog horn pat tern internal speaker is not required the internal speaker can be deactivated The internal speaker is turned ON and OFF in SET mode For details see p 29 Push HL IC A FOG for 1 sec again to turn the function NOTE Even when the internal speaker is set to OFF op OFF tH indications disappear tional DSC function alerts will sound when activated O Selecting a fog horn pattern Be sure the fog horn pattern is turned OFF When turned ON one or more appear push and hold HL IC A FOG to turn the function OFF Push and hold HL IC A FOG until step is finished After lector Displaying position When the optional OPC 457 NMEA CABLE and a GPS re ceiver is connected to the transceiver your position can be displayed at the push of a switch one or more appears rotate the channel se or microphone UP DN switches until the desired fog horn pattern is selected The number of appearing indicates the selected fog horn pattern see page opposite At this time you can send a fog horn signal manually by pushing PTT Push 16 POS for 1 sec to display your cur rent vessel position 25
