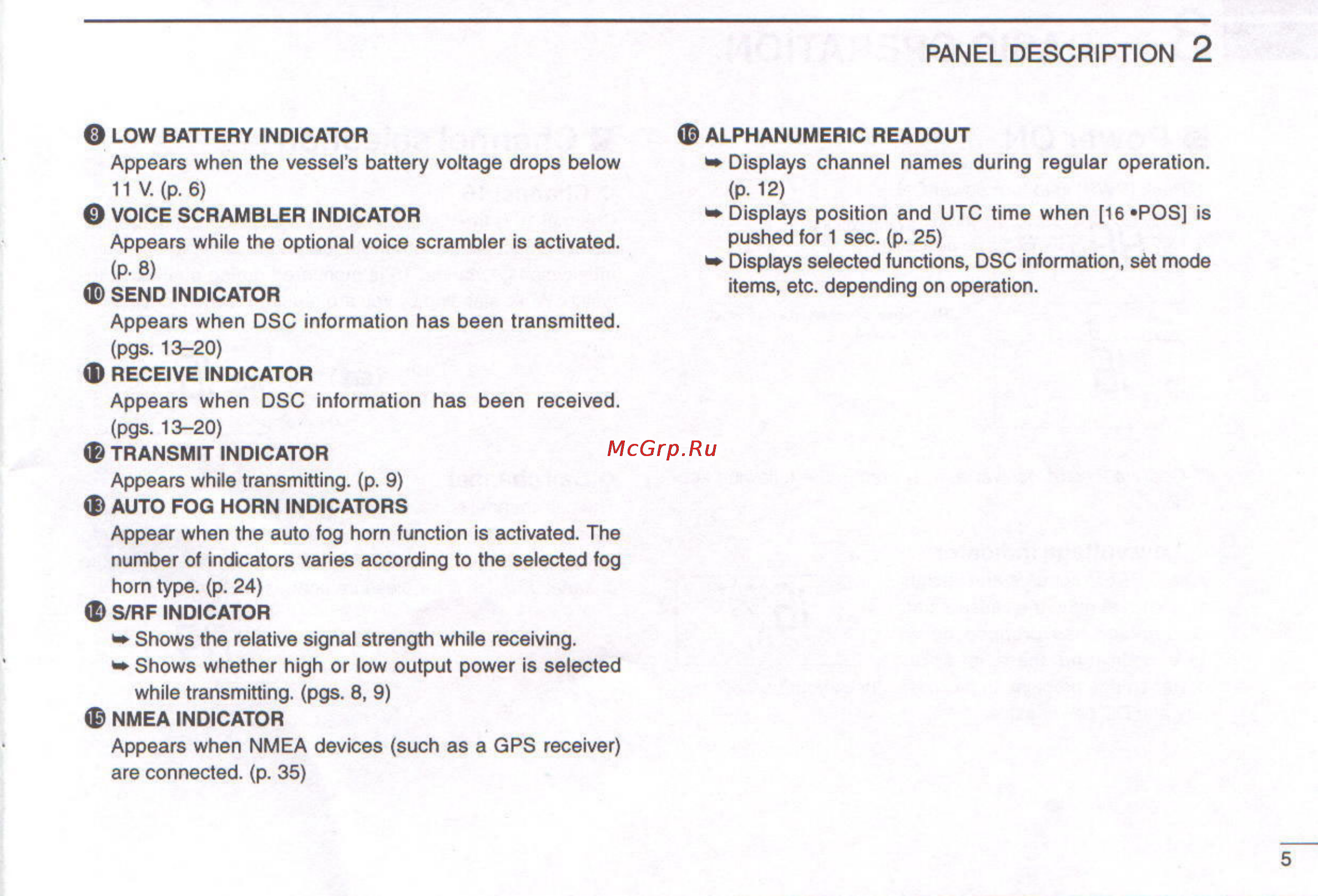

PANEL DESCRIPTION 2 0 LOW BATTERY INDICATOR ALPHANUMERIC READOUT Appears when the vessel s battery voltage drops below 11 V p 6 p 12 Displays position and UTC time when 16 POS is pushed for 1 sec p 25 Displays selected functions DSC information sèt mode items etc depending on operation 0 VOICE SCRAMBLER INDICATOR Appears while the optional voice scrambler is activated p 8 SEND INDICATOR Appears when DSC information has been transmitted pgs 13 20 D RECEIVE INDICATOR Appears when DSC information has been received pgs 13 20 TRANSMIT INDICATOR Appears while transmitting p 9 AUTO FOG HORN INDICATORS Appear when the auto fog horn function is activated The number of indicators varies according to the selected fog horn type p 24 S RF INDICATOR Shows the relative signal strength while receiving Shows whether high or low output power is selected GPS receiver while transmitting pgs 8 9 NMEA INDICATOR Appears when NMEA are connected p 35 devices such as a Displays channel names during regular operation
