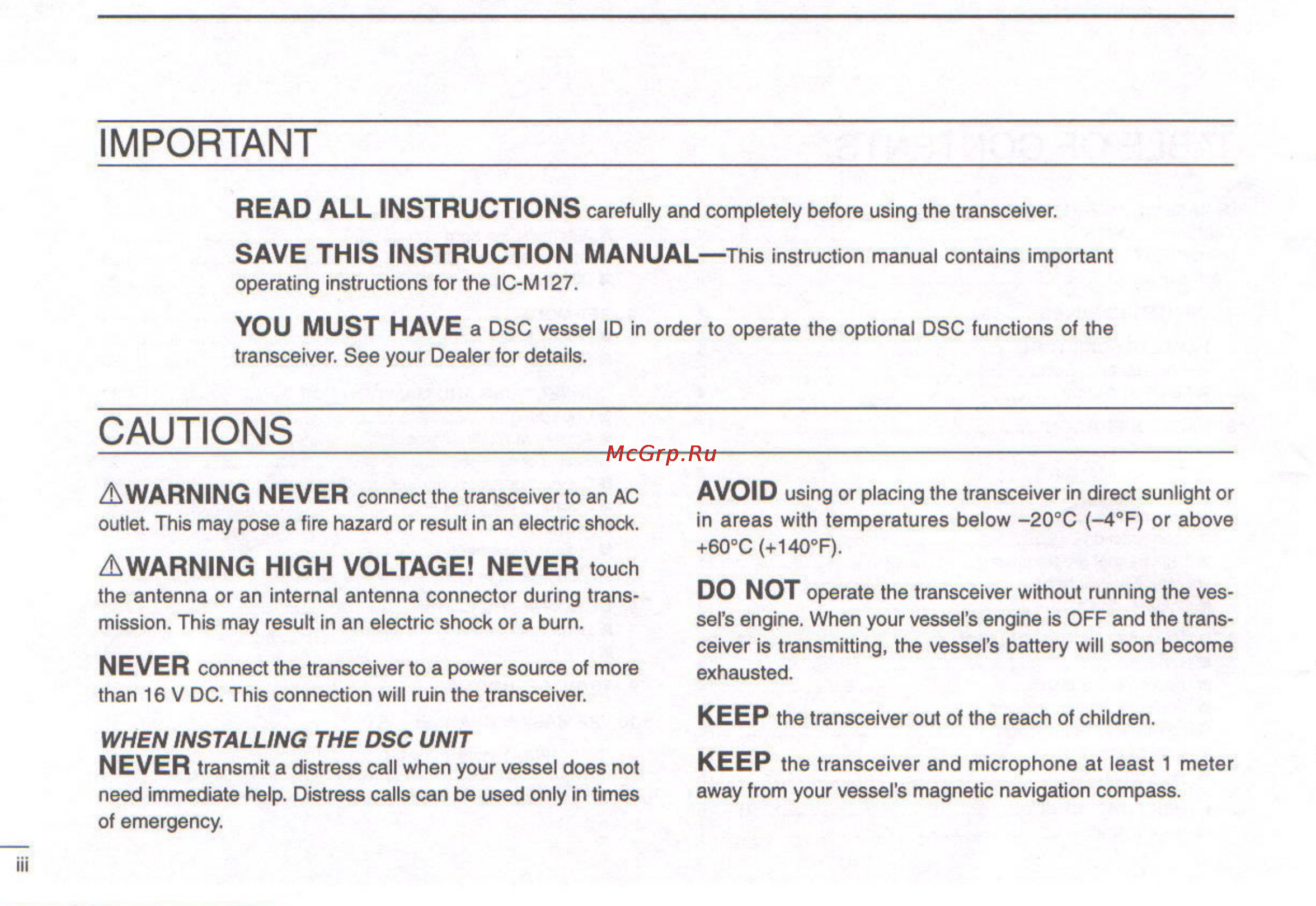

IMPORTANT READ ALL INSTRUCTIONS carefully and completely before using the transceiver SAVE THIS INSTRUCTION MANUAL This instruction manual contains important operating instructions for the IC M127 YOU MUST HAVE a DSC vessel ID in order to operate the optional DSC functions of the transceiver See your Dealer for details CAUTIONS A WARNING NEVER connect the transceiver to an AC outlet This may pose a fire hazard or result in an electric shock AVOID using or placing the transceiver in direct sunlight or in with areas temperatures below 20 C 4 F or above 60 C 140 F AWARNING HIGH VOLTAGE NEVER the antenna or an internal antenna connector during touch trans mission This may result in an electric shock or a burn DO NOT ceiver NEVER connect the transceiver to a power source of more operate the transceiver without running the ves sel s engine When your vessel s engine is OFF and the trans is transmitting the vessel s battery will soon become exhausted than 16 V DC This connection will ruin the transceiver KEEP the transceiver out of the reach of children WHEN INSTALLING THE DSC UNIT NEVER transmit a distress call when your vessel does not need immediate help Distress calls can be used only in times of emergency KEEP the transceiver and microphone at away from your vessel s magnetic navigation compass least 1 meter
