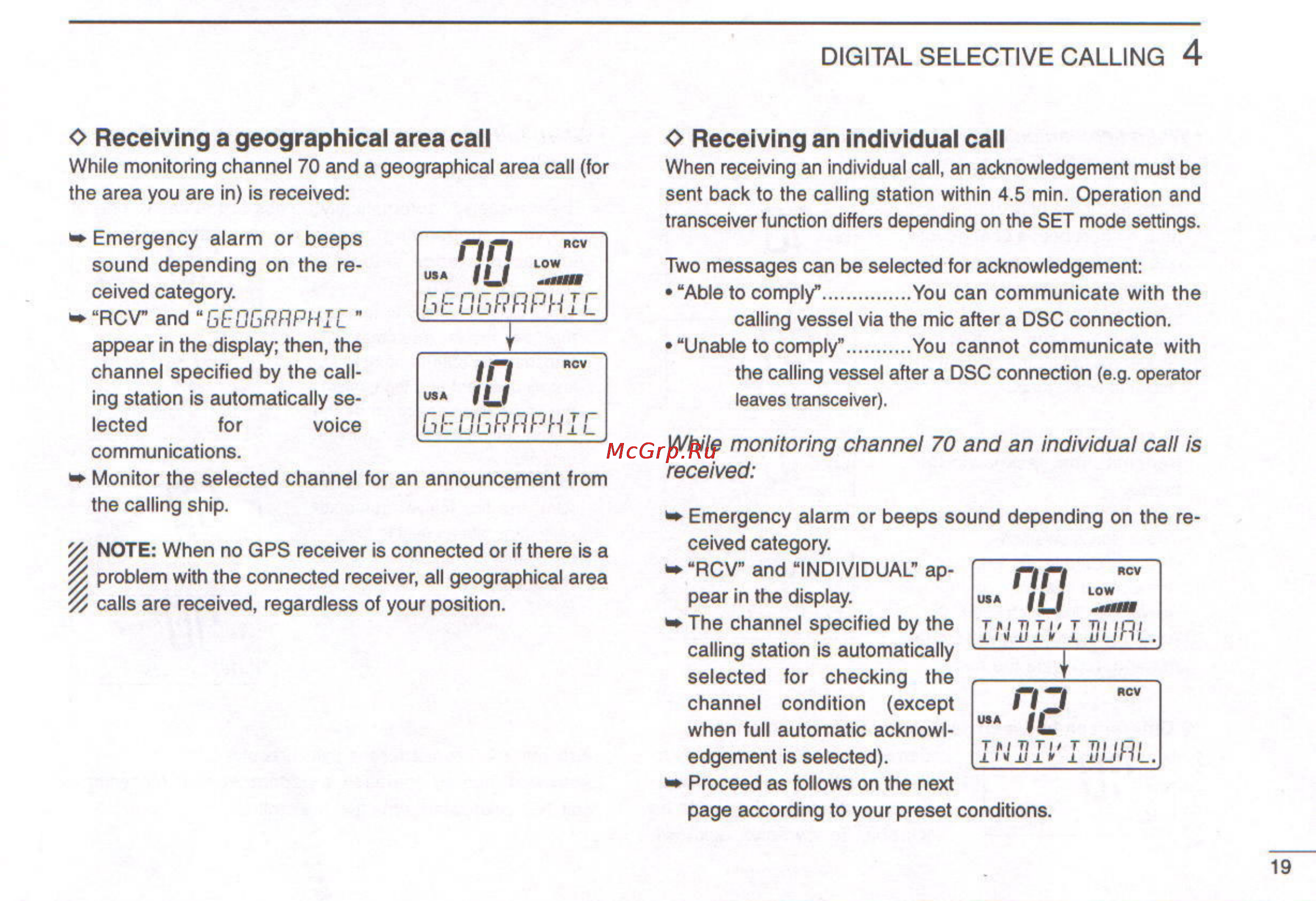

DIGITAL SELECTIVE CALLING 4 O Receiving a geographical area call O Receiving an individual call While monitoring channel 70 and a geographical area call for When receiving an individual call an acknowledgement must be the area you are in is received sent back to the calling station within 4 5 min Operation and transceiver function differs depending on the SET mode settings Emergency sound alarm depending or on beeps the re Two messages can be selected for acknowledgement ceived category Able to comply You can communicate with the RCV and EEOEiPPPHlE appear in the display then the Unable to comply You cannot communicate with channel specified by the calling vessel via the mic after a DSC connection call the calling vessel after a DSC connection e g operator ing station is automatically se lected for leaves transceiver voice communications Monitor the selected channel for an announcement from the calling ship Z NOTE When no GPS receiver is connected or if there is a problem with the connected receiver all geographical area V calls are received regardless of your position While monitoring channel 70 and an individual call is received Emergency alarm or beeps sound depending on the re ceived category RCV and INDIVIDUAL ap pear in the display The channel calling station selected channel when for specified is checking condition full by the automatically automatic the except acknowl edgement is selected Proceed as follows on the next page according to your preset conditions 19
