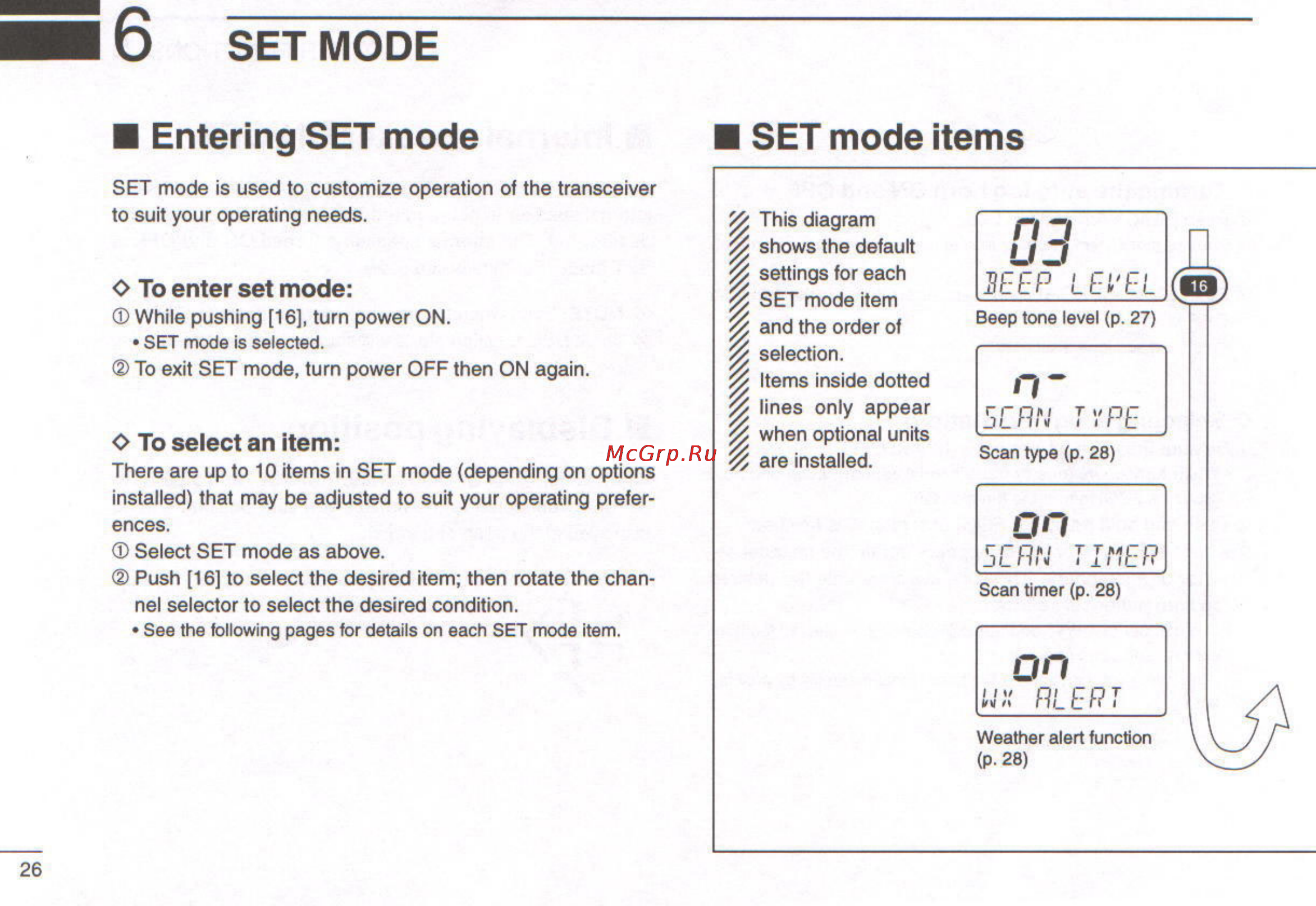

6 SET MODE Entering SET mode SET mode items SET mode is used to customize operation of the transceiver to suit your operating needs This diagram shows the default O To enter set mode While pushing 16 turn power ON SET mode is selected To exit SET mode turn power OFF then ON again O To select an item There are up to 10 items in SET mode depending on options settings for each SEEP LE I EL SET mode item Beep tone level p 27 and the order of selection Items inside dotted lines only appear when optional are installed units O 5 LEI IV 7 7 PE Scan type p 28 installed that may be adjusted to suit your operating prefer ences Select SET mode as above Push 16 to select the desired item then rotate the chan nel selector to select the desired condition See the following pages for details on each SET mode item on 5EEIN TIMER Scan timer p 28 on LJH EILERT Weather alert function p 28
