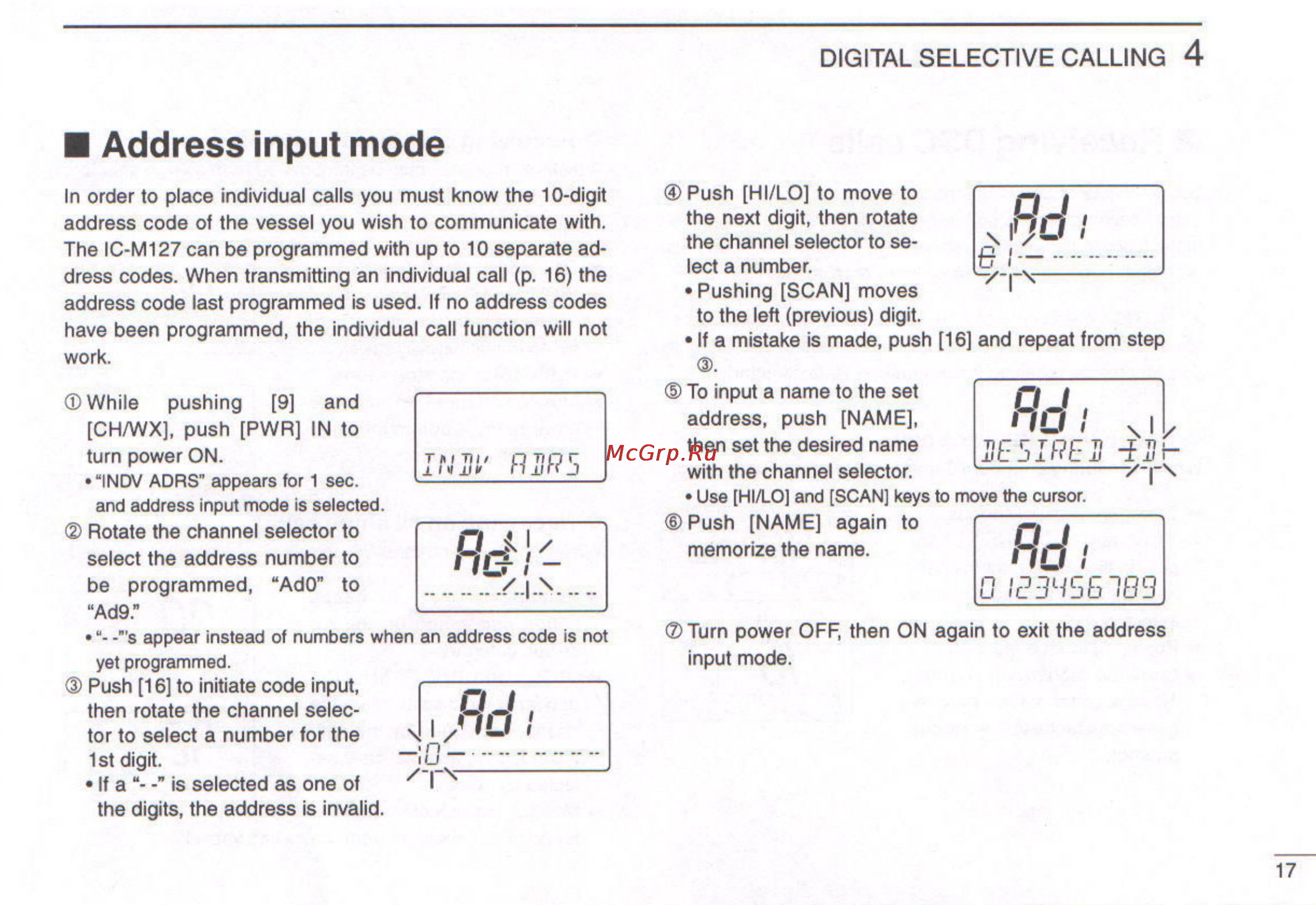

DIGITAL SELECTIVE CALLING 4 Address input mode In order to place individual calls you must know the 10 digit address code of the vessel you wish to communicate with The IC M127 can be programmed with up to 10 separate ad dress codes When transmitting an individual call p 16 the address code last programmed is used If no address codes have been programmed the individual call function will not Push HI LO to move to the next digit then rotate the channel selector to se e i lect a number Pushing SCAN moves to the left previous digit If a mistake is made push 16 and repeat from step work To input a name to the set While pushing 9 and address push NAME CH WX push PWR IN to turn power ON INDV ADRS appears for 1 sec and address input mode is selected then set the desired name IN Ji HIPS Rotate the channel selector to select be the address programmed number to AdO to Ad9 s appear instead of numbers when an address code is not yet programmed Push 16 to initiate code input then rotate the channel selec tor to select a number for the 1st digit If a is selected as one of the digits the address is invalid Fid IE SIPE I II with the channel selector Use HI LO and SCAN keys to move the cursor Push NAME again to memorize the name Fid 0 IE3PE EIBE Turn power OFF then ON again to exit the address input mode 17
