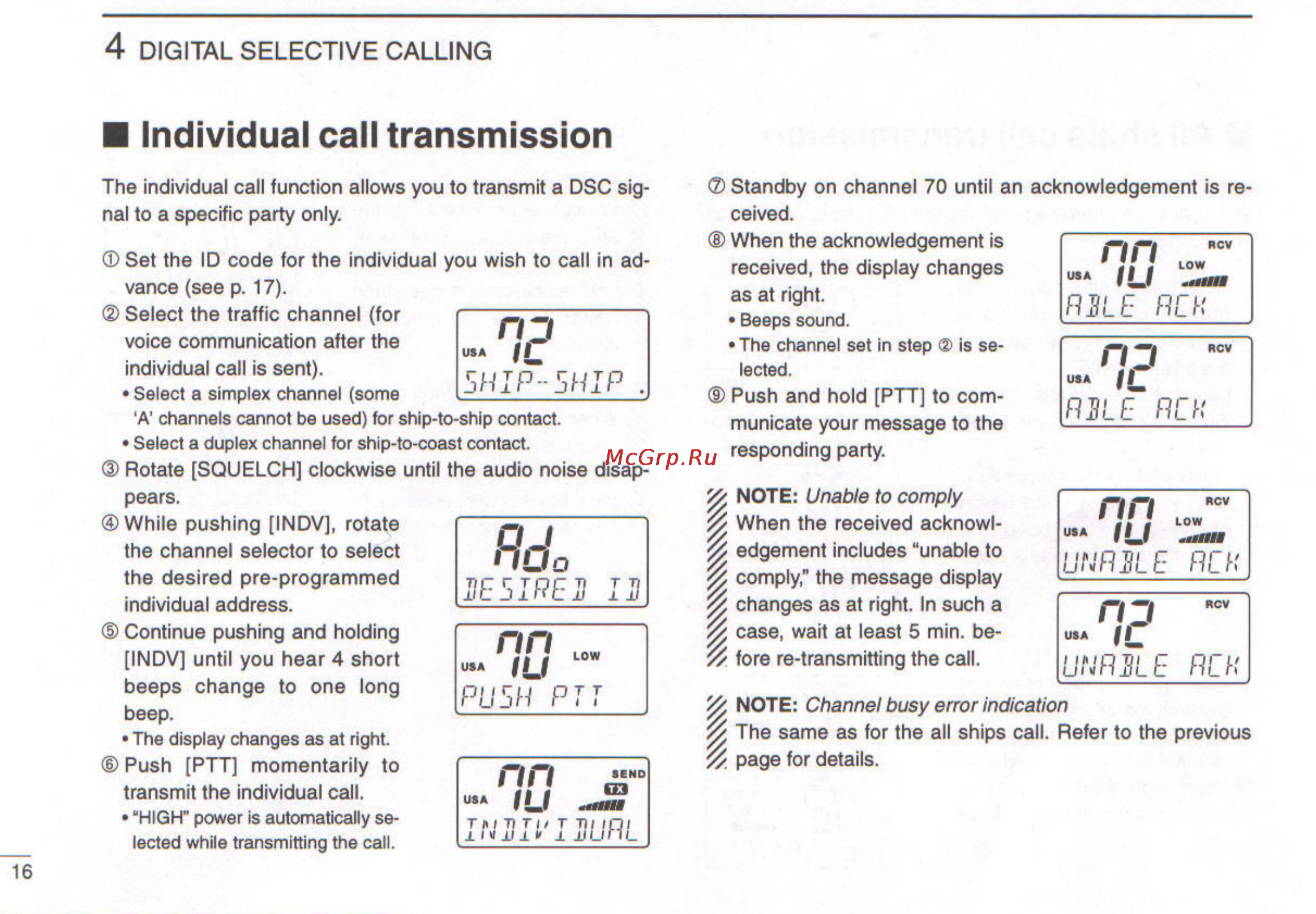

4 DIGITAL SELECTIVE CALLING Individual call transmission The individual call function allows you to transmit a DSC sig Standby on channel 70 until an acknowledgement is re ceived nal to a specific party only When the acknowledgement is Set the ID code for the individual you wish to call in ad received vance see p 17 Select the traffic channel for voice communication after the 5 individual call is sent SHIP SHIP Select a simplex channel some A channels cannot be used for ship to ship contact Select a duplex channel for ship to coast contact the display changes as at right Beeps sound The channel set in step is se lected us nn IJ RCV LOW 11111 PILE PEU Push and hold PTT to com RCV UP PILE PLH municate your message to the responding party Rotate SQUELCH clockwise until the audio noise disap Z NOTE Unable to comply pears While pushing INDV rotate the channel selector to select the desired pre programmed individual address Continue pushing and holding INDV until you hear 4 short beeps change to one long beep The display changes as at right Push PTT momentarily to transmit the individual call HIGH power is automatically se lected while transmitting the call 16 Z Udo IESIPEI II When the edgement received includes acknowl unable to comply the message display changes as at right In such a case wait at least 5 min be nn L0W IU Z fore re transmitting the call PUSH PU NOTE Channel busy error indication USA nn IIJ RCV LOW um UHPILE PEU rlp UH PILE RCV PEU The same as for the all ships call Refer to the previous nn IU Z page for details
