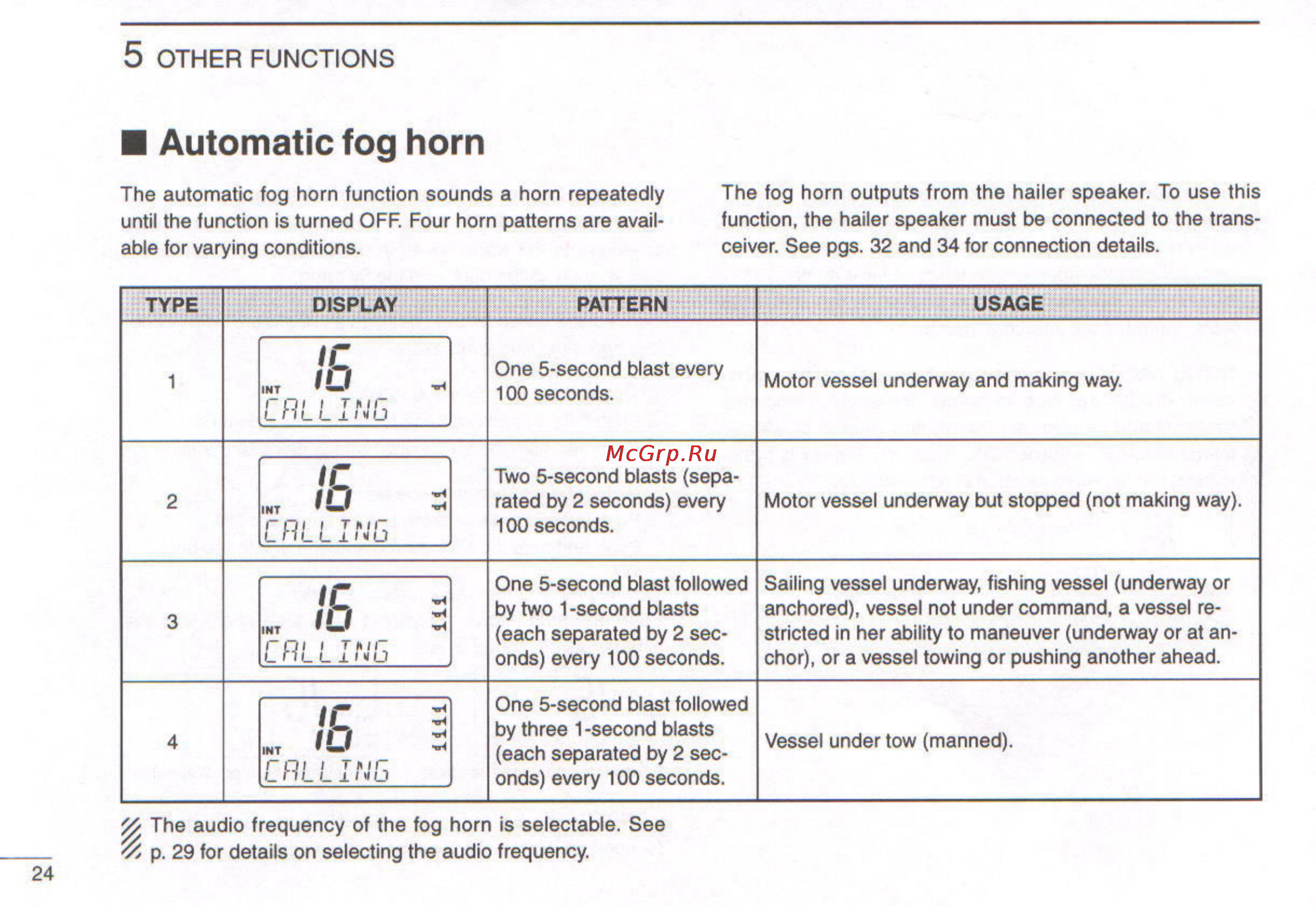

5 OTHER FUNCTIONS Automatic fog horn repeatedly The fog horn outputs from the hailer speaker To use this until the function is turned OFF Four horn patterns are avail function the hailer speaker must be connected to the trans able for varying conditions ceiver See pgs 32 and 34 for connection details The automatic TYPE 1 2 fog horn function sounds 6 COLLING IC IHT ILI 3 COLLING One 5 second blast every 100 seconds Motor vessel underway and making way Two 5 second blasts sepa rated by 2 seconds every 100 seconds Motor vessel underway but stopped not making way One 5 second blast followed IC N ILI 3 IC NT ILI by two 1 second blasts each separated by 2 sec onds every 100 seconds 2 One 5 second blast followed by three 1 second blasts each separated by 2 sec onds every 100 seconds The audio frequency of the fog horn is selectable See p 29 for details on selecting the audio frequency 24 USAGE PATTERN COLLING 4 horn DISPLAY COLLING 3 a Sailing vessel underway fishing vessel underway or anchored vessel not under command a vessel re stricted in her ability to maneuver underway or at an chor or a vessel towing or pushing another ahead Vessel under tow manned
