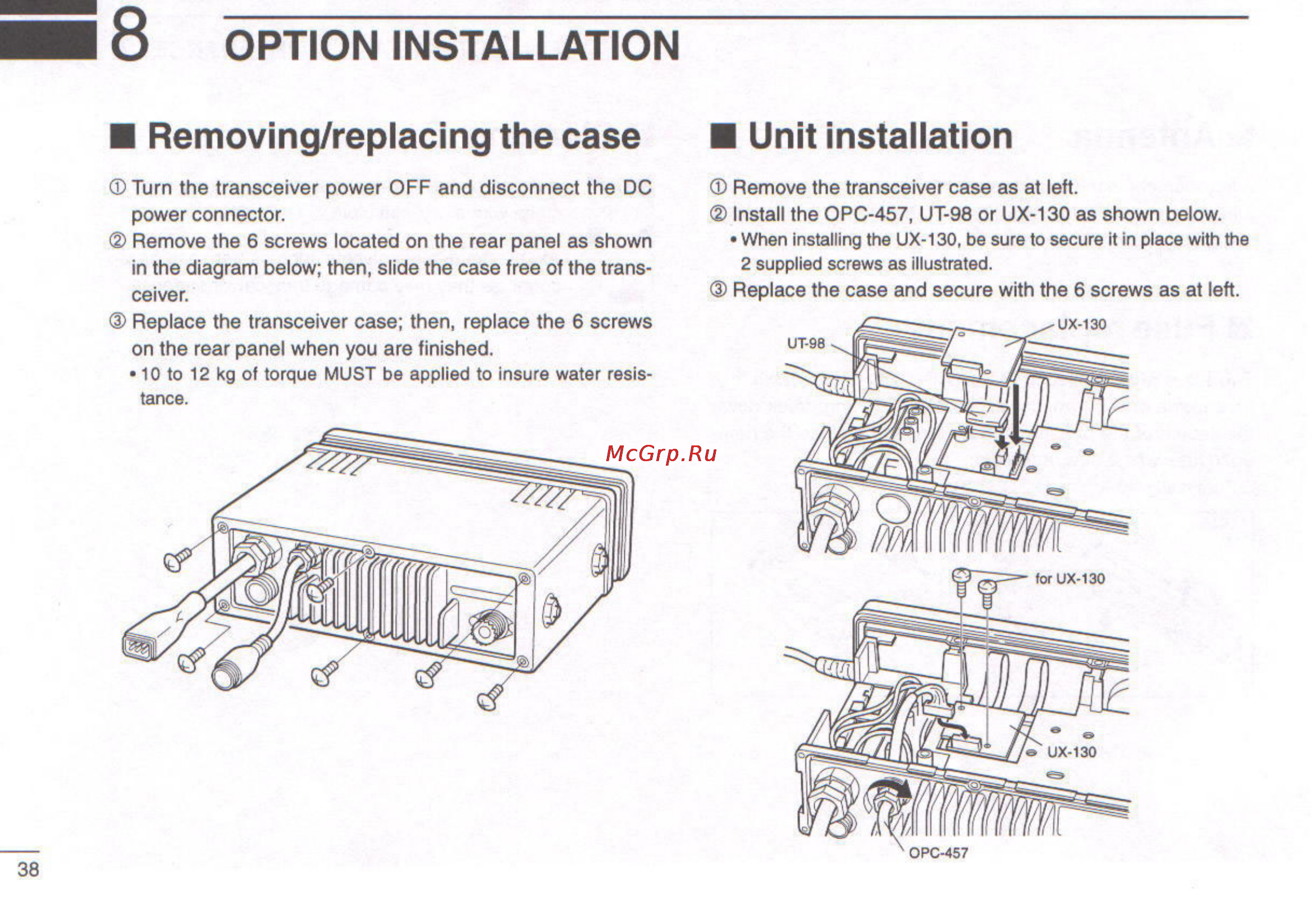

OPTION INSTALLATION Removing replacing the case Unit installation Turn the transceiver power OFF and disconnect the DC Remove the transceiver case as at left power connector in the diagram below then slide the case free of the trans Install the OPC 457 UT 98 or UX 130 as shown below When installing the UX 130 be sure to secure it in place with the 2 supplied screws as illustrated ceiver Replace the case and secure with the 6 screws as at left Remove the 6 screws located on the rear panel as shown Replace the transceiver case then replace the 6 screws on the rear panel when you are finished 10 to 12 kg of torque MUST be applied to insure water resis tance UT 98 __ BWlw88 for UX 130 K7K UX 130 OPC 457 38
