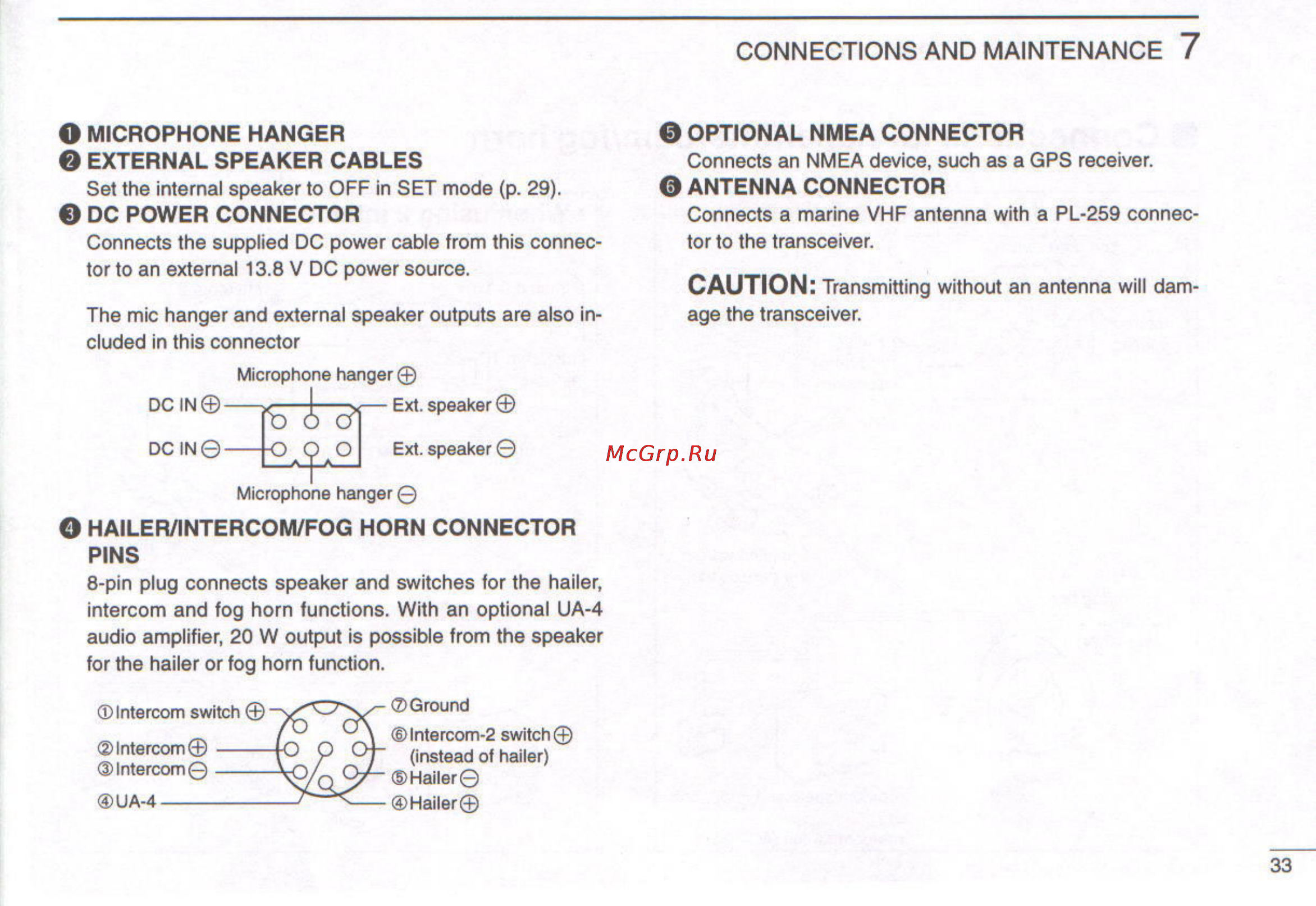

CONNECTIONS AND MAINTENANCE 7 0 OPTIONAL NMEA CONNECTOR O MICROPHONE HANGER Connects an NMEA device such as a GPS receiver O EXTERNAL SPEAKER CABLES ANTENNA CONNECTOR Set the internal speaker to OFF in SET mode p 29 Connects a marine VHF antenna with a PL 259 connec DC POWER CONNECTOR Connects the supplied DC power cable from this connec tor to an external 13 8 V DC power source CAUTION The mic hanger and external speaker outputs are also in cluded in this connector Microphone hanger DC IN x x Ext speaker DC IN O Q Ext speaker 0 Microphone hanger O HAILER INTERCOM FOG HORN CONNECTOR PINS 8 pin plug intercom connects and fog speaker and switches horn functions With an for the optional hailer UA 4 audio amplifier 20 W output is possible from the speaker for the hailer or fog horn function Intercom switch Intercom Intercom UA 4 tor to the transceiver Ground Intercom 2 switch instead of hailer Hailer Hailer Transmitting without an antenna will dam age the transceiver
