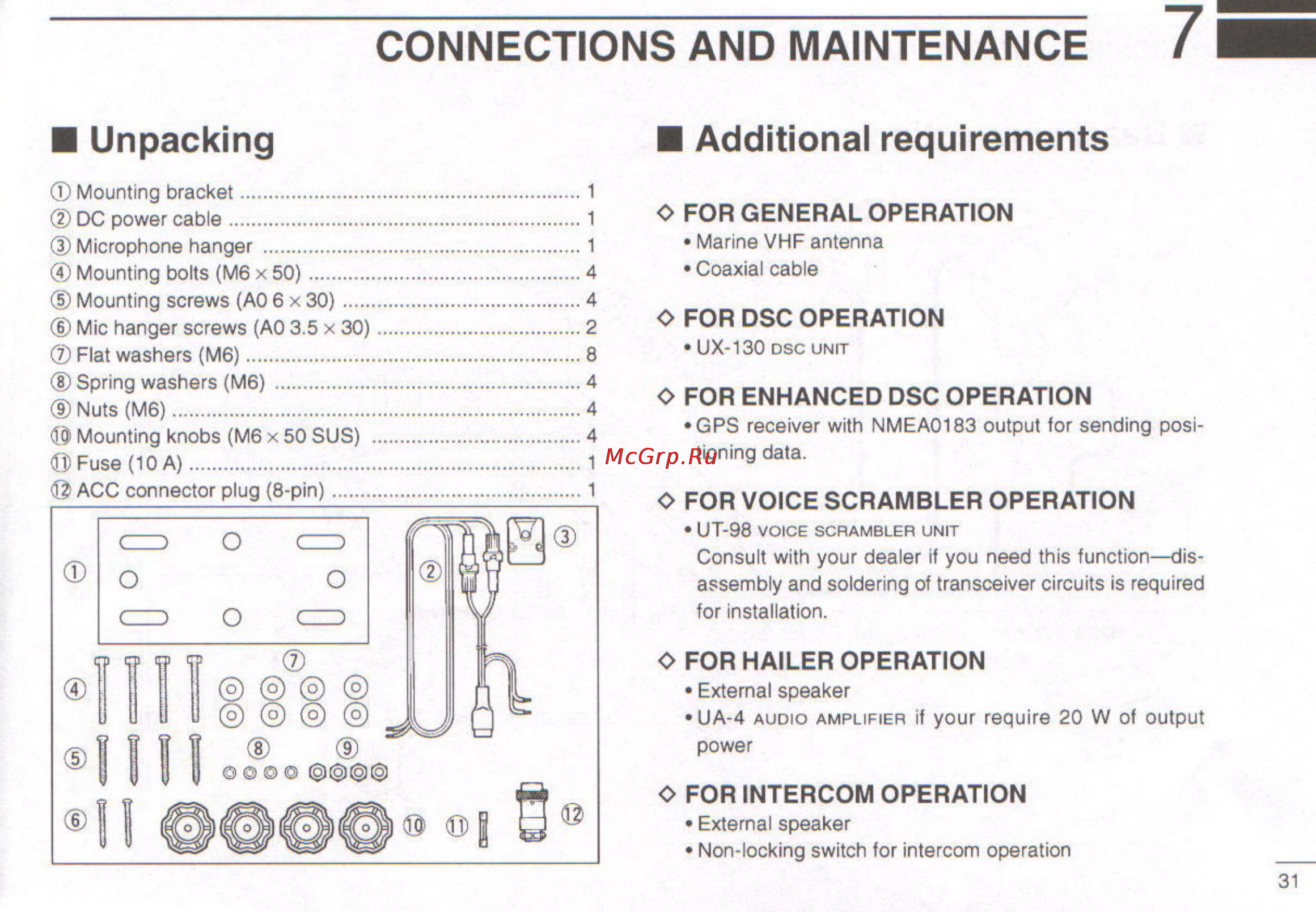

CONNECTIONS AND MAINTENANCE Unpacking Additional requirements Mounting bracket 1 DC power cable 1 O FOR GENERAL OPERATION Microphone hanger 1 Marine VHF antenna Mounting bolts M6 x 50 4 Coaxial cable Mounting screws AO 6 x 30 4 Mic hanger screws AO 3 5 x 30 2 O FOR DSC OPERATION UX 130 DSC UNIT Flat washers M6 8 Spring washers M6 4 Nuts M6 4 Mounting knobs M6 x 50 SUS 4 Fuse 10 A 1 ACC connector plug 8 pin 1 O FOR ENHANCED DSC OPERATION GPS receiver with NMEA0183 output for sending posi tioning data O FOR VOICE SCRAMBLER OPERATION UT 98 VOICE SCRAMBLER UNIT Consult with your dealer if you need this function dis assembly and soldering of transceiver circuits is required for installation O FOR HAILER OPERATION External speaker UA 4 AUDIO AMPLIFIER if your require 20 W of output power O FOR INTERCOM OPERATION External speaker Non locking switch for intercom operation 31
