HPP EF 111/210 (1000 об/мин) [29/108] Fig 14

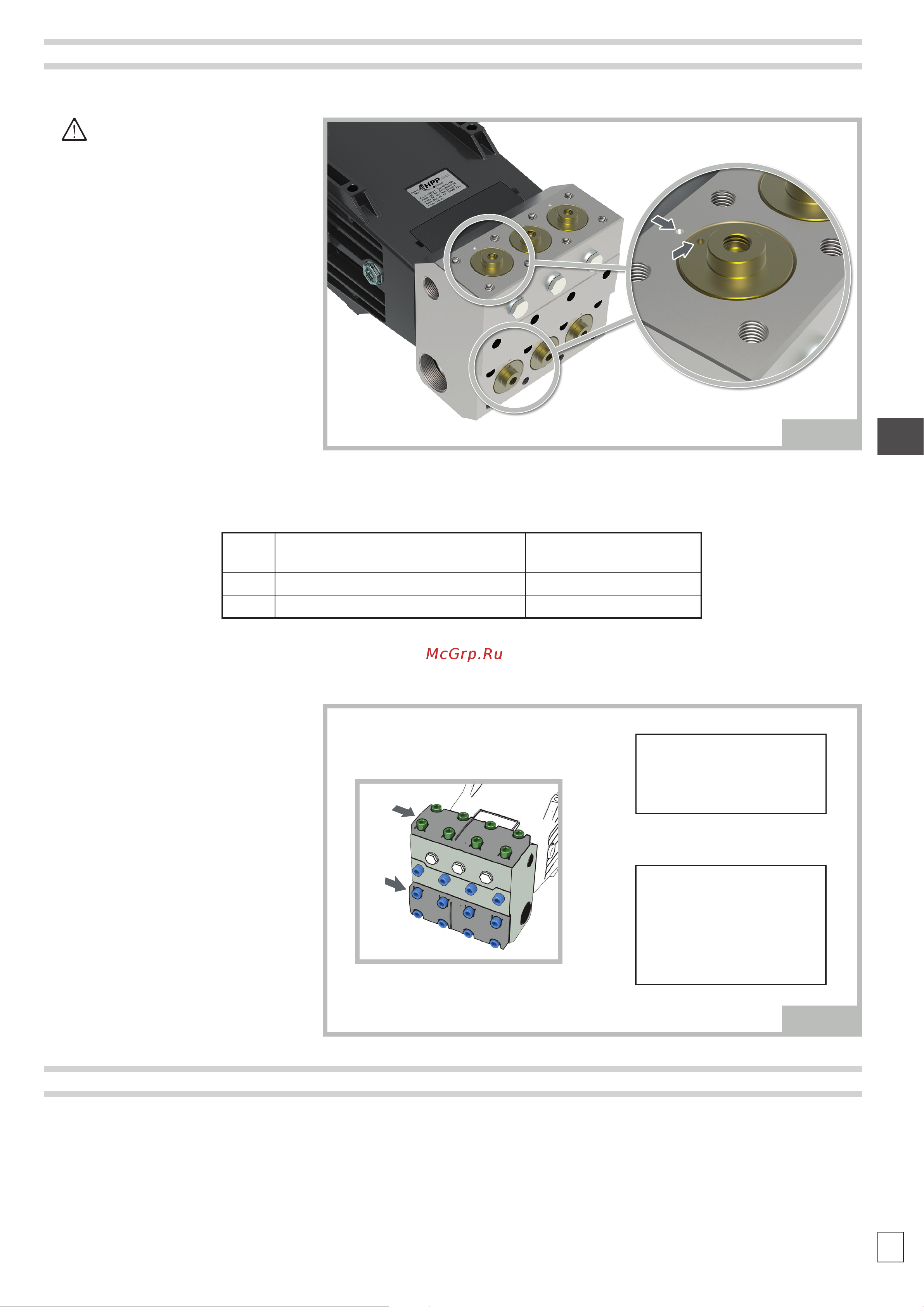

Fig. 14

Fig. 15

SPECIAL MAINTENANCE – REFITTING THE HYDRAULIC PART AND PUMPING ELEMENT

To ret the parts, perform the operations described in the two previous paragraphs in the opposite sequence.

The tightening of the head screws

takes place in two phases, by

complying with the sequence

shown in Figure 15:

Pre-tighten at 40 Nm/29,5 ft·lbs,

then complete the operation by

tightening at 140 Nm/103,2 ft·lbs.

5 3 1 7

8 2 4 6

WARRANTY

The product is covered by a 3 (three) year warranty from the date of delivery, as long as the buyer has complied with

contractual norms.

With regard to warranty acceptance procedures, refer to the general sales conditions.

7 1 4 10

11 5 2 8

9 3 6 12

WARNING

For a correct assembly, the

reference marks on the spacers (8)

have to mate those on the head,

as shown in Figure 14.

CAUTION

• To ret the parts, perform the operations described in the two previous paragraphs in the opposite sequence:

Pos. Description

Tightening torque

Nm (ft·lbs)

2 Valve cover xing screw

40 (29,5)

→ 140 (103,2)

4 Head-casing xing screw

40 (29,5)

→ 140 (103,2)
